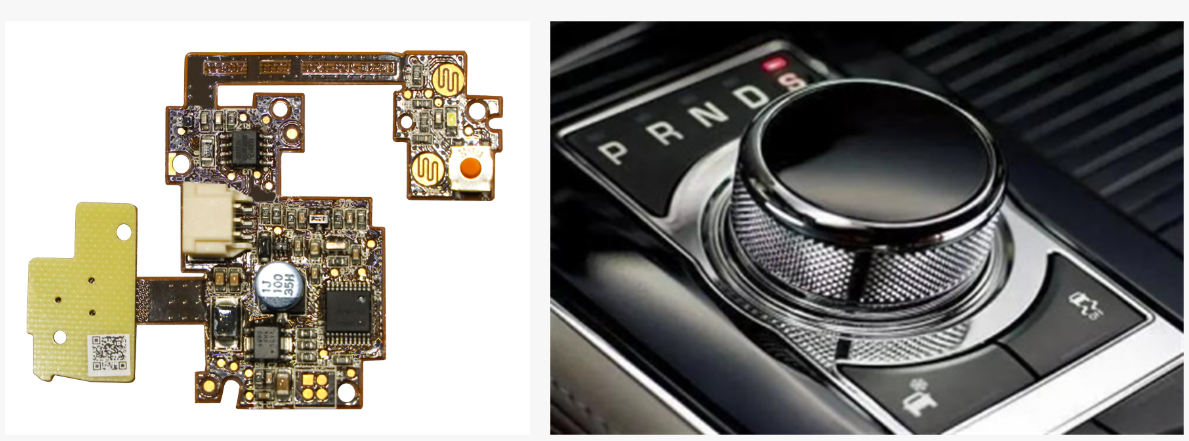

2 layer flex circuit board enig pcb for vehicle Gear Shift Knob

Technical requirements
Product type		Flexible Circuit Board+ Stiffness
Number of layer		2 Layers
Line width and line spacing		0.15MM/0.1MM
Plate thickness		FPC=0.15MM T=1.15MM
Copper Thickness		1OZ
Film Thickness		27.5UM
Surface Treatment		ENIG 2-3Uin
Tolerance Requirements		0.075MM
Stiffness		TG150 epoxy board
Characteristic		Strict Tolerance Requirements, High Precision.
Functional testing		AOI/four-wire/continuity/copper slices
Application Vehicle		BAIC
Application		Car Gear Shift Knob
