Flexible PCB Manufacturing-Pcb Manufacturer, Rigid Flex Pcb, Flexible Pcb

Capel's 15-year flexible circuit board technology expert team

-With our deep expertise and experience, we can meet the specific requirements of our customers in terms of layer count, precision, and flexibility.

-well-versed in flex pcb manufacturing,understand the importance of high precision in flexible circuits boards

Support customized 1-30 layer high-precision flexible pcb circuit board

-advanced technology, equipment, and processes to ensure accurate and reliable production. Our attention to detail, stringent quality control measures, and comprehensive testing help us deliver high-quality flexible PCBs that meet the highest industry standards.

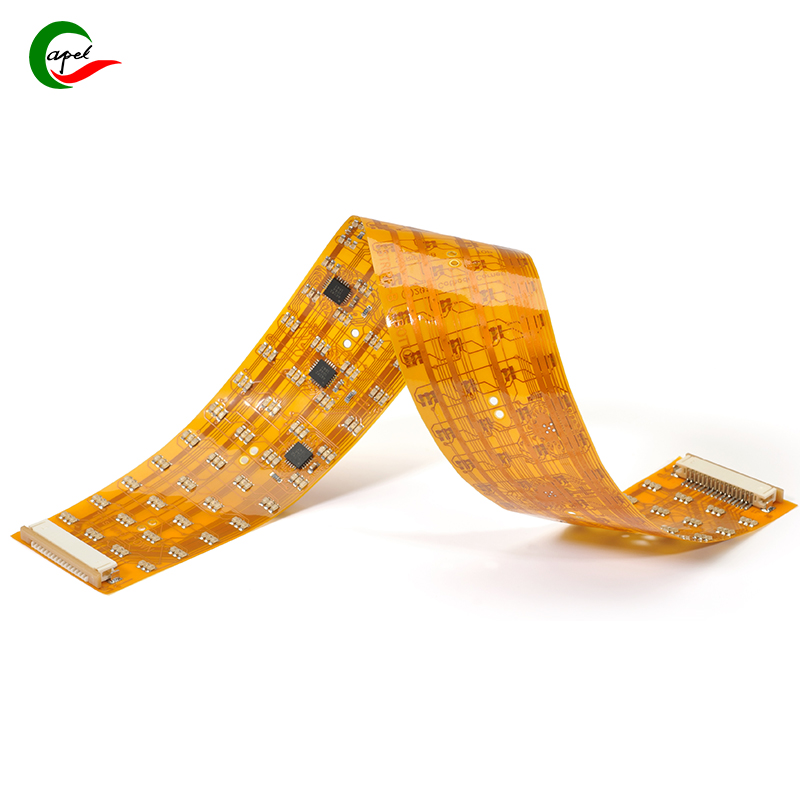

14 layer FPC Flexible Circuit Boards

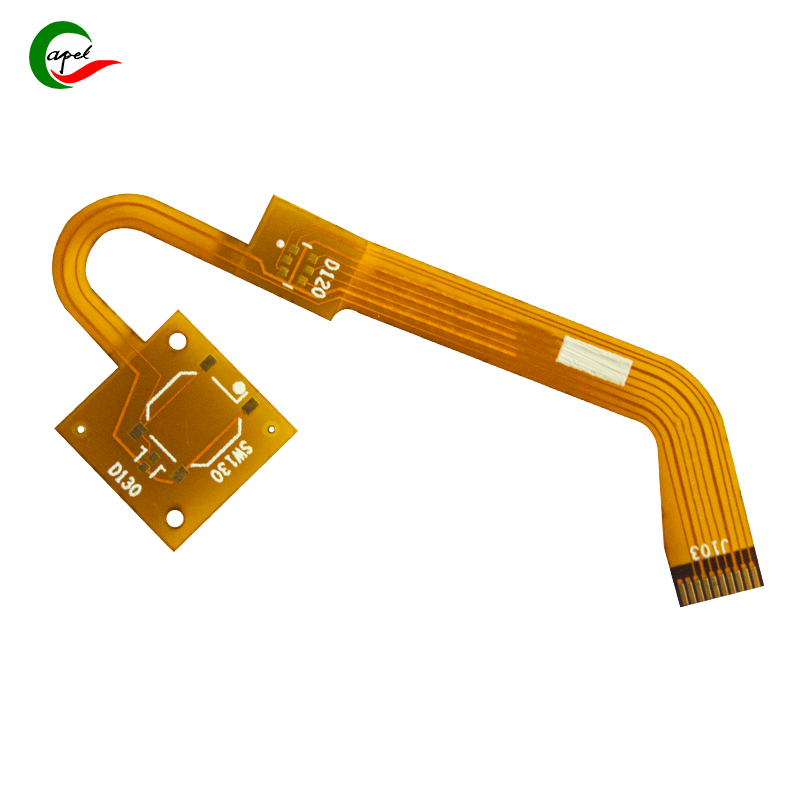

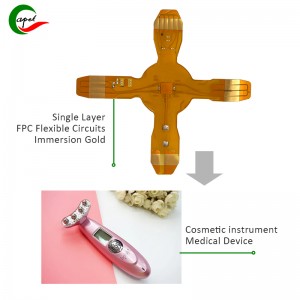

Single-Side Flexible Boards

Single Layer flexible pcb
8 layer Flex Board Pcb

12 layer FPC Flexible PCBs

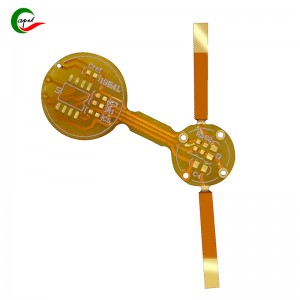

2 layer flexible pcb

2 layer flexible pcb
4 layer Flex PCB Circuit Board

Provide reliable solutions for customers in the wearable devices, medical equipment, aerospace and defense systems, automotive systems, consumer electronics, industrial automation, and telecommunications.

-Customized flexible PCBs that meet their specific requirements;

-Depending on your industry-specific needs, we can provide flexible PCBs with specialized materials such as high-temperature resistant materials for automotive and aerospace applications, as well as medical-grade materials for medical device applications. We also keep updated with the latest flexible PCB manufacturing technologies to meet the evolving demands of these industries.

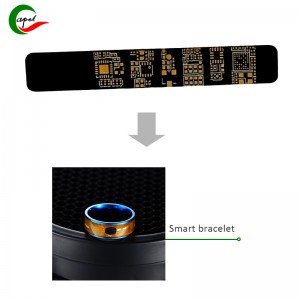

4 layer Flex PCB boards are applied to Smart Bracelet

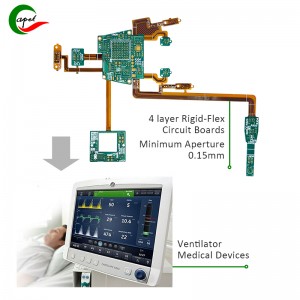

4 layers and 1 level Rigid-Flex Circuit Boards for Ventilator Medical Devices

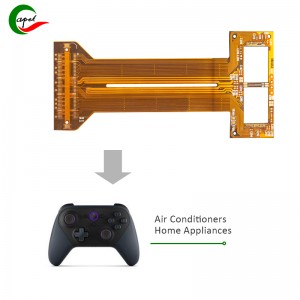

4 layer FPC Flexible PCB Boards are applied to PlayStation Gaming Device
2 Layer Pcb Stackup Flex Circuit applicated in Aerospace Aviation.

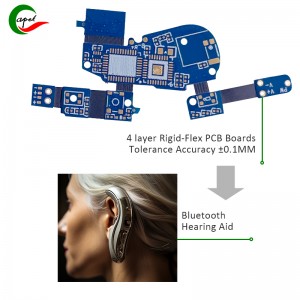

4 layer Rigid-Flex PCB Boards for Bluetooth Hearing Aid
Aesthetic Instrument Medical Device

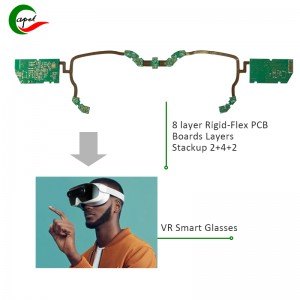

8 layer Rigid-Flex PCB Boards for VR Smart Glasses
2 layer Flexible Printed Circuits are applied to Communication Electronics

Provide expertise and assistance during the design phase, helping customers optimize their designs for functionality, reliability, and cost-effectiveness；

Being able to produce small quantities of flexible PCB prototypes in a timely manner, allowing customers to evaluate and validate their designs before proceeding with mass production;

Maintain detailed documentation throughout the assembly process, including bills of materials (BOMs), assembly instructions, and test records;

On-time delivery(Capel has efficient production planning, effective resource management, and close coordination with customers throughout the manufacturing process.);

Address any concerns or issues that may arise post-delivery and provide prompt technical support or warranty services if required.

Mass Production for Flex PCB Board

Automatic Target Shooting

Flex pcb assembly

Fully automated and high-precision production equipment

-minimize human errors, improve efficiency, and enhance the overall quality of our flexible PCBs.

Monthly production capacity reaches 80,000 square meters

-manage high-volume orders and meet tight production schedules. Whether you require small or large quantities, we can fulfill your order requirements promptly and efficiently.

Continuous innovation of excellent and advanced process technology

-We prioritize innovation and constant improvement in our flexible PCB fabrication process,continuously explores and adopts new and advanced technologies,provide you with cutting-edge solutions and ensure that your flexible PCBs meet the latest technical standards.

-Optimize the manufacturing process to improve efficiency and reduce costs,minimize material waste, shorten lead times, and offer cost-effective solutions to our customers.

Automatic reinforcement

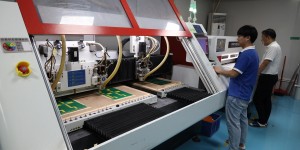

Driiling

DES Line

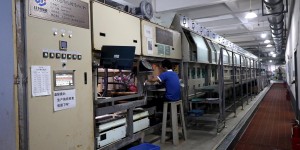

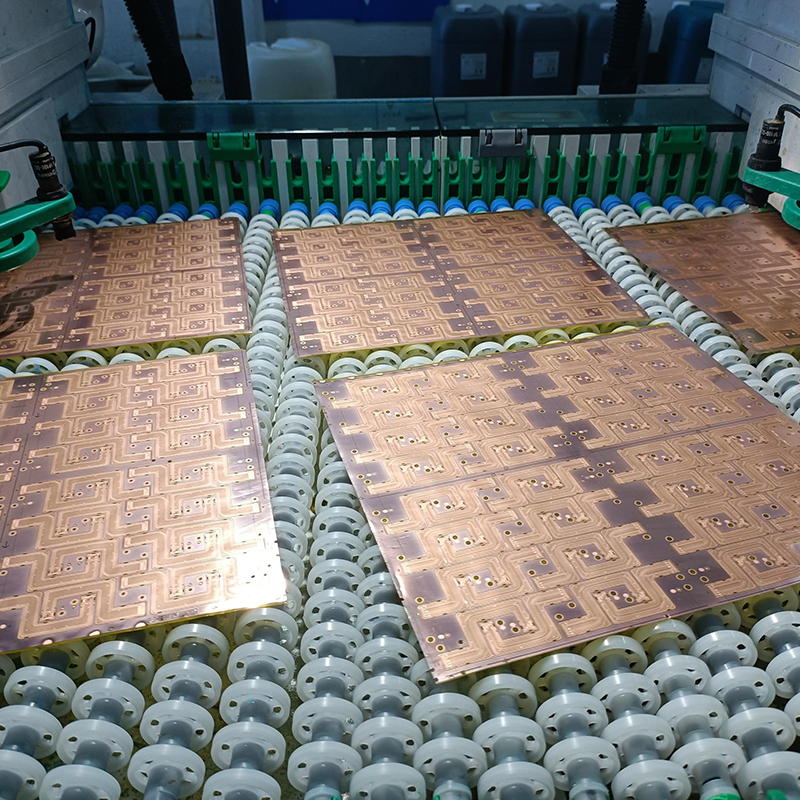

Automatic VCP

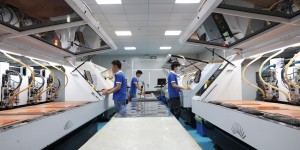

CNC

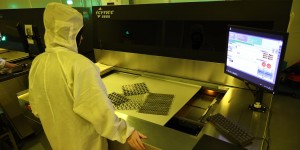

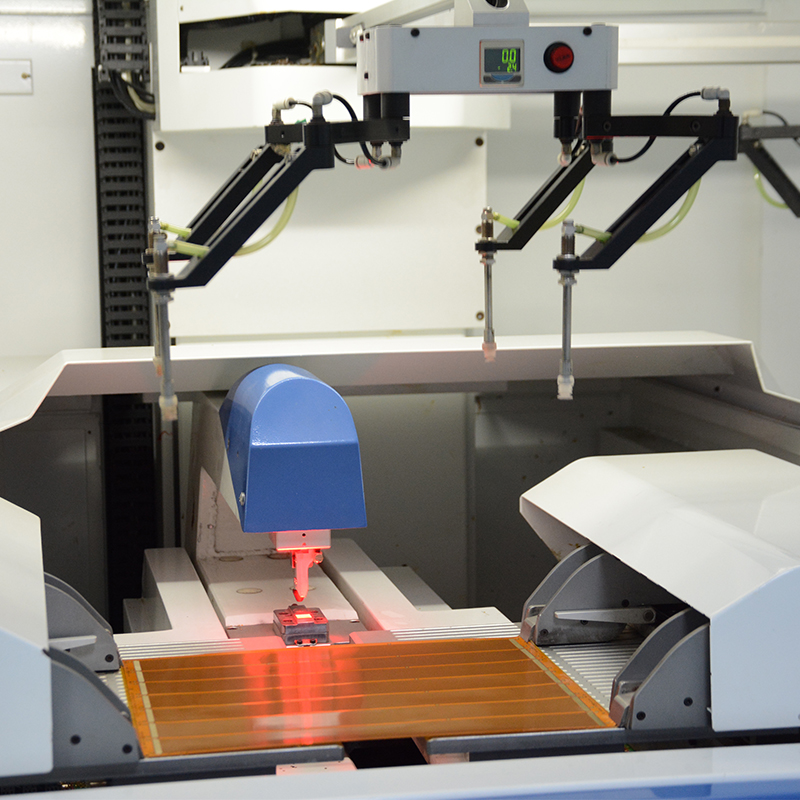

LDI Exposure

Automatic V-cutting
Laser Driiling

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC flex PCB Double layers FPC flec PCB Multilayer FPC Aluminum PCB Rigid-Flex PCB	Layers Number	1-30 layers FPC Flexible PCB 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Doublelayers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/75um/100um /125um / 150um
Board Thickness	FPC0.06mm-04mm Rigid-Flex PCB025-60mm	Tolerance of PTH Size	+0.075mm
Surface Finish	Immersion Gold/mmersion/ Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 /PI/ PET /SUS /PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space width	0.045mm/0.045mm
Thickness Tolerance	+0.03mm	Impedance	500-1200
Copper Foil Thickness	9um/12um /18um /35um /70um/100um	Impedance Controlled Tolerance	+10%
Tolerance ot NPTH Size	+0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	lmplement Standard	GB/IPC-650/PC-6012IPC-01311/IPC-601311
Certifications	ULand ROHS 5014001:2015 IS0 9001:2015 IATF16949:2016	Patents	model patents invention patents

Complete quality control system

- We have implemented a comprehensive quality control system to ensure the highest standards in flexible PCB production(material inspection, process monitoring, product testing, and evaluation)

Our operation is ISO 14001:2015 , ISO 9001:2015, IATF16949:2016 certified

-our commitment to quality management, environmental sustainability, and continuous improvement,our dedication to delivering reliable and high-quality flexible PCBs.

Our products are UL and ROHS marked

-ensures that our flexible PCBs meet safety standards and comply with industry regulations,free from hazardous substances,make them environmentally friendly and safe for use in various applications

Obtained more than 20 utility model patents and invention patents

-our focus on developing unique and creative solutions in flexible PCB manufacturing,Our commitment to innovation ensures that you receive cutting-edge products that meet your specific requirements.

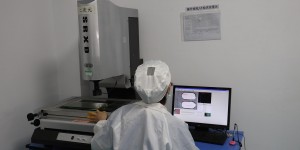

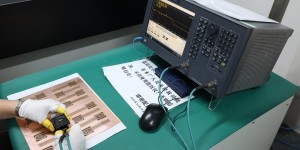

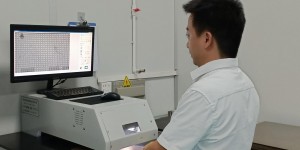

Two-dimensional test
E-Testing

Impedance Tester

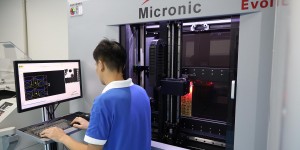

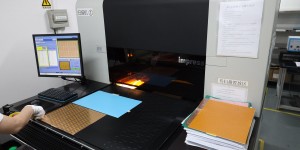

AOI

X-RAY Inspection
Flying Probe Test

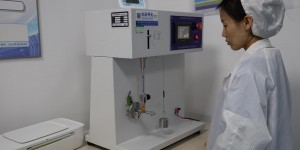

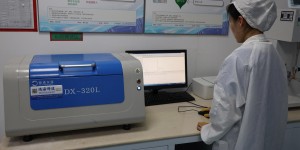

Halogen Tester
Flying Probe Test

24-hour non-stop flexible circuit board prototype production service

Delivery for small batch orders usually takes 5-7 days

Mass production delivery usually takes 10-15 days

Production	Number of layers	Delivery time (business days)
		Samples	Mass Production
FPC	1L	3	6-7
	2L	4	7-8
	3L	5	8-10
	For FPC flexible PCBs with more than 3 layers, add 2 business days for each additional layer
HDI buried blind vias PCB and Rigid-Flex PCB	2-3L	7	10-12
	4-5L	8	12-15
	6L	12	16-20
	8L	15	20-25
	10-20L	18	25-30
SMT: Add an additional 1-2 business days to the above delivery time
RFQ:2 working hours CS:24 working hours
EQ:4 working hours Production capacity: 80000m/month

Instant Quote for Flexible PCB and Flex PCB Assembly
