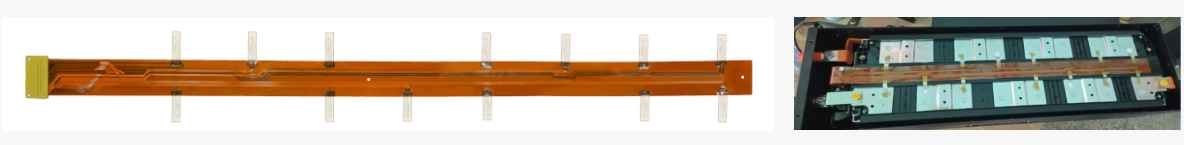

2 Layer Flex PCB ENIG 2-3Uin for Auto New Energy Battery

Technical requirements
Product type		Double-sided Flexible PCB + Pure Nickel Sheet
Number of layer		2 Layers
Line width and line spacing		0.15MM/0.1MM
Plate thickness		FPC=0.15MM T=1.6MM
Copper Thickness		1OZ
Film Thickness		50UM
Surface Treatment		ENIG 2-3Uin
Tolerance Requirements		0.1MM
Size		658*41MM
Characteristic		NickelSheet 0.3mm/PI Film 100um
Functional testing		AOI/four-wire/continuity/copper slices
Application Vehicle		Toyota
Application		New Energy Battery
