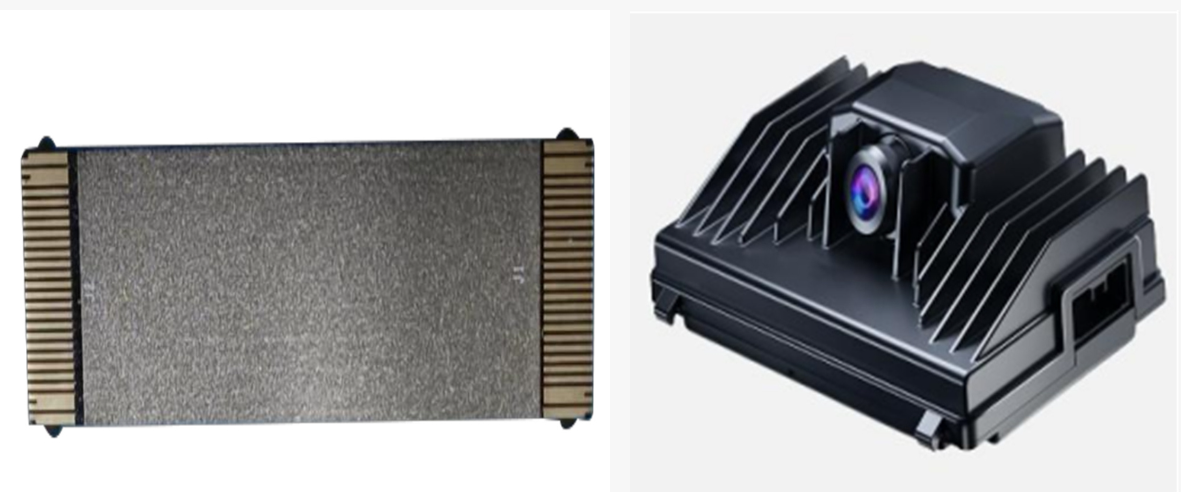

3 layer flex pcb prototype for auto intelligent driving vision system

Technical requirements
Product type		Multilayer Flex PCB
Number of layer		3 Layers
Line width and line spacing		0.15/0.15MM
Plate thickness		0.2MM
Minimum aperture		0.15MM
Hole copper thickness		12-15UM
Surface Treatment		ENIG 2uin
Copper thickness		1OZ
Licensed Materials		EMS120S-200
Characteristic		Electromagnetic conversion action for absorbing noise and reducing interference.
Application Vehicle		Volkswagen
Application		Unmanned Vehicle Vision System
