Short Description:

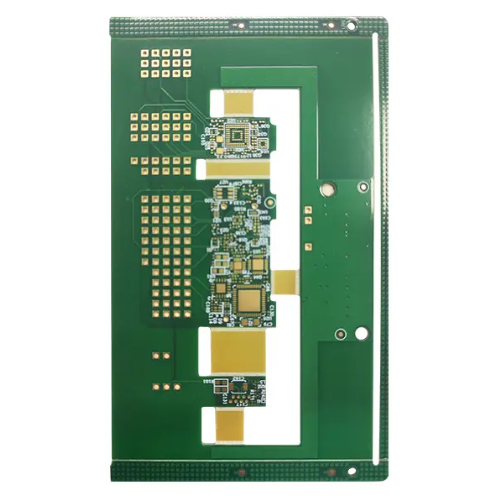

Product Type: 8 layer HDI Second-Order Flex-Rigid PCB

Applications: Automotive
Material: PI,Copper,adhesive,FR4
Line width and line spacing：0.1mm/0.1mm
Board thickness：1.0mm +/- 0.03mm
Minimum hole:0.1mm
Blind hole: L1-L2,L7-L8
Buried hole:L2-L3,L4-L5,L6-L7
Plating hole filling: Yes
Surface Treatment:ENIG 2-3uin

Impedance:/

Tolerance tolerance:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

Introducing our latest product, high-density HDI second-level 8-layer – HDI PCB – buried blind via rigid-flex board. This innovative and reliable solution is designed specifically for the electric vehicle industry.

Made from materials such as PI, Copper, Adhesives and FR4, our PCBs are engineered to meet the demanding requirements of automotive applications. With a thickness of 1.0mm +/- 0.03mm and a minimum hole diameter of 0.1mm, our PCB boards provide the durability and precision required for automotive electronics.

One of the key features of our products is the inclusion of blind and buried vias. Blind vias (L1-L2, L7-L8) and buried vias (L2-L3, L4-L5, L6-L7) enable more complex and compact designs, while plated hole filling ensures the integrity of connections within the PCB.

Additionally, our PCBs are ENIG treated and are 2-3uin thick, providing a protective and reliable surface finish. Our PCB line widths and spacing are 0.1mm/0.1mm, providing the precision and accuracy required in automotive electronics.

High Density HDI Second Order 8 Layer – HDI PCB – Buried Blind Via Soft Rigid PCB is designed to provide a reliable solution for electric vehicle applications. As electric vehicles continue to grow in the automotive industry, the demand for advanced, durable electronic components increases. Our PCBs are designed to meet these needs, providing reliable and efficient solutions for electric vehicle applications.

In addition to rugged construction, our PCBs feature ±0.1mm tolerances, ensuring consistency and precision in the manufacturing process. This level of accuracy is critical to the performance and reliability of automotive electronic systems.

Overall, our high-density HDI second-order 8-layer – HDI PCB – buried blind via rigid-flex board is a cutting-edge solution for the electric vehicle industry. With its advanced features and durable structure, it is able to meet the changing needs of automotive electronics and provide reliable and efficient solutions for electric vehicle applications.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
