Short Description:

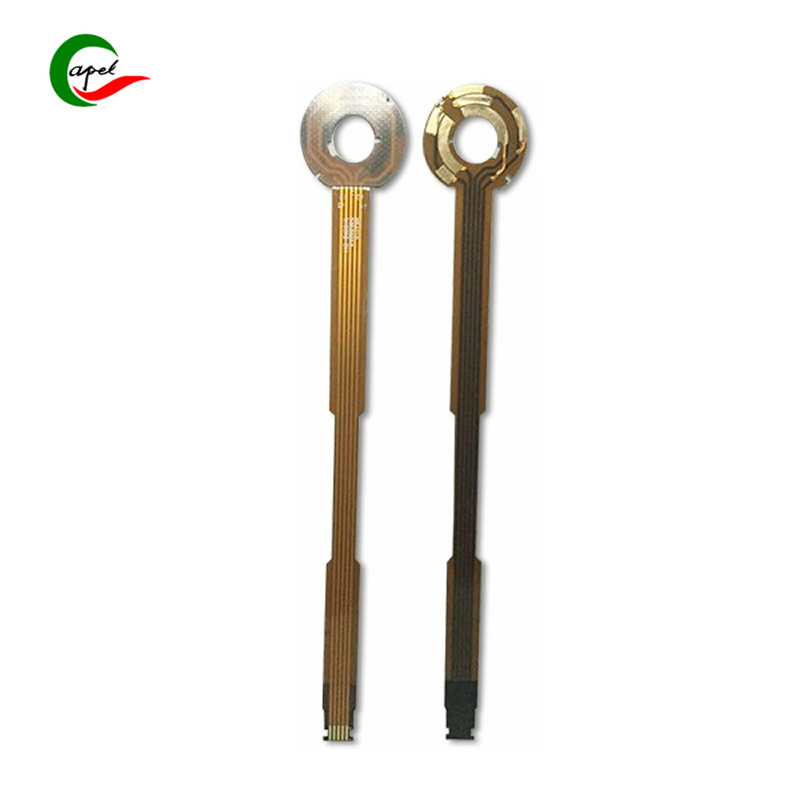

Product Type: 2 layer Flex PCB
Applications: Car
Material: PI,Copper,adhesive
Line width and line spacing：0.2mm/0.2mm
Board thickness：0.23mm +/- 0.03mm
Minimum hole:0.1mm
Surface Treatment:ENIG 2-3uin

Impedance:/

Tolerance tolerance:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

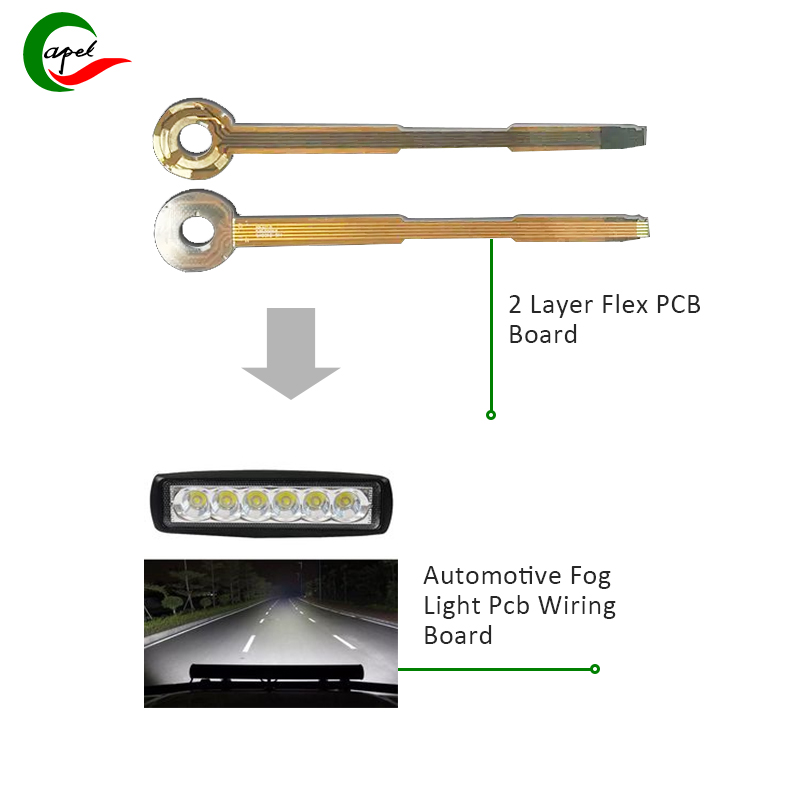

2-layer flexible printed circuit board (FPC) solution for automotive fog lights
-Capel with 15 years of professional technical experience-

In the automotive industry, 2-layer flexible printed circuit board (FPC) solutions are critical to ensuring efficient and safe operation of various vehicle components. One application of this technology is the production of automotive fog lights. These lights play a vital role in improving visibility and safety in adverse weather conditions, and using a 2-layer FPC solution helps ensure their reliability and performance.

At Shenzhen Capel Technology Co., Ltd, we specialize in providing high-quality 2-layer flexible PCB solutions for automotive fog lights. Our FPC boards are designed to meet the specific requirements of automotive applications, providing a durable and flexible solution for integration into fog light systems.

Our 2-layer flexible PCBs are constructed using a combination of materials such as PI, copper, and adhesives to ensure the necessary mechanical and electrical properties for reliable performance in automotive environments. With a board thickness of 0.23mm +/- 0.03mm and a minimum aperture of 0.1mm, our FPC is designed to meet the compact design requirements of fog lights while maintaining strong structural integrity.

In addition to the physical structure, our 2-layer flexible PCBs are surface treated with ENIG (Electroless Nickel Immersion Gold) to provide excellent corrosion resistance and solderability. This surface treatment increases the reliability and service life of the FPC, ensuring consistent performance in automotive fog light applications.

In addition, our FPCs are manufactured to precise line width and line spacing specifications of 0.2mm/0.2mm with a tolerance of ±0.1mm, ensuring high accuracy and consistency of fog light signal transmission. This level of precision is critical to maintaining the functionality and safety of automotive lighting systems.

Regarding impedance control, our 2-layer flexible PCBs are designed to meet the specific impedance requirements of automotive fog lights, ensuring optimal electrical performance and signal integrity. Focused on quality and reliability, our FPC solutions are tested and inspected to meet the highest standards for automotive applications.

In summary, our 2-layer flexible printed circuit board (FPC) solution is ideal for automotive fog lights, providing a reliable, high-performance solution for integration into these critical vehicle components. We focus on quality, precision, and reliability and are committed to providing FPC that meets the strict requirements of the automotive industry to ensure customer safety and satisfaction. Contact us today to learn more about our 2-layer flexible PCB solutions for automotive fog lights.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
