Single-Sided Fr4 PCB Manufacturer Rogers Pcb
Short Description:

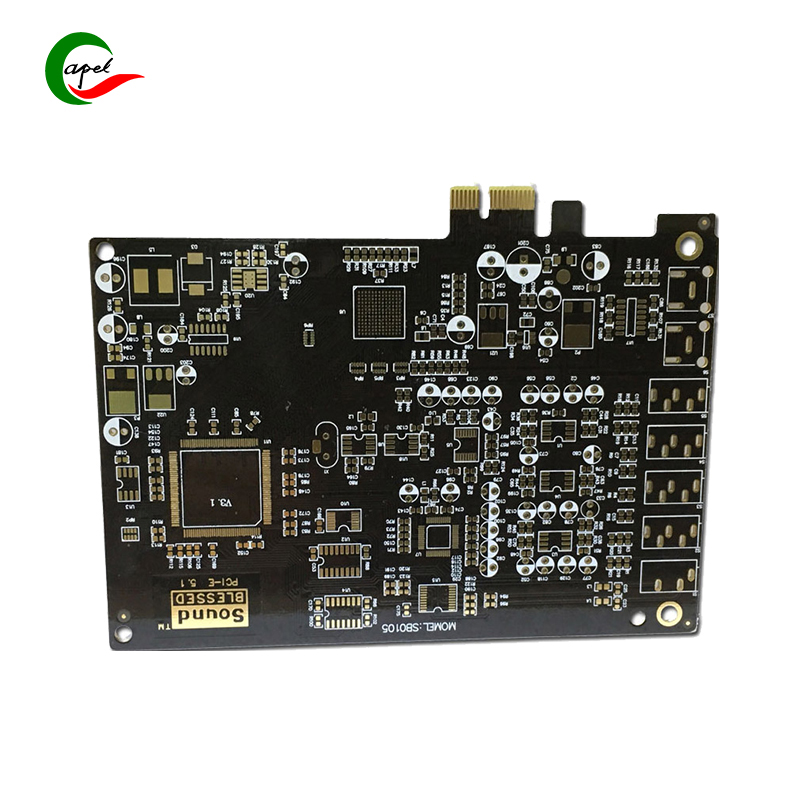

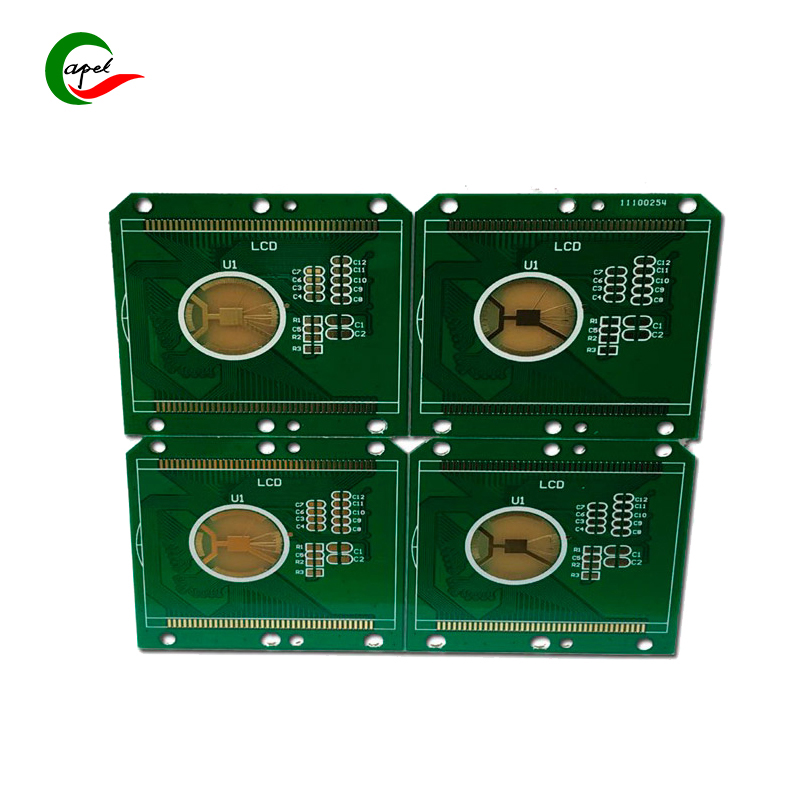

Model: 1 layer FR4 Circuit Board
Product application: UVA
Board Layers: 1 layer
Base material: FR4
Inner Cu thickness:/
Outer Cu thickness: 70um
Solder mask color: Green
Silkscreen color: White
PCB thickness: 1.6mmm +/-10%
Min Line width/space: 0.2/0.2mm
Min hole: 0.25mm
Surface treatment: LF HASL
Blind hole:/
Buried hole:/
Hole tolerance(nm): PTH: 士0.076, NTPH: 士0.05
Impedance:/
PCB Process Capability
|
No.
|
Project
|
Technical indicators
|
|
1
|
Layer
|
1－60(layer)
|
|
2
|
Maximum processing area
|
545 x 622 mm
|
|
3
|
Minimumboardthickness
|
4(layer)0.40mm
|
|
6(layer) 0.60mm
|
|
8(layer) 0.8mm
|
|
10(layer)1.0mm
|
|
4
|
Minimum line width
|
0.0762mm
|
|
5
|
Minimum spacing
|
0.0762mm
|
|
6
|
Minimum mechanical aperture
|
0.15mm
|
|
7
|
Hole wall copper thickness
|
0.015mm
|
|
8
|
Metallized aperture tolerance
|
±0.05mm
|
|
9
|
Non-metallized aperture tolerance
|
±0.025mm
|
|
10
|
Hole tolerance
|
±0.05mm
|
|
11
|
Dimensional tolerance
|
±0.076mm
|
|
12
|
Minimum solder bridge
|
0.08mm
|
|
13
|
Insulation resistance
|
1E+12Ω（normal）
|
|
14
|
Plate thickness ratio
|
1:10
|
|
15
|
Thermal shock
|
288 ℃（4 times in 10 seconds）
|
|
16
|
Distorted and bent
|
≤0.7%
|
|
17
|
Anti-electricity strength
|
＞1.3KV/mm
|
|
18
|
Anti-stripping strength
|
1.4N/mm
|
|
19
|
Solder resist hardness
|
≥6H
|
|
20
|
Flame retardancy
|
94V-0
|
|
21
|
Impedance control
|
±5%
|

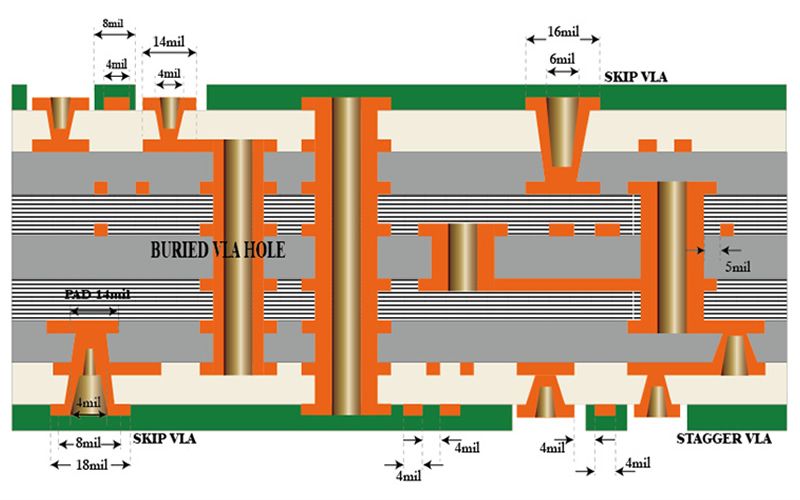

We Do HDI Circuit Board With 15 Years' Experience With Our Professionalism

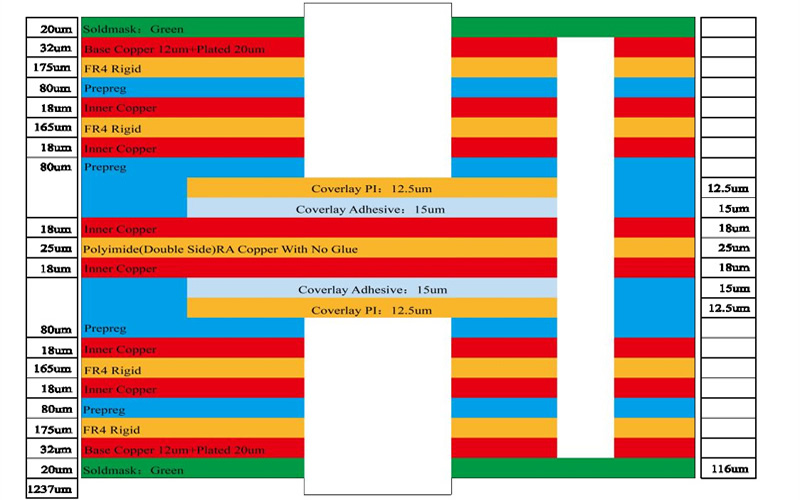

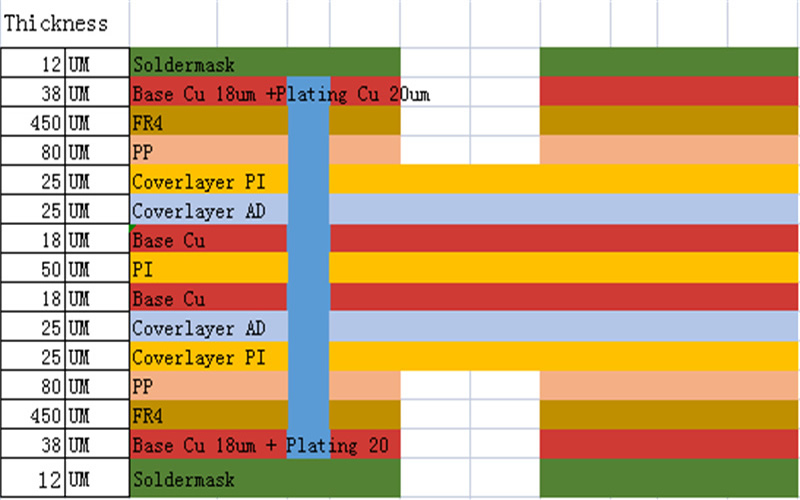

4 layer Flex-Rigid Boards

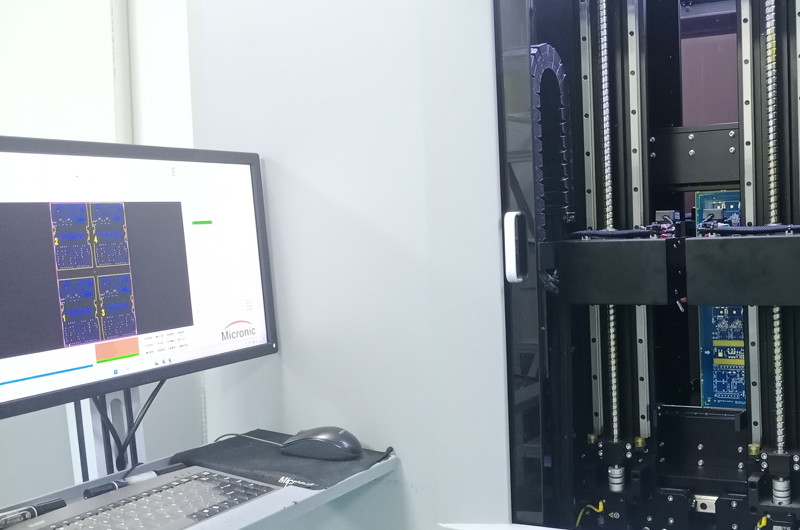

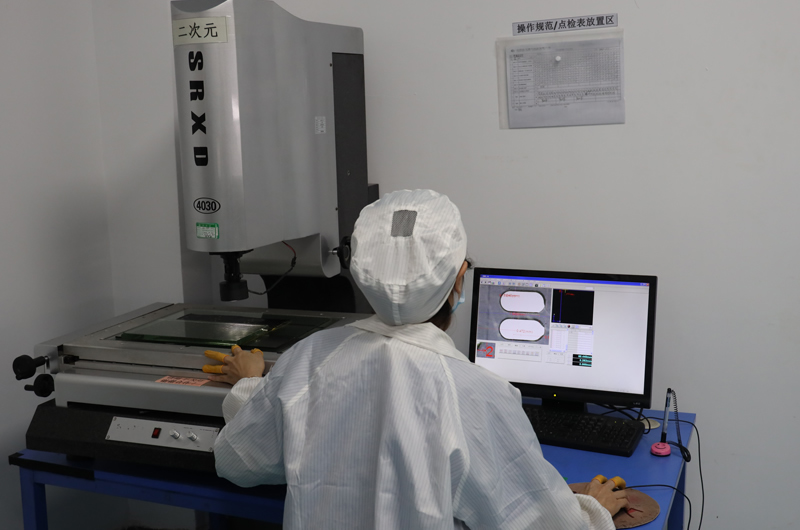

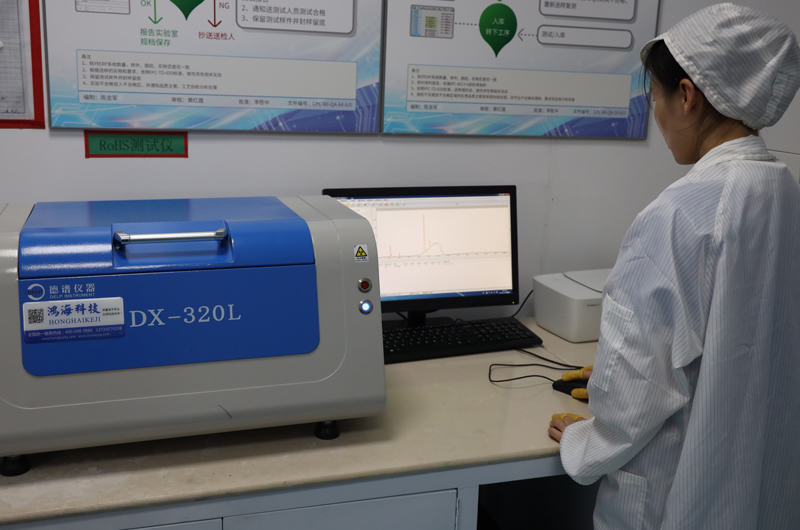

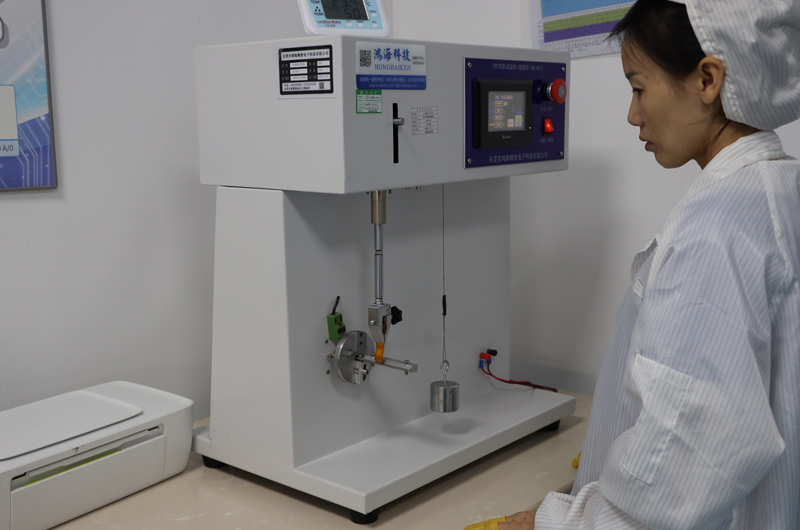

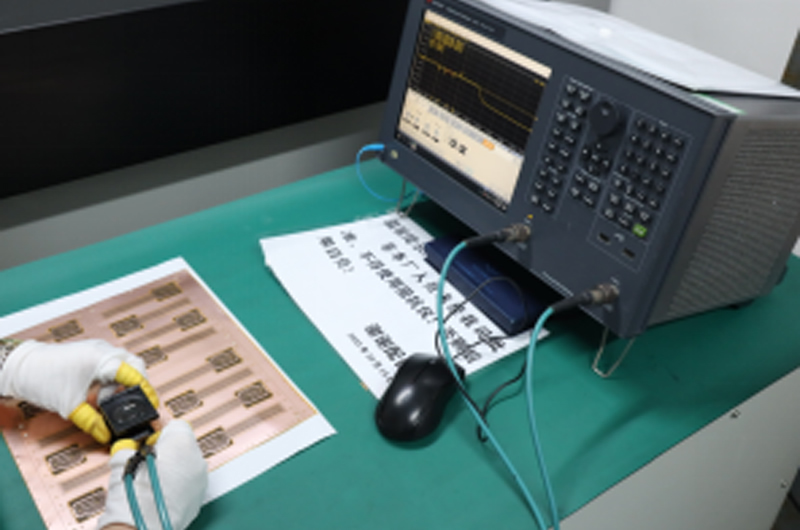

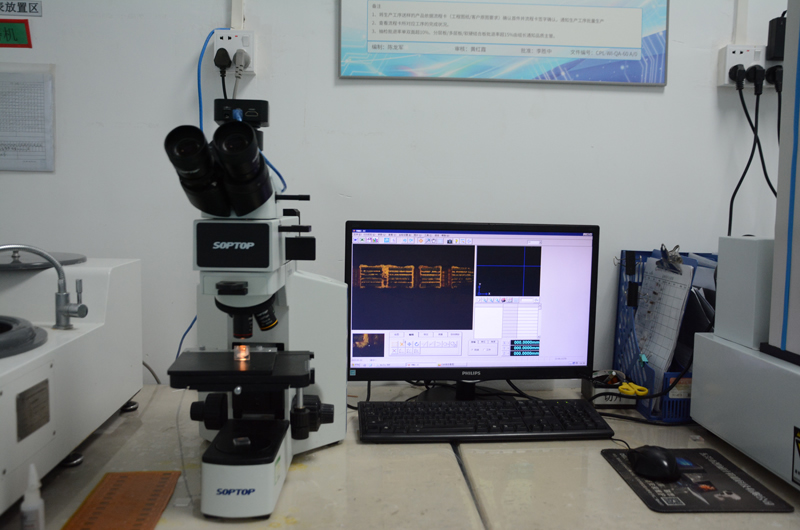

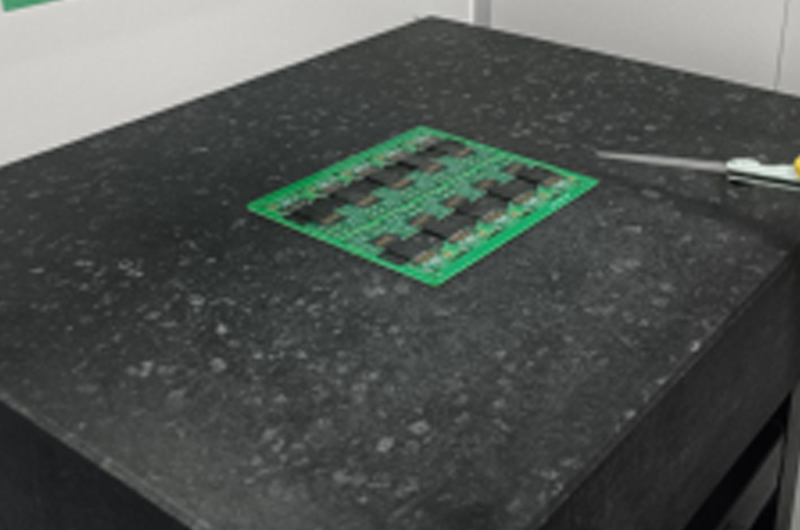

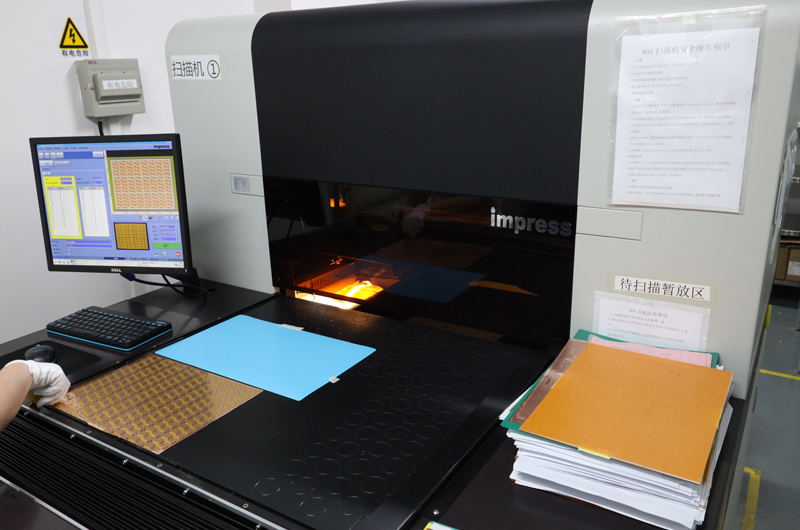

Testing And Inspection Equipment
Our HDI Circuit Board Service
. Provide technical support Pre-sales and after-sales;
. Custom up to 40 layers, 1-2days Quick turn reliable prototyping, Component procurement, SMT Assembly;
. Caters to both Medical Device, Industrial Control, Automotive, Aviation, Consumer Electronics, IOT, UAV, Communications etc.
. Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
How to choose Single-sided fr4 PCB manufacturer?
1. Quality and reliability:
- Look for a manufacturer with a solid reputation for producing high-quality PCBs. View customer reviews, testimonials, and references (where available).
- Ensure manufacturers follow industry standards and certifications (eg ISO 9001) to ensure a consistent quality control process.
- Consider their track record of delivering reliable products on time and meeting customer specifications.
2. Manufacturing capacity and technology:
- Assess their manufacturing capabilities, including their equipment, facilities and technical expertise.
- Check that they have the necessary capabilities to handle your specific PCB requirements such as size, thickness and material specifications.
- Ask about their ability to handle various finish options and solder mask colors.
3. Design support and service:
- Evaluate whether the manufacturer offers design support or engineering services to help you optimize your PCB design.
- Check their ability to provide design reviews or provide design for manufacturability (DFM) analysis for early detection of potential issues.
- Consider their ability to handle design modifications or revisions throughout the manufacturing process.
4. Pricing and Quotation:
- Request quotes from multiple manufacturers and compare their prices.
- Beware of low prices as this may indicate quality issues or insufficient manufacturing capacity.
- Seek transparency on pricing, including any additional costs for tooling, setup, or expedited production.
5. Manufacturing lead time:
- Determine typical production and delivery lead times for manufacturers.
- Find out about their manufacturing capabilities and whether they can meet your desired production schedule or any potential urgency.
6. Customer Support and Communication:
- Assess the manufacturer's responsiveness and ability to address your inquiries, concerns or issues in a timely manner.
- Consider their availability and willingness to provide support and information throughout the manufacturing process.
- Find effective communication channels such as email, phone or live chat.
7. Additional services:
- Determine if the manufacturer offers additional services such as PCB assembly, testing, or component sourcing (if required).
- Evaluate the availability of value-added services such as design verification, functional testing or product packaging.
