The promise of 5G is breathtaking: multi-gigabit speeds, near-instantaneous response, and a hyper-connected world. But for the engineers designing the devices that make this possible, 5G presents a monumental challenge. It’s not just about faster processors; it’s about fundamentally rethinking how we guide invisible, high-frequency radio waves through the guts of a smartphone, a base station, or a wearable.

At the heart of this challenge is the printed circuit board (PCB). The humble PCB, once just a passive platform for components, is now a critical active component of the RF signal chain. This is where Flexible PCBs (FPCs) and Rigid-Flex boards shine—or fail. So, how do these technologies meet the extreme demands of 5G? Let's break it down.

1. The 5G Gauntlet: Why Standard PCBs Fall Short

5G operates in two key frequency ranges: Sub-6 GHz (3.5 - 7 GHz) and millimeter-wave (mmWave, 24 GHz and above). As frequencies skyrocket, signals behave less like ideal electrons and more like finicky waves. This introduces three show-stopping problems:

• Dielectric Loss (Df): At high frequencies, the insulating substrate material (dielectric) starts to absorb signal energy, converting it into waste heat. This is dielectric loss, and it brutally attenuates your signal before it reaches the antenna.

• Conductor Loss: Skin effect becomes dominant. Electrons are forced to travel only on the outer "skin" of the copper trace, dramatically increasing effective resistance and causing conductor loss. A rough copper surface exacerbates this.

• Impedance Instability: Any variation in trace width, distance to the ground plane, or material consistency causes impedance discontinuities. At mmWave frequencies, even a tiny mismatch acts like a brick wall, reflecting signals and causing disastrous signal integrity issues like insertion loss and return loss.

Rigid FR-4 PCBs, with their lossy substrates and variable properties, simply cannot handle this. This is the arena for advanced FPC and Rigid-Flex materials.

2. The Material Revolution: It's All About the Laminate

The first and most critical choice is the material system. Forget standard FR-4; 5G demands high-performance laminates.

• Low-Dk (Dielectric Constant) & Low-Df (Dissipation Factor): This is the holy grail. A stable, low Dk ensures consistent impedance and prevents signal propagation delays. An ultra-low Df is non-negotiable to minimize dielectric loss. Advanced flexible materials like modified polyimide (MPI) and, for the most demanding mmWave applications, liquid crystal polymer (LCP) are the heroes here.

  • LCP is a game-changer: it boasts exceptionally low and stable Dk/Df, is nearly hermetic (blocking moisture ingress), and is inherently flexible. It's the ideal material for mmWave antenna arrays embedded in phone bezels or housings.

• Ultra-Smooth Copper: To combat conductor loss, manufacturers use rolled annealed (RA) copper with an ultra-low profile surface. A smoother surface reduces skin effect losses, allowing more signal to travel efficiently.


3. The Precision Engineering: Design and Fabrication for GHz Speeds

Having the right materials is only half the battle. How you use them is everything.

• Controlled Impedance is King: Every single trace carrying an RF signal must be precision-engineered as a controlled impedance transmission line—usually microstrip or stripline. This requires:

  • Laser Direct Imaging (LDI): To achieve the ultra-fine trace widths and tolerances needed for mmWave circuits, photolithography with LDI is essential. It eliminates the distortion common in traditional contact printing.

  • Tight Tolerances: Variations in trace width or spacing must be microscopic. A deviation of just a few microns can throw off the impedance at 28 GHz.

• The Ground Plane Shield: A continuous, unbroken ground plane adjacent to the signal trace is not a suggestion; it's a mandate. It provides the critical return path, contains the electromagnetic fields, and shields the signal from external noise. In Rigid-Flex, this means meticulous planning of the stack-up to ensure the ground reference is always present.

• Via Management: The Devil in the Details: Vias are necessary evils. They are inherently inductive and cause impedance discontinuities.

  • Use Back-Drilling: For deep vias, back-drilling removes the unused portion of the copper barrel (the stub), which acts as a resonant antenna at high frequencies.

  • Via-in-Pad: This technique, where a via is placed directly in the component pad and filled with conductive epoxy, minimizes inductance and is crucial for placing large BGAs and RF ICs.

4. The Structural Advantage: Why FPC and Rigid-Flex are Uniquely Suited for 5G

Beyond materials and precision, the physical form of these boards is their superpower.

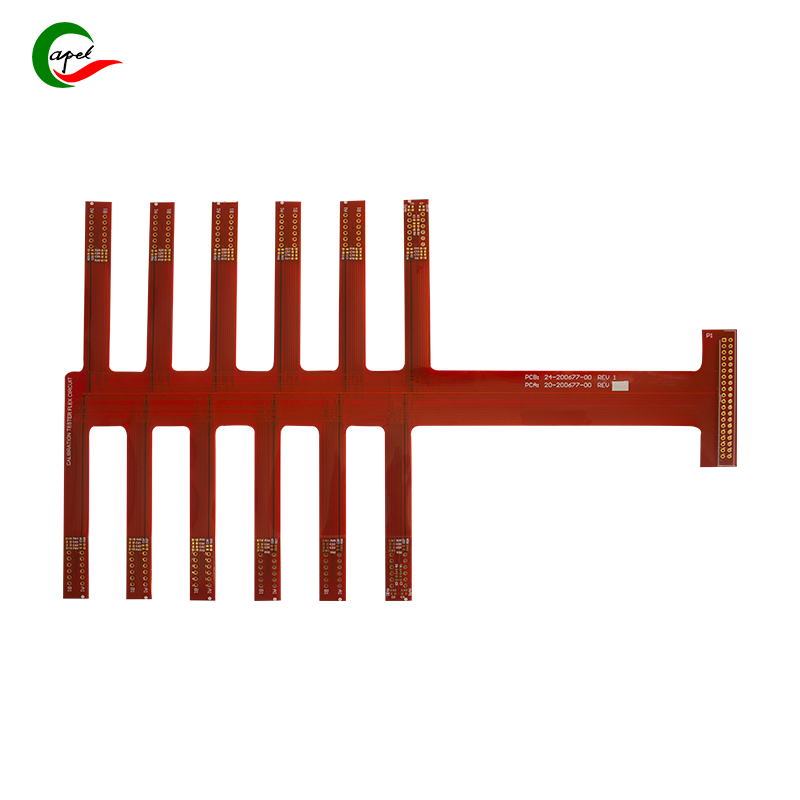

• 3D Integration and Space Savings: 5G devices are packed. FPCs can be folded and bent into the tight, awkward spaces around batteries and displays, enabling complex 3D antenna arrays that would be impossible with rigid boards. This is critical for implementing Massive MIMO and beamforming in handsets.

• Fewer Connectors, Fewer Problems: A single Rigid-Flex board can replace multiple rigid boards connected by coaxial cables and connectors. Every connector is a potential point of impedance mismatch and signal loss. By eliminating them, Rigid-Flex creates a more reliable and higher-performing RF pathway from the modem to the antenna.

• Thermal Management: High-frequency circuits generate heat. Polyimide and LCP have good thermal stability, allowing them to dissipate heat effectively and maintain performance under load.

Conclusion: The Invisible Enabler

The leap to 5G isn't just visible in the speed test on your phone. It's hidden in the intricate, precision-engineered layers of advanced FPCs and Rigid-Flex boards. These technologies are not merely convenient; they are fundamental enablers of high-frequency performance.

They meet 5G's demands through a trifecta of:

1. Advanced Materials: Low-loss laminates like MPI and LCP.

2. Precision Fabrication: Tight-tolerance, controlled impedance lines and sophisticated via techniques.

3. Structural Superiority: 3D packaging and connector elimination.

For product designers, the lesson is clear: successful 5G design requires partnering with PCB fabricators early. It's a co-engineering effort where the board is not an afterthought but a central component of the RF system. The highway for 5G's data is built not of asphalt, but of polyimide and copper, etched with microscopic precision.
