If you’ve ever watched a tech YouTuber build a glowing gadget, you’ve probably seen a rectangular white plastic board filled with tiny holes. That’s a breadboard. It’s the ultimate playground for anyone who wants to build electronics without the commitment (or the burnt fingers) of soldering.

But how does a breadboard work? Let’s crack one open—figuratively—and see why pushing a wire into a hole suddenly makes things light up.

1. The "Secret" Inside the Plastic

On the outside, a breadboard looks like a simple grid of holes. But the magic is underneath. If you were to peel off the sticky back, you’d see rows of metal clips.

When you push a wire or a component pin into a hole, you’re actually jamming it between the "teeth" of a tiny metal claw. These clips are made of conductive material (usually a copper alloy), which allows electricity to flow from one wire to another as long as they are plugged into the same metal strip.

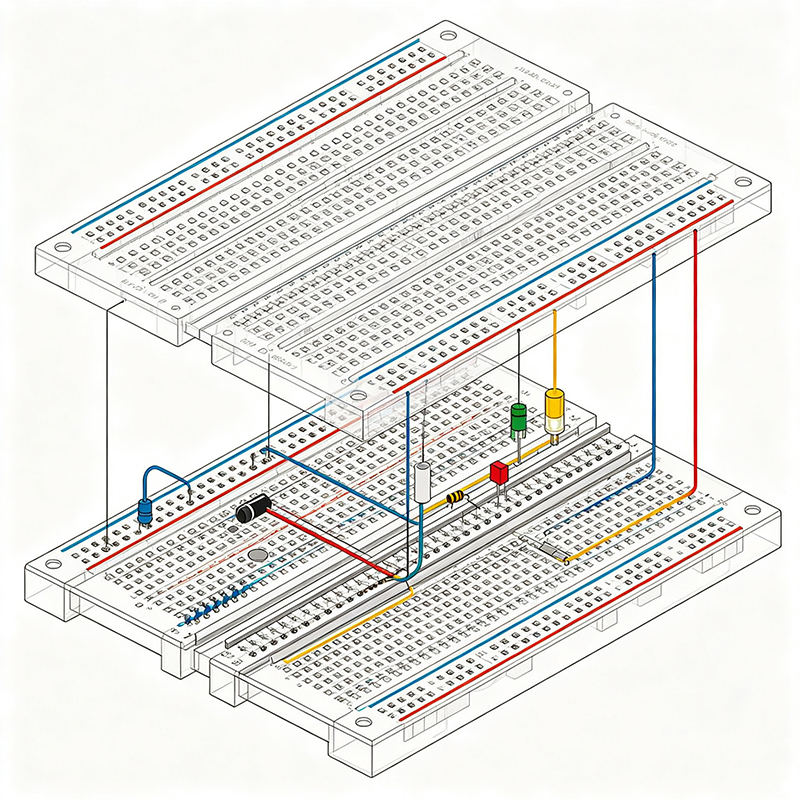

2. Understanding the Layout: Rows and Columns

The most important thing to learn about a breadboard is which holes are "talking" to each other.

• The Power Rails (The Long Sideways Rows): Look for the red (+) and blue (-) lines on the edges. These holes are connected horizontally in long strips. Think of these as the "main water pipes" providing power to your entire project.

• The Terminal Strips (The Middle Holes): These are the holes where you put your chips and LEDs. These are connected vertically in groups of five.

• The Ravine (The Center Gap): See that notch running down the middle? It’s not just for looks. It breaks the electrical connection between the two sides, which is perfect for plugging in Integrated Circuits (ICs) so the pins on the left don't short out with the pins on the right.


3. Why Use One? (The "No-Regrets" Policy)

Before we move to permanent solutions like Flex PCBs or Rigid-Flex boards, engineers use breadboards to "fail fast." If you plug an LED in backward, you just pull it out and flip it. No harm done. It’s the "Draft Mode" of hardware engineering.

4. Pro Tips for Troubleshooting

Even though they are simple, breadboards can be finicky.

• Keep it Tidy: Using 2-foot long jumper wires for a 1-inch connection is a recipe for a "nest of snakes" that’s impossible to debug.

• Watch the Current: Breadboards are great for low-power signals, but don't try to run a high-power motor through those tiny clips—they’ll melt!

• The "Dead Zone": On some very long breadboards, the power rails are split in the middle. If your circuit is dead halfway down the board, check if you need to add a small jumper wire to bridge the gap.
