You’ve probably seen two types of circuit boards: stiff, green rigid boards that don’t bend, and thin, orange flexible circuits that fold like paper. But what if you need both in one product? What if you want a rigid area for a processor and connectors, and a flexible tail that bends around a hinge or fits into a tight space? That’s exactly what a rigid flex PCB does.

Rigid flex PCBs (sometimes written as rigid‑flex) are hybrid boards that combine rigid FR4 sections and flexible polyimide tails into a single, seamless circuit. No connectors, no cables, no wiring harnesses – just one board that can fold, twist, and still hold heavy components securely.

Let’s dive into what rigid flex PCBs are, why they’re becoming so popular, and how they can help you build smaller, lighter, and more reliable products.

What Is a Rigid Flex PCB?

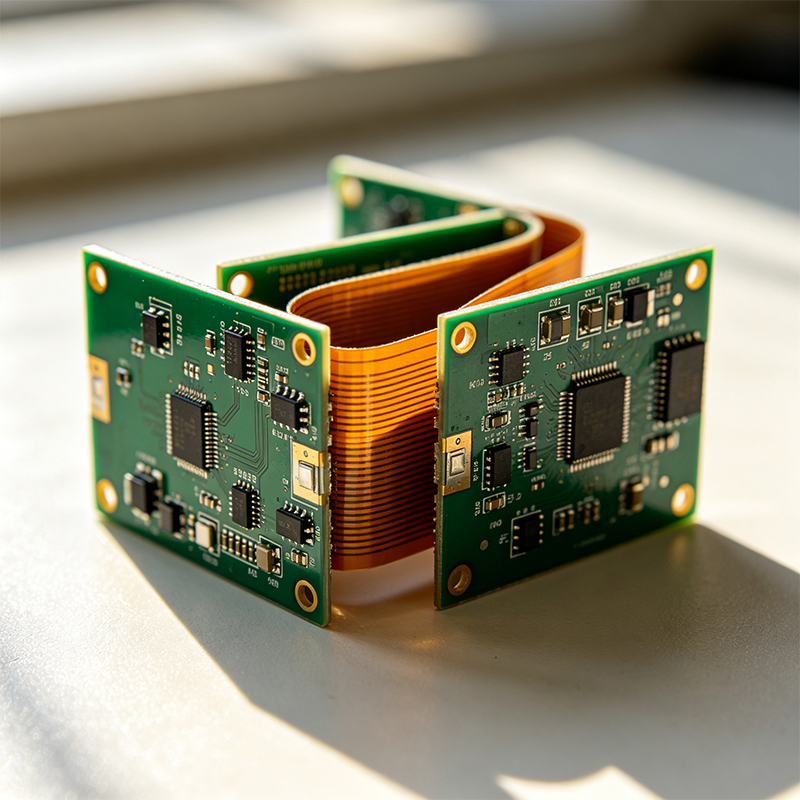

A rigid flex PCB is a printed circuit board that contains both rigid sections (usually made of FR4 fiberglass) and flexible sections (made of polyimide film). The rigid parts are where you place heavy components like processors, connectors, and large capacitors. The flexible parts act like living hinges – they can bend, fold, and twist without breaking.

The flexible and rigid layers are laminated together during manufacturing, creating one continuous board. You don’t need to connect separate boards with cables or connectors. The flexible tail is part of the same board.

Think of it like a spine: the rigid sections are the vertebrae (stiff, strong), and the flexible sections are the cartilage between them (bendable, durable).

Why Choose a Rigid Flex PCB Over Separate Boards + Cables?

Here are the big advantages:

1. Eliminate connectors – Every connector is a potential failure point. Connectors can corrode, loosen from vibration, or wear out after repeated mating. A rigid flex board replaces two connectors and a cable with a single, solid circuit. Fewer parts = fewer things that can break.

2. Save space – Connectors and cables take up volume. A flexible tail can be incredibly thin (0.1mm or less) and can snake through narrow gaps. This is especially valuable in foldable phones, laptops, and wearable devices.

3. Reduce weight – A flexible tail weighs much less than a bundle of wires and plastic connectors. For drones, aerospace, and portable medical devices, every gram matters.

4. Improve reliability – No loose wires, no corroded pins, no intermittent connections. The flexible tail is part of the board, so it won’t wiggle loose over time.

5. Simplify assembly – Instead of plugging in two or three separate cables, you just place one rigid flex board onto the assembly line. Fewer steps = lower labor cost and fewer errors.

Where Are Rigid Flex PCBs Used?

You’ve probably used products with rigid flex PCBs without even knowing it:

• Foldable smartphones – The main board is split into two rigid sections (one for each side of the fold) connected by a flexible tail that bends at the hinge. This tail must survive tens of thousands of folds.

• Laptops and tablets – The hinge area that connects the keyboard to the screen often uses a rigid flex board. The rigid parts hold the processor and ports; the flexible tail bends through the hinge.

• Wearables – Smartwatches and fitness trackers use rigid flex boards to wrap around the wrist while keeping the main processor on a rigid section.

• Medical devices – Implantable sensors, endoscope cameras, and hearing aids rely on tiny, reliable rigid flex circuits.

• Aerospace and defense – Satellites and avionics use rigid flex to eliminate heavy wiring harnesses and survive vibration.

• Automotive – Dashboard clusters, steering wheel controls, and battery management systems use rigid flex for space‑saving connections.

• Industrial – Robots, printers, and cameras with moving parts benefit from the durability of rigid flex.

Rigid Flex vs. Separate Rigid + Flex + Connectors – A Quick Comparison

How Is a Rigid Flex PCB Made?

The manufacturing process is more complex than a standard rigid board. Here’s a simplified version:

1. Prepare the flexible cores – Polyimide flex layers with copper traces are fabricated separately.

2. Prepare the rigid cores – FR4 rigid layers are fabricated.

3. Lamination – The flex and rigid layers are stacked and laminated together under heat and pressure. Release sheets protect the flexible areas so they don’t bond to the rigid material.

4. Drilling and plating – Holes are drilled and plated, but only in the rigid areas (drilling through the flex would crack it).

5. Outer layer patterning – Outer copper layers are etched, covering both rigid and flex areas as needed.

6. Coverlay and solder mask – Flex areas get a polyimide coverlay (flexible “solder mask”). Rigid areas get standard epoxy solder mask.

7. Surface finish – ENIG (gold) is common for flat, solderable pads.

8. Routing – The board is cut out, including the shape of the flexible tails. Flex areas are often laser‑cut for precision.

Design Rules for Rigid Flex PCBs

Designing a rigid flex board is not like designing a rigid board. Here are the key rules to follow:

• Transition zone – The area where the rigid section meets the flex tail must be carefully designed. Traces should not change direction abruptly. Use teardrops where traces enter the flex area.

• No vias in flex area – Vias (plated holes) are only allowed in rigid sections. A via in the flex area will crack when the board bends.

• Bend radius – The flex tail has a minimum bend radius (usually 5‑10 times the flex thickness). Don’t try to bend it tighter.

• Stiffeners – Add a polyimide or FR4 stiffener under any component or connector on the flex tail. Without it, the flex would flop around and break the solder joints.

• Avoid sharp corners – The outline of the flex tail should have rounded corners, not sharp 90° angles. Sharp corners create stress points.

• Trace routing in flex area – Traces should run perpendicular to the bend axis (across the bend, not parallel). Use staggered traces for multi‑layer flex to reduce stress.

• Coverlay relief – The polyimide coverlay should be removed from areas that need to be soldered (like pads in rigid sections). Leave it on flex traces.

Common Mistakes When Using Rigid Flex

• Bending the flex tail after assembly – The board is designed to bend at the factory for installation, but repeated bending in the field may require dynamic flex design. Know the difference.

• Placing heavy components on the flex tail – Even with a stiffener, heavy components (like large connectors or batteries) belong on rigid sections.

• Forgetting strain relief – If the flex tail exits a housing, add a clamp or adhesive to prevent pulling.

• Ignoring material stackup symmetry – An asymmetrical stackup can cause the board to curl or twist after lamination.

• Not testing the flex area – After manufacturing, the flex tail should be bent to its intended radius and tested for continuity. Cracks can appear only after bending.

Prototyping vs. Production

For prototypes, rigid flex boards take longer and cost more than standard rigid boards – typically 15‑20 days for small batches. But for high‑volume production, the per‑board cost can be lower than using separate boards and connectors because you save on assembly labor and parts.

Real‑World Example: A Foldable Drone Arm

A drone manufacturer needed a circuit that could run along a folding arm. The arm had a hinge in the middle. They tried using two rigid boards connected by a flat cable. The cable was bulky, and the connectors failed after a few hundred folds. We designed a rigid flex board: a rigid section at each end (for the motor and the controller), connected by a flexible tail that bent exactly at the hinge. The board weighed less, had no connectors, and survived over 10,000 folds.

What We Offer – Custom Rigid Flex PCBs and More

We’re a custom circuit board manufacturer specializing in rigid flex, flexible PCBs, HDI high‑frequency boards, and PCBA. We design and manufacture rigid flex boards for any application – from simple two‑layer designs to complex multi‑layer HDI rigid flex with impedance control.

Here’s what we do:

• Design review – We’ll check your layout for bend radius, transition zone, stiffener placement, and material selection.

• Prototyping – Fast turnaround (15‑20 days) so you can test your design before volume.

• Volume production – We scale up without compromising quality.

• PCBA – We also assemble components on your rigid flex boards, including sourcing, SMT, and testing.

Ready to Make Your Product Fold, Bend, or Fit in Tight Spaces?

If your product is held back by bulky connectors or wiring harnesses, rigid flex PCBs can be the solution. Send us your schematic or a rough idea. We’ll recommend the best stackup, materials, and design approach – and then build it for you, from prototype to production.
