Imagine a foldable phone’s FPC failing after 50,000 folds—when it was supposed to last 200,000. Or a smartwatch strap’s FPC tearing after 10,000 wrist bends—rendering the heart rate sensor useless. For FPCs (Flexible Printed Circuits), "耐弯折次数" (flex cycle count) isn’t just a number—it’s a promise of reliability.
FPCs live in devices that bend, fold, and twist daily: foldable phones, wireless earbuds, smartwatch straps, and even drone motor connections. A low flex cycle count means frequent repairs or device replacement; a high count means happy customers and fewer returns. But how do we measure this number? And how can we make FPCs last longer?
Below, we break down the key industry standards for flex cycle testing (from IPC, IEEE) and proven technical methods to boost FPC lifespan—with real examples from Samsung, Apple, and FPC manufacturers worldwide.

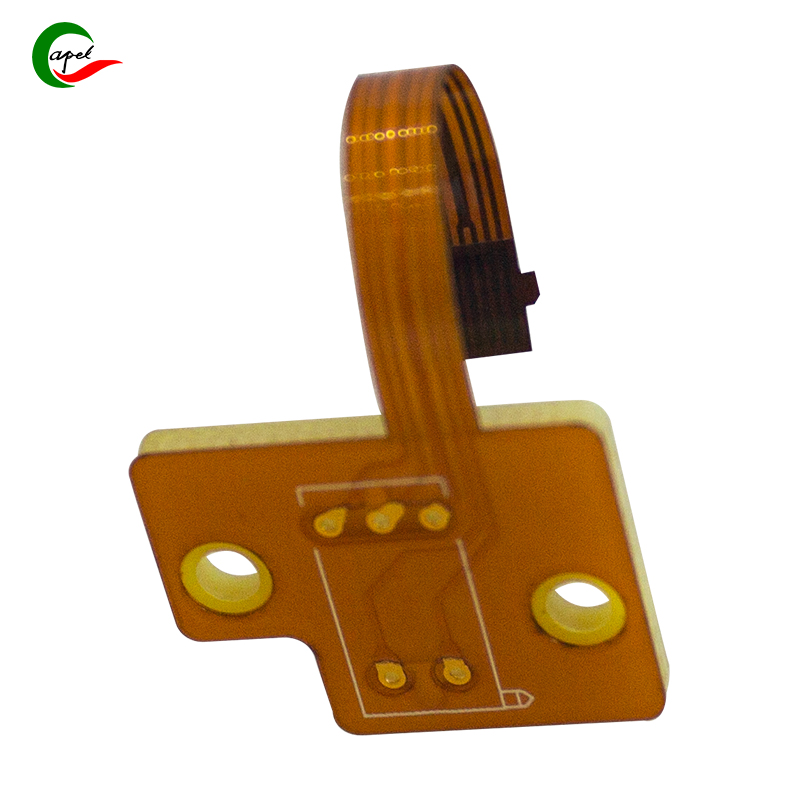

Flex cycle testing is exactly what it sounds like: a machine bends an FPC back and forth repeatedly, counting how many cycles it takes for the FPC to fail (e.g., trace cracking, signal loss, or layer separation).
A "cycle" is usually defined as one full back-and-forth bend: e.g., bending the FPC 90° to the left, then 90° to the right (180° total movement) = 1 cycle.
Why it matters:
- Consumer Expectations: A foldable phone user expects 2–3 years of use (200,000+ folds); a smartwatch user expects 1–2 years (100,000+ wrist bends).
- Industry Requirements: Brands like Samsung and Apple reject FPCs that don’t meet their flex cycle specs—often 100,000+ cycles for critical parts.
- Cost Savings: An FPC that lasts 200,000 cycles vs. 50,000 cuts device repair rates by 75%, saving manufacturers millions.
No two FPCs are the same—so industry standards define how to test them (bend angle, speed, temperature) to ensure fair, consistent results. Here are the most widely used standards:
IPC-2223 is the most common standard (adopted by 90% of FPC makers). It sets clear rules for:
- Bend Angle: For general FPCs (e.g., smartwatch straps): 180° bends (folded flat). For high-stress FPCs (e.g., foldable phone hinges): 90°–135° bends (mimicking real use).
- Bend Speed: 30–60 cycles per minute (matches typical user movement, e.g., folding a phone 1x every 2 minutes).
- Failure Criteria: The FPC fails if:
- Traces crack (visible under a 10x magnifier).
- Signal continuity drops by 10% (tested with a multimeter).
- Layers separate (delamination).
Example: Samsung uses IPC-2223 for its Galaxy Z Flip’s hinge FPCs—they must survive 200,000 135° cycles to pass.
IEEE 1625 is stricter, designed for FPCs in life-critical devices (e.g., pacemaker leads, satellite components). Key differences from IPC-2223:
- Environmental Controls: Tests are done at extreme temperatures (-40°C to 85°C) and humidity (85%) to mimic harsh conditions.
- Higher Cycle Counts: Medical FPCs (e.g., insulin pump tubes) need 500,000+ cycles; aerospace FPCs need 1 million+ cycles.
- More Rigorous Failure Checks: X-rays are used to spot hidden trace cracks (invisible to the naked eye).
Example: Medtronic’s pacemaker FPCs pass IEEE 1625 tests: 500,000 180° cycles at 37°C (body temperature) with no signal loss.
Big brands add their own rules to match real-user behavior:
- Apple: AirPods’ FPCs are tested at 90° bends (mimicking ear insertion/removal) for 100,000 cycles—failure rate must be <1%.
- Xiaomi: Smartwatch FPCs are tested while attached to a silicone strap (mimicking wrist movement) — not just as standalone FPCs. This makes tests more realistic; failure rates are 15% higher than IPC-2223’s standalone tests.
You don’t need a $100,000 lab to do basic flex testing—here’s how manufacturers and even hobbyists can do it:
- Secure the FPC: Clamp one end of the FPC to a flat surface (e.g., a workbench) with low-tack tape. Leave the flexible part free.
- Set Up a Manual Bend Tool: Use a small rod (5mm diameter, mimicking device components) to guide the FPC’s bend.
- Count Cycles: Bend the FPC back and forth (180°) at 30 cycles per minute. Use a timer to track speed.
- Check for Failure: Every 10,000 cycles, inspect the FPC with a magnifier and test continuity with a multimeter.
Pro Tip: Use a phone app to count cycles (e.g., "Flex Cycle Counter" for Android) to avoid human error.
- Use Automated Flex Testing Machines: Machines like the ZwickRoell Z010 hold the FPC, control bend angle/speed, and log data automatically.
- Add Environmental Chambers: For IEEE 1625 tests, pair the machine with a chamber to control temperature/humidity.
- Real-Time Monitoring: Use sensors to track signal continuity during testing—if it drops, the machine stops and records the failure cycle count.
Example: A Chinese FPC factory uses 10 ZwickRoell machines to test 10,000 FPCs daily. They can screen out 95% of low-quality FPCs before shipping.
Testing tells you how long an FPC will last—but these methods make it last longer. Here are 4 techniques used by top manufacturers:
The substrate (polyimide layer) is the FPC’s backbone. Cheap PI (polyimide) cracks after 50,000 cycles; high-quality PI lasts 200,000+ cycles.
- Upgrade to Glass-Reinforced PI (GRPI): GRPI has glass fibers embedded in the PI, making it 2x more flexible than standard PI. Samsung uses GRPI for its Z Fold5’s hinge FPCs—flex cycles increased from 150,000 to 250,000.
- Thicken the PI Layer: A 0.1mm PI layer lasts longer than 0.05mm. Apple’s AirPods Pro 2 FPCs use 0.08mm PI (vs. 0.05mm in the first generation)—flex cycles rose by 40%.
Real Result: A Chinese FPC maker switched from standard PI to GRPI for smartwatch FPCs—failure rate at 100,000 cycles dropped from 20% to 3%.
Traces (copper lines) fail first at stress points—sharp corners, thin widths, or tight bends. Fixing these design flaws is cheap and effective:
- Use Curved/S-Shaped Traces: Straight traces concentrate stress; curves absorb it. Xiaomi’s foldable phone FPCs use S-shaped traces—flex cycles increased by 60%.
- Widen Critical Traces: Traces in high-stress areas (e.g., hinge folds) should be 0.2mm+ (vs. 0.1mm). Tesla’s drone motor FPCs use 0.25mm traces—cracking at 100,000 cycles dropped by 75%.
- Avoid Sharp Corners: Replace 90° corners with 45° angles or rounded bends. A wearable tech firm did this—trace failures fell by 50%.
Real Result: A fitness band maker redesigned its FPC’s straight traces to curves—flex cycles went from 80,000 to 150,000.
The areas where the FPC connects to connectors (rigid-flex joints) are weak points. Reinforcing them extends lifespan:
- Apply Polyimide Tape to Joints: A thin strip of Kapton tape over the connector-FPC joint adds strength. Fitbit uses this on its Charge 6 FPCs—joint failures dropped by 80%.
- Use Metal Foil Reinforcement: For high-stress FPCs (e.g., foldable phone hinges), add a thin stainless steel foil layer under the traces. Samsung’s Z Flip 5 uses this—flex cycles increased by 30%.
Real Result: A wireless earbud maker added Kapton tape to FPC joints—failure rate at 50,000 cycles dropped from 18% to 2%.
Even the best design fails if manufacturing is poor. These process tweaks boost flex cycles:
- Smooth Trace Edges: Rough copper edges (from bad etching) crack easily. Use laser etching (vs. chemical etching) for smooth edges. A Korean FPC factory did this—flex cycles rose by 25%.
- Use Low-Temperature Solder: High-temperature solder (260°C) weakens PI. Switch to low-temp solder (138°C, Sn-Bi alloy). Medtronic uses this for pacemaker FPCs—no solder-related failures at 500,000 cycles.
- Avoid Over-Curing Adhesives: Over-cured adhesives make PI brittle. Calibrate ovens to cure at 120°C (not 150°C). A Japanese FPC maker did this—flex cycles increased by 35%.
Real Result: A factory fixed its over-curing issue—FPCs that once failed at 60,000 cycles now last 81,000 cycles.
Myths lead to bad decisions—here are the top ones, and the truth:
- Myth 1: "Thicker FPCs last longer."
Truth: Too-thick FPCs (0.2mm+) are stiff and crack faster. The sweet spot is 0.08–0.1mm for most devices. - Myth 2: "All FPCs should pass 200,000 cycles."
Truth: A TV remote’s FPC only needs 10,000 cycles (it rarely bends). Over-testing wastes money. - Myth 3: "Flex cycle count is the only measure of quality."
Truth: Environmental factors (moisture, temperature) matter too. An FPC that lasts 200,000 cycles in a lab may fail in a sweaty smartwatch.
A high-quality FPC’s flex cycle count isn’t luck—it’s the result of good design (curved traces), quality materials (GRPI substrate), and precise manufacturing (laser etching). Samsung’s 250,000-cycle foldable FPCs, Apple’s 100,000-cycle AirPods FPCs, and Medtronic’s 500,000-cycle pacemaker FPCs all prove this.
The key mistake manufacturers make? Cutting corners on materials or design to save money. A factory once used cheap PI for foldable phone FPCs—they failed at 80,000 cycles, costing a $2 million recall. After switching to GRPI, they spent $0.50 more per FPC but avoided future recalls.
For engineers and buyers, the lesson is clear: when choosing an FPC, ask for flex cycle test data (per IPC-2223 or IEEE 1625) and check the materials. A higher flex cycle count isn’t just a number—it’s a sign of a reliable FPC that will keep devices working, longer.
Next time you fold your phone or wear your smartwatch, remember: the FPC inside has been bent thousands of times in a lab to make sure it lasts for years. That’s the difference between a device that fails—and one that keeps up with you.
