You’ve spent weeks designing a new electronic device. Everything looks good on paper. Then the first batch of PCBs comes back – and some of them just don’t work. Tiny bridges, missing components, misaligned pads. Sounds familiar?

That’s where optical inspection steps in. Not as a fancy add-on, but as a basic shield between a reliable product and a field failure disaster.

What Exactly Is Optical Inspection?

Put simply, optical inspection uses high-resolution cameras and automated image processing to check a circuit board’s surface. It looks for things your naked eye would probably miss: solder paste that’s smeared, a capacitor that’s slightly rotated, a trace that has a hairline scratch.

In everyday terms – it’s like giving every single board a thorough eye exam, but way faster and more accurate.

Why Should a Manufacturer Like You Care?

Because one bad board can ruin your reputation. If you’re making medical devices, car electronics, or industrial controls, a hidden defect isn’t just an inconvenience – it’s a liability.

Optical inspection catches problems early. It’s the difference between fixing a mistake at the prototype stage vs. recalling thousands of finished products from the field.

The Challenge With Advanced PCBs

Your project might involve:

• Flexible circuits that bend and fold

• Rigid-flex boards that combine both worlds

• HDI boards with ultra-fine lines and microvias

• High-frequency materials for 5G or radar

These boards are tough to inspect manually. A soft flex layer can warp. An HDI trace might be thinner than a human hair. Traditional visual checks just don’t cut it.

That’s why we’ve baked optical inspection into every step of our production line – not as a final checkpoint, but as an ongoing habit.

How We Actually Do Optical Inspection (No Jargon)

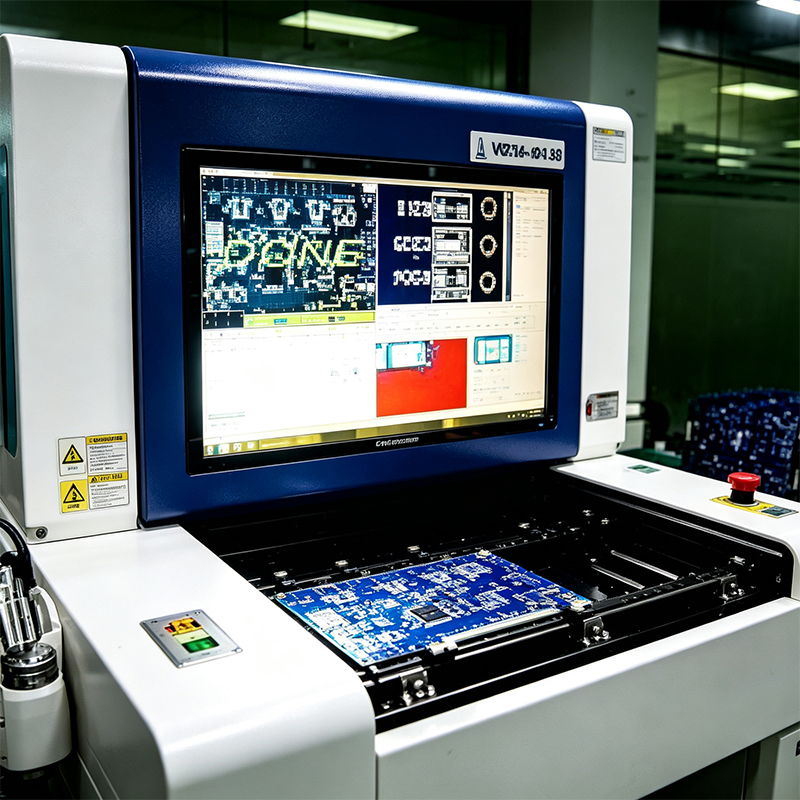

We use automated optical inspection (AOI) machines that scan each board after:

• Solder paste printing – to make sure paste is where it should be

• Component placement – to catch pick-and-place errors

• Reflow soldering – to find bridges, opens, or tombstoned parts

For rigid-flex and flex boards, we also adapt lighting and camera angles to avoid glare from the polyimide material. For HDI, we dial up the resolution to see those tiny vias clearly.

And here’s what we don’t do: we don’t just pass or fail a board. We log every anomaly and use that data to tune our assembly process. That means fewer defects on your next batch.

Real Talk – What Does This Mean for You?

You get boards that actually match your design files. Lead counts stay correct. Solder joints look clean. No mysterious random failures during your final product test.

And because we catch issues early, we don’t waste your time or money reworking entire batches. That translates to faster prototypes, smoother production, and fewer headaches.

Got a Special Board in Mind?

We custom-build flexible PCBs, rigid-flex, HDI, high-frequency, and full PCBA assemblies. Whatever your device needs – from a wearable to a base station – we’ll run optical inspection as naturally as cleaning our tools.

No robotic scripts. No “we’ll look at it if we have time.” It’s just how we work.

Ready to Stop Guessing About Quality?

Send us your Gerber files or a rough sketch. We’ll give you a straight quote and a realistic timeline. Let’s make boards that pass inspection – not just ours, but yours too.
