Imagine you’ve just received a batch of complex, 12-layer HDI boards. They look perfect under the microscope. But once you power them up, one of them just… dies. No smoke, no smell, just dead air. Troubleshooting that without knowing if the board itself has a hidden short circuit is a nightmare.
This is where the flying probe tester steps in as your hardware’s personal doctor.

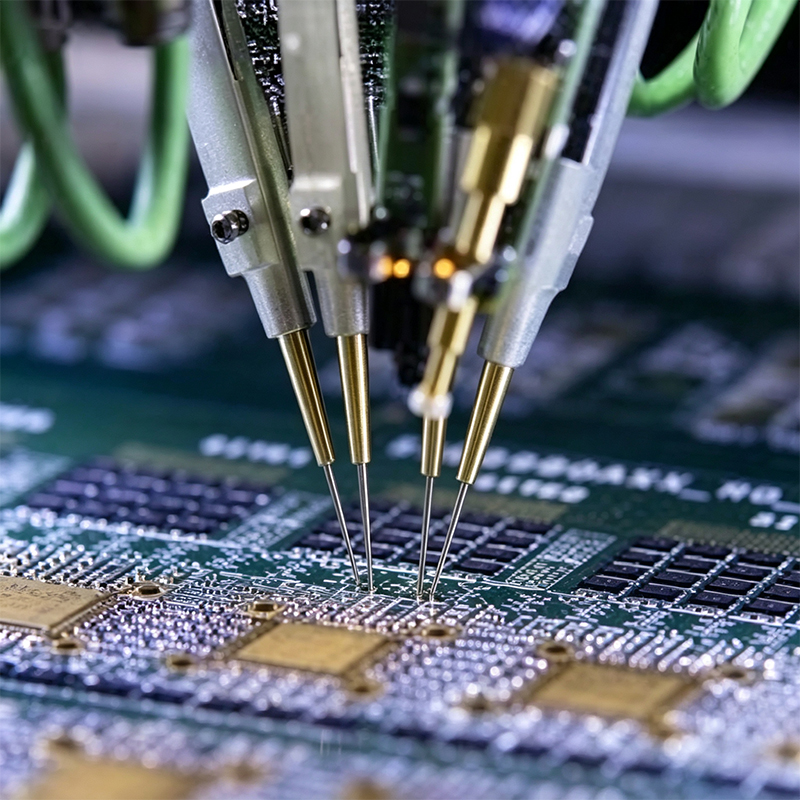

At its heart, a flying probe tester is a machine that uses highly precise, computer-controlled needles (probes) to move rapidly across a PCB. These needles "fly" from one test point to another, touching down to check for continuity, resistance, and capacitance.
Think of it as a robotic acupuncturist. Instead of treating back pain, it’s looking for "broken nerves" (open circuits) or "clogged arteries" (short circuits) in your PCB traces.
In 2026, these machines are faster and smarter than ever. Here’s how the process usually goes:
The Brain: The tester swallows your Gerber and Netlist files to map out the board's "nervous system."
The Flight: Multiple probes (usually 4 to 8) dance across both sides of the board simultaneously. They can hit pads as small as a human hair.
The Verdict: The machine measures the electrical characteristics of every trace. If a trace that should be connected is open, or if two traces are accidentally "holding hands," the tester flags it immediately.
This is the classic debate in the factory.
The Bed of Nails (ICT): Uses a custom fixture with thousands of pins. It’s incredibly fast for mass production (seconds per board) but costs thousands of dollars to build the fixture.
The Flying Probe: No fixture needed! You just upload the file and press start. It’s slower (minutes per board) but saves you a fortune on setup costs for prototypes and small batches.
Pro Tip: If you're building 10 pieces, go Flying Probe. If you’re building 10,000, go Bed of Nails.
As a company that specializes in HDI and Flex/Rigid-Flex PCBs, we can tell you: these boards are "divas." With HDI, the pads are so tiny and dense that a traditional needle bed often can't even touch them without damaging the board. Flying probes, however, use software-controlled pressure. They are gentle enough for ultra-thin Flex PCBs but precise enough for 0.1mm HDI pads.
In the 6G era of 2026, signal integrity is everything. A tiny micro-short hidden under a layer of solder mask can ruin a high-frequency signal. Only a flying probe has the "patience" to find these ghosts.
The Good:
Zero Tooling Cost: No need to wait weeks for a fixture to be built.
Flexibility: Change your design? No problem, just update the software.
Precision: Can test incredibly dense layouts that human eyes can’t even see.
The Bad:
Speed: It’s not built for millions of units. It’s a "marathon runner," not a "sprinter."
Cost Per Unit: Since it takes longer, the cost per board is higher than high-volume ICT.
At the end of the day, a flying probe tester is about peace of mind. Whether you are developing a new medical device or a high-speed server, you need to know the foundation—the PCB—is solid. By catching errors during the fabrication stage, we save you from the "expensive headache" of troubleshooting a fully assembled board that won't turn on.
