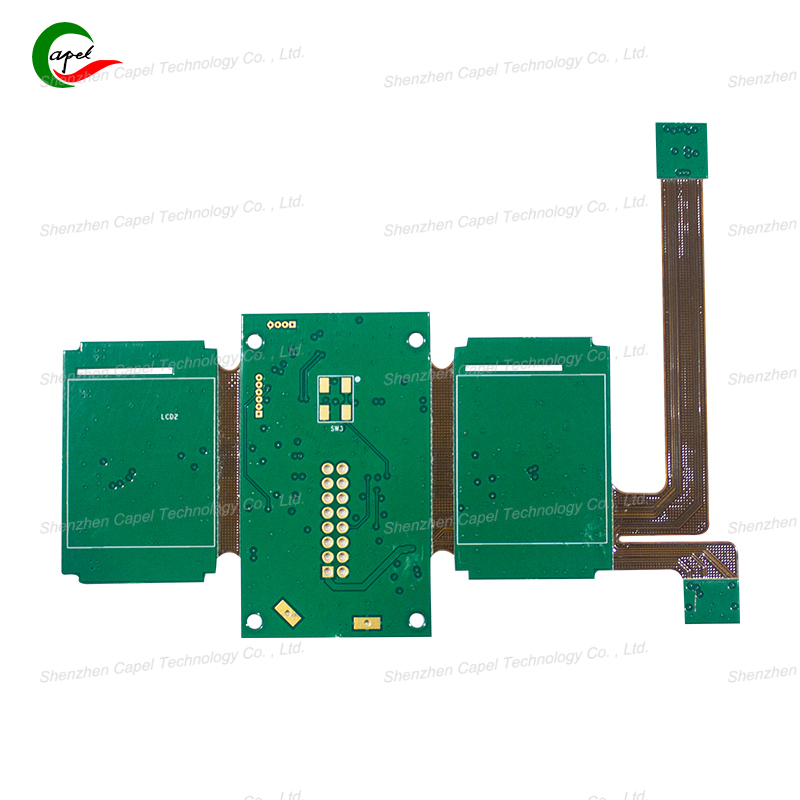

1. Introduction: The "Mass Production Nightmare" for Rigid-Flex PCBs

2. Strategy 1: Pre-Production Standardization—Lock Down Design & Materials

Key Actions:

• Fix Design Specs (No Mid-Batch Changes): Once production starts, freeze all design details—from trace width (e.g., 0.2mm in flexible zones) to adhesive type. Samsung’s rigid-flex PCB factory for foldable phones uses a "design lock" system: any change requires a 3-day review, cutting design-induced errors by 40%.
• Source Materials from Approved Suppliers: Use the same polyimide (e.g., DuPont’s Kapton) and FR4 for every batch. A Chinese factory switched to single-source polyimide and saw material-related defects drop from 12% to 3%.
• Create a "Master Board" for Reference: Make a golden sample (a perfect rigid-flex PCB) and use it to calibrate machines. Tesla’s battery PCB line uses a master board to check layer alignment—variations fell to ±0.02mm from ±0.05mm.

3. Strategy 2: Control Layer Bonding—The "Glue" of Consistency

Key Actions:

• Use Automated Bonding Machines (No Manual Gluing): Manual gluing leads to uneven adhesive thickness. Automated machines (e.g., ASM’s bonding systems) apply exact adhesive amounts (e.g., 0.05mm thick). A medical device factory switched to automation and cut bonding failures by 75%.
• Monitor Temperature & Pressure in Bonding Ovens: Bonding requires precise heat (120-150°C) and pressure (50-80 psi). Use sensors to track real-time data—if temps drop by 5°C, the oven shuts down. Boeing’s aerospace PCB line uses this; bonding consistency reached 99% (vs. 88% before).
• Test Bond Strength on 5% of Each Batch: Pull-test random boards to check if layers separate. A car electronics factory found 8% of its batch had weak bonds via this test—they reworked the oven settings and saved the rest of the batch.

4. Strategy 3: Precision Routing & Cutting—Avoid Trace/Edge Errors

Key Actions:

• Use Laser Routing for Flexible Zones: Laser routers (vs. traditional die-cutters) make precise traces with ±0.005mm accuracy. Xiaomi’s rigid-flex PCB line for wearables uses lasers; trace width errors dropped from 8% to 1%.
• Calibrate Cutting Machines Daily: Thermal expansion or vibration can throw machines off. A Taiwanese factory calibrates its cutters every morning—edge alignment errors (a top cause of scrap) fell by 60%.
• Inspect Traces with AI Vision Systems: Cameras scan every board for trace defects (e.g., thin spots, shorts). Samsung’s factory uses AI inspection; it catches 98% of trace errors (vs. 70% with human inspectors).

5. Strategy 4: Bending Cycle Testing—Catch Flexible Zone Failures Early

Key Actions:

• Test 10% of Each Batch for Bending Durability: Use machines to fold boards 10,000 times (a fraction of the 200,000+ required) and check for cracks. A foldable phone factory found 15% of its batch failed this test—they adjusted trace curvature and saved the next batch.
• Simulate Real-World Bending Angles: Test at angles the PCB will face (e.g., 180° for foldable phones, 90° for car sensors). A drone factory tested at 45° (too low) and missed failures—switching to 90° (real-use angle) cut field failures by 50%.
• Track Bending Data Over Batches: Log failure rates to spot trends (e.g., "Batch 23 failed more—check polyimide supplier"). Tesla does this; bending-related yield loss dropped from 10% to 2%.

6. Strategy 5: Post-Production Full Inspection—No Defects Slip Through

Key Actions:

• 100% Electrical Testing: Use bed-of-nails testers to check if all traces conduct signal correctly. A 5G module factory added this; electrical defects (e.g., open circuits) dropped from 7% to 0.5%.
• X-Ray Inspection for Hidden Defects: X-rays spot internal issues (e.g., air bubbles in bonding) that visual checks miss. Medtronic’s medical PCB line uses X-rays; hidden defects were cut by 80%.
• Label Defective Boards for Root Cause Analysis: Tag failed boards (e.g., "bonding failure," "trace crack") and fix the issue. A Korean factory did this; repeat defects fell by 65% in 3 months.

7. Conclusion: Consistency = Process Control + Testing
