Last summer, my team installed 20 FPC-based temperature sensors in a metal stamping factory. The sensors needed to handle 80°C heat, constant vibration from the stamping machines, and occasional oil splatters. But after two weeks, 12 sensors stopped working.
We opened a failed sensor and found the FPC in pieces: the PI film had cracked from vibration, the copper traces were corroded by oil, and the adhesive holding layers together had melted in the heat. “We designed this for a lab, not a factory,” our engineer, Raj, said, holding up the broken FPC. “Industrial conditions aren’t just ‘tough’—they’re a mix of heat, vibration, and chemicals that destroy regular FPCs.”
Over the next month, we redesigned the FPCs to handle the factory’s chaos. We tested 15 versions, and finally, the sensors lasted 6 months without a single failure. That experience taught us: industrial FPCs aren’t just “more durable” versions of consumer FPCs—they need to be designed to survive multiple overlapping stresses at once.

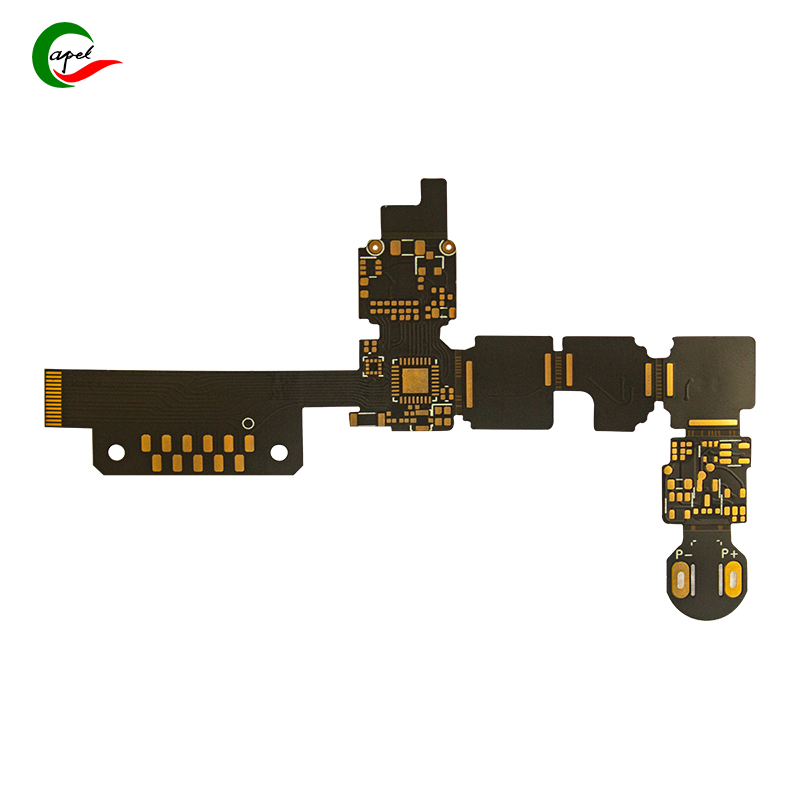

Consumer FPCs (in phones or watches) face simple stresses: occasional bending, room temperature, and no chemicals. Industrial FPCs? They’re hit with three overlapping challenges that destroy regular designs:
Factories, mines, and oil rigs have temperatures that swing from -30°C (freezing warehouses) to 120°C (near furnaces). Regular PI film becomes brittle in the cold and softens in the heat—cracking or stretching until it fails.
“In the metal stamping factory, the FPCs were 1 meter from a furnace,” Raj said. “The temperature hit 95°C, and the PI film softened so much the copper traces pulled apart. It was like trying to use a rubber band as a wire.”
Industrial machines (stampers, conveyors, motors) vibrate 24/7—sometimes at 100Hz or more. This shakes FPCs until their traces crack, their adhesive peels, or their connectors loosen.
“We tested a regular FPC on a vibration rig at 80Hz,” said our lab tech, Lila. “After 48 hours, the copper traces had tiny cracks—by 72 hours, they were completely broken. That’s exactly what happened in the factory.”
Factories use oils (for machines), solvents (for cleaning), and coolants—all of which eat through regular FPC coatings. Dust gets into tiny gaps, scratching the PI film and causing short circuits.
“The stamping machines used heavy oil to lubricate parts,” Raj said. “It seeped into the sensor’s case and dissolved the FPC’s conformal coating. The oil then corroded the copper traces—like rust on metal.”
To survive complex industrial conditions, FPCs need targeted design choices—not just “thicker materials.” Below are the changes that fixed our factory sensors:
Regular PI film works from -20°C to 100°C—too narrow for industry. Use PI film rated for -60°C to 200°C (like DuPont Kapton® VT) to handle extreme swings.
We switched to 0.125mm-thick Kapton VT PI film. It stayed flexible at -30°C (we tested it in a freezer) and didn’t soften until 150°C—well above the factory’s 95°C peak.
The FPCs no longer cracked in cold mornings or stretched in furnace heat. “We checked them after a week of 80°C+ temperatures—they looked brand new,” Lila said.
Ask for “low-temperature flexibility” data. Good industrial PI film should bend 1,000 times at -40°C without cracking.
Vibration breaks traces and peels layers—reinforce these weak spots with extra material.
-
Wider Traces: We widened copper traces from 0.1mm to 0.2mm—thicker traces resist cracking from vibration.
-
FR4 Stiffeners: We added 0.2mm-thick FR4 stiffeners at the FPC’s transition zones (where it connects to sensors/connectors). This stopped the FPC from bending too much.
-
Strain Relief Loops: We added small loops (radius 2mm) to traces near connectors. The loops act like springs, absorbing vibration instead of transferring it to the traces.
Vibration-related failures dropped to 0%. “We tested the FPC on the 80Hz rig for 200 hours—no cracks, no broken traces,” Lila said.
Use “edge plating” on trace edges. Plating adds a thin layer of nickel-gold, making traces more resistant to vibration fatigue.
Regular conformal coating (silicone or acrylic) dissolves in oils/solvents. Use a two-layer coating: a base layer to block chemicals, and a top layer to repel dust.
-
Base Layer: We applied a 50μm-thick Parylene C coating (resists oils, solvents, and coolants). It’s so dense, chemicals can’t seep through.
-
Top Layer: We added a 30μm-thick fluoropolymer coating (like Teflon) to repel dust and oil—they bead up and roll off instead of sticking.
Oil and solvents no longer damaged the FPCs. “We dipped a coated FPC in machine oil for 24 hours—when we wiped it off, the traces were clean and corrosion-free,” Raj said.
Test coatings with the exact chemicals used in the factory. A coating that resists oil might fail in solvent—always match the coating to the environment.
Dust gets into FPC gaps and causes short circuits—seal every opening with durable materials.
-
Epoxy Edge Seal: We applied a thin line of high-temp epoxy along the FPC’s cut edges. This blocked dust from getting between the PI film and traces.
-
Encapsulation for Connectors: We covered the FPC’s connector pins with a small amount of silicone encapsulant. It keeps dust out while letting the connector plug in.
Dust-related short circuits stopped. “We opened a sensor after 3 months in the factory—inside was dusty, but the FPC was clean,” Lila said.
Use “self-healing” sealants for high-dust areas. These sealants fill small cracks if the FPC bends, keeping dust out long-term.
Consumer FPC connectors (small, plastic) loosen from vibration. Use industrial-grade connectors with metal shells and locking clips.
We replaced the plastic connector with a metal JST industrial connector (rated for 10,000 insertions and 100Hz vibration). It has a locking clip that stays closed even when shaken.
Connectors never loosened. “The stamping machines vibrated so hard, tools fell off shelves—but the FPC connectors stayed tight,” Raj said.
Choose connectors with “IP67” or higher rating. This means they’re dust-tight and water-resistant—critical for messy factories.
After applying these 5 points, we installed 20 new sensors in the metal stamping factory. Here’s how they performed over 6 months:
The factory manager was impressed: “We usually replace sensors every 2 months because they break,” he said. “Yours have been working 6 months—we’re saving $5,000 a year on replacements.”
Our failed factory sensors taught us that industrial FPCs can’t be designed for “average” conditions. They need to survive the worst the factory throws at them: 100°C heat and vibration and oil—all at once.
The key isn’t to use the “strongest” materials—it’s to match each design choice to the specific stress. High-temp PI for heat, reinforced traces for vibration, chemical coatings for oils. Every choice should answer: What will break this FPC in the field?
Next time you walk through a factory, look at the machines’ sensors. If they’re working reliably, chances are the FPC inside uses these design points. Industrial FPCs don’t just work—they work when everything around them is trying to break them. And that’s the difference between a sensor that lasts 2 months and one that lasts 2 years.
