Let’s be honest—nothing is more expensive than a "cheap" circuit board that fails after it’s already been shipped to your customers. In the world of high-speed electronics, medical devices, and wearables, the difference between a successful product launch and a massive recall often comes down to what you can’t see with the naked eye.

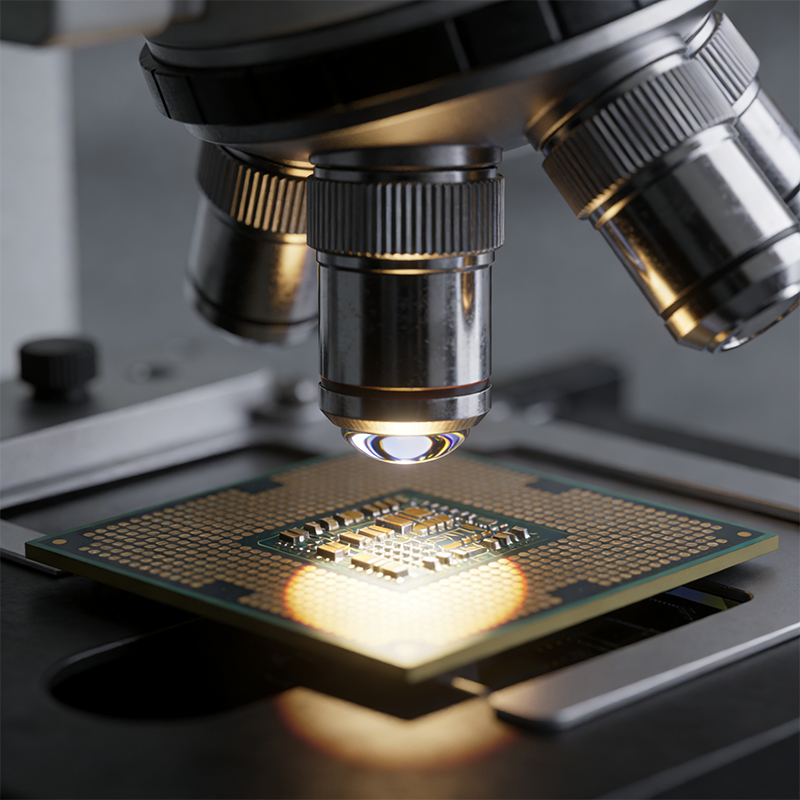

That’s where optical inspection (or AOI—Automated Optical Inspection) enters the chat. But in 2026, it’s not just about having a camera scan a board. It’s about catching the tiny, invisible "time bombs" before they leave the factory.
Human inspectors are great, but they get tired, they blink, and they get distracted. When you are dealing with 0201 components or fine-pitch BGAs on an HDI board, the human eye simply can’t keep up.
Advanced optical inspection uses high-resolution cameras and clever algorithms to check for:
Missing or Misaligned Components: Even a fraction of a millimeter matters.
Solder Bridging: Tiny shorts that can fry your entire system.
Tombstoning: Where a resistor stands up like a tiny monument because of uneven heating.
If you’re designing custom flexible PCBs or rigid-flex boards, you already know they are a different beast. Because these boards are... well, flexible, they don't always sit perfectly flat during inspection.
A standard, "budget" AOI system often gets confused by the natural curves or the reflective surface of the polyimide (PI) material. It throws "false calls" or, even worse, misses real defects.
As a specialist in flexible and high-speed HDI boards, we use multi-angle 3D optical inspection. Our systems are calibrated to distinguish between a harmless ripple in a flex circuit and a genuine solder crack. We don't just scan; we understand the material physics.
At our facility, optical inspection is part of a "triple-check" philosophy.
SPI (Solder Paste Inspection): We check the "foundation" before the components are even placed.
3D AOI: The high-speed scan that catches 99% of assembly issues.
X-Ray Inspection: For those BGA and HDI joints where the light literally can't reach.
We know that for manufacturers in the US, Europe, and beyond, the biggest fear is the "black box" of overseas production. You want to know that the quality you see on the datasheet is the quality you get in the box.
We provide:
Full Traceability: Every board has a story, and our inspection logs prove it.
Expert DFM Feedback: If we see that your component spacing is going to make optical inspection difficult (and thus less reliable), we’ll tell you before we hit the "Start" button.
High-Speed HDI Expertise: We thrive on the complex stuff that other shops turn away.
Don't leave your product's reputation to chance. Whether you’re scaling up a complex rigid-flex medical sensor or a high-speed telecommunications board, you need a partner who sees what others miss.
Ready for a quote? Send us your Gerber files and BOM. Let our engineering team show you how our optical inspection and rigorous PCBA process can give you the peace of mind you deserve.
