You’ve drawn a circuit diagram – a bunch of symbols connected by lines. It looks clean and logical on paper. But how do you turn that into an actual circuit board that fits inside your product, doesn’t interfere with itself, and actually works?

That’s where PCB layout comes in. It’s the process of taking a schematic and physically arranging the components and copper traces on a board. Think of it like designing the floor plan of a house – you have to decide where each room goes, how the hallways connect, and where the power outlets go. Get it wrong, and the house is a mess. Get it right, and everything just works.

Let’s walk through what PCB layout is, why it matters, and the basic rules you need to know – even if you’ve never designed a board before.

What Is PCB Layout?

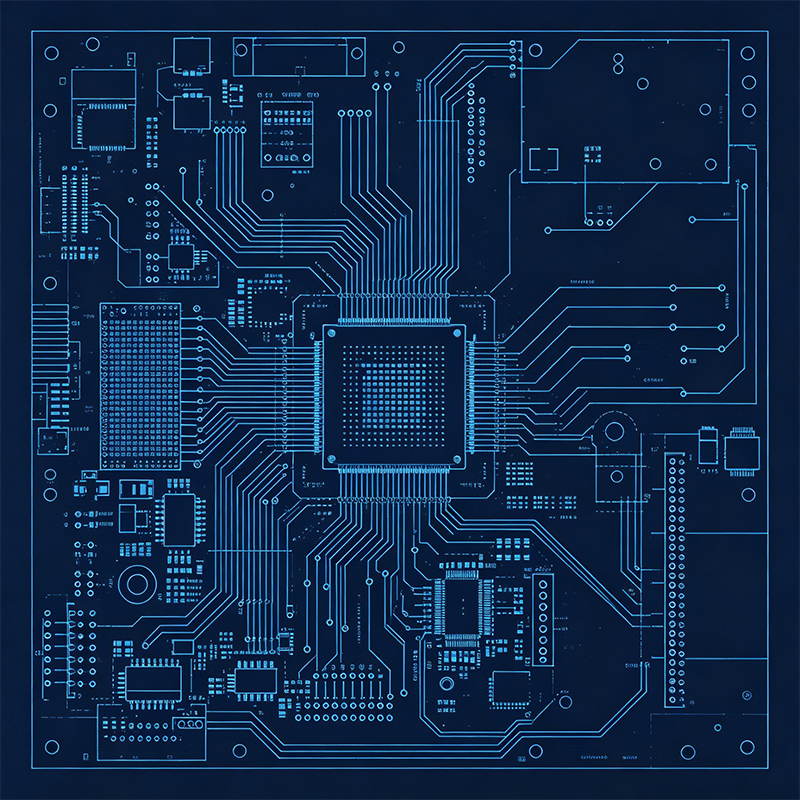

PCB layout (or PCB design layout) is the step where you translate your circuit diagram into the physical copper traces and component placements on a printed circuit board. You use special software (like KiCad, Eagle, Altium, or EasyEDA) to:

• Place components (resistors, chips, connectors, etc.) onto a virtual board.

• Route copper traces to connect the component pins according to the schematic.

• Add holes, vias, silkscreen labels, and solder mask openings.

• Define the board shape and size.

The output of PCB layout is a set of Gerber files – the manufacturing instructions that a PCB factory uses to build your board.

Why Is PCB Layout So Important?

A bad layout can ruin a perfectly good circuit. Even if your schematic is 100% correct, poor placement and routing can cause:

• Noise and interference – Signals crosstalk into each other, causing erratic behavior.

• Voltage drops – Thin traces can’t carry enough current, so voltage sags under load.

• Overheating – Hot components placed too close together cook each other.

• Hard‑to‑assemble boards – Components too close for pick‑and‑place machines, or difficult to solder by hand.

• Electromagnetic interference (EMI) – Bad layout acts like an antenna, sending out noise that disrupts other devices.

A good layout, on the other hand, makes your product reliable, easy to manufacture, and cost‑effective.

The PCB Layout Process – Step by Step

Let’s break down what you actually do when creating a PCB layout.

Step 1: Set up your design rules

Before placing any components, you define the rules: minimum trace width, minimum gap between traces, minimum hole size, etc. These rules come from your board manufacturer’s capabilities. If you ignore them, your board might be unmanufacturable.

Step 2: Import the schematic

Most PCB layout software links directly to your schematic. You import the netlist – a list of all components and which pins need to be connected. The software will show “airwires” (thin lines) indicating where traces need to go.

Step 3: Define the board outline

You draw the shape and size of your board. It can be rectangular, round, or any custom shape. For flexible PCBs, the outline can be complex with cutouts and bending areas.

Step 4: Place components

This is where experience really matters. You drag and drop components onto the board. Good placement is half the battle. Here are basic placement tips:

• Keep related components close – Place the decoupling capacitor right next to the power pin of the chip it’s filtering. Put the crystal right next to the microcontroller.

• Keep connectors at the edges – Easy to plug in.

• Avoid crossing – Don’t place a component in the middle of where traces need to run.

• Leave room for routing – Don’t pack everything so tight that you have no space for traces.

• Think about heat – Put hot components (voltage regulators, power transistors) near the edge or with space around them.

• Orientation – For hand‑soldering, orient components so labels are readable and leads are accessible.

Step 5: Route the traces

Now you turn the airwires into real copper traces. You draw lines from pin to pin on one or multiple layers. A few basic rules:

• Shortest path – Try to make traces as short as possible, especially for high‑speed signals.

• Avoid 90‑degree corners – Use 45‑degree or curved corners. Sharp 90s can cause signal reflections and manufacturing issues.

• Width matters – Wide traces for power and ground. Thin traces for signals (but not thinner than the manufacturer’s minimum).

• Separate noisy and sensitive signals – Keep high‑current or fast‑switching traces away from sensitive analog signals.

• Use ground planes – Fill empty areas with a copper pour connected to ground. This reduces noise and helps with heat.

• Add vias when needed – Vias let you jump from one layer to another. But each via adds resistance and inductance, so don’t overuse them.

Step 6: Add vias and through‑hole pads

For multi‑layer boards, you use vias to connect layers. For through‑hole components (like large connectors or big capacitors), you add plated holes. Make sure the hole size matches the component lead.

Step 7: Pour copper planes

For ground and sometimes power, you pour a large area of copper instead of thin traces. This lowers resistance, reduces noise, and helps with heat dissipation.

Step 8: Add silkscreen labels

You put text and outlines on the silkscreen layer so assemblers know where each component goes, which way diodes face, and where the board’s name and revision go.

Step 9: Run design rule check (DRC)

The software checks your layout against your design rules. It catches things like traces too close together, unconnected pins, or vias that are too small. Fix any errors.

Step 10: Generate Gerber files

Finally, you output a set of Gerber files – one for each layer (copper, solder mask, silkscreen, etc.). These go to the PCB factory.

Common Mistakes Beginners Make in PCB Layout

• Making traces too long – Long traces act like antennas and pick up noise.

• Using the same trace width for everything – Power traces need to be wide; signal traces can be thin.

• Forgetting decoupling capacitors – Every IC needs a small capacitor (0.1µF) near its power pin. Otherwise, the chip may reset or behave strangely.

• Placing components too close – Makes soldering difficult and can cause shorts.

• Ignoring manufacturer capabilities – Your board may look fine, but if the factory can’t etch 0.1mm traces, you’re out of luck.

• No ground plane – A board without a ground plane is much noisier.

• Routing traces under crystals or inductors – The magnetic field can interfere.

PCB Layout for Different Board Types

Rigid boards (FR4) – The standard. Follow the basic rules above. Keep large components away from edges to prevent cracking during depanelization.

Flexible PCBs (flex circuits) – Layout is similar, but you must consider the bend area. No vias, no components, and no sharp trace direction changes in the bend zone. Traces should run perpendicular to the bend axis, not parallel. Use teardrops where traces meet pads to prevent cracking.

Rigid‑flex boards – You have rigid sections and flexible tails. The layout must define the transition zone carefully. Vias can only be in rigid areas. The flex tail should have a smooth outline with large radius corners, not sharp cuts.

High‑density (HDI) boards – These have very fine traces (0.05mm or less) and microvias (laser‑drilled blind vias). Layout for HDI requires careful layer stack planning. You often use “via‑in‑pad” to save space.

High‑frequency boards – For RF or high‑speed digital (5G, radar, etc.), layout must control impedance. You’ll need to calculate trace width and spacing based on the board material and stackup. Avoid sharp corners and stubs on signal lines.

PCB Layout Software – What to Use for Beginners

You don’t need expensive professional tools. Free options are great for learning:

• KiCad – Free, open‑source, professional grade. Used by many hobbyists and small companies.

• EasyEDA – Free, runs in a web browser. Integrated with LCSC/JLCPCB. Very beginner‑friendly.

• Eagle – Has a free version with board size limits. Popular for hobbyists.

• Altium Designer – Professional, expensive (thousands of dollars). Not for beginners.

A Real‑World Example: A Simple LED Flasher

Imagine you’re making a board with a battery, a switch, a resistor, and an LED. The schematic is simple. In layout, you place the battery connector at one edge, the switch nearby, then the resistor, then the LED. You route a short trace from battery+ to switch, then to resistor, then to LED, then back to battery‑. That’s a layout. If you put the resistor on the wrong side of the board, you’d need a longer trace or a via. Not a big deal for this simple circuit, but for a complex board, placement order dramatically affects routability.

What About Auto‑Routing? Can the Software Do It for Me?

Yes, most PCB layout software has an auto‑router. It can automatically connect all the traces. But in most cases, the result is poor – long loops, unnecessary vias, and traces that could be much cleaner. For simple boards, auto‑routing might work. For anything complex, you’re better off routing manually. The auto‑router doesn’t understand where high‑current paths are, which signals are sensitive, or how to place decoupling capacitors. It just connects point A to point B.

How to Get Better at PCB Layout

• Study existing boards – Look at open‑source hardware designs (Arduino, Raspberry Pi Pico, etc.). See how the experts place components and route traces.

• Start simple – Design a small board first – maybe an LED blinker or a sensor breakout. Get it made, solder it, and see how it works.

• Learn one piece of software – Pick KiCad or EasyEDA and stick with it. Watch tutorials.

• Understand your manufacturer’s capabilities – Check their minimum trace width, minimum gap, minimum via size, etc. Design within those limits.

• Practice, practice, practice – Like any skill, layout improves with experience.

Final Answer – What Is PCB Layout?

PCB layout is the process of turning a circuit schematic into a physical board design. You place components, route copper traces, add vias and planes, and generate manufacturing files. Good layout makes your product reliable and easy to manufacture. Bad layout causes noise, overheating, and assembly problems.

It’s part art, part science, and a lot of careful thinking. And with free software and a little patience, anyone can learn the basics.
