You've designed the perfect circuit. The schematic is clean, the layout is optimized, and you're ready to get boards in your hands. But what actually happens after you hit "send" on those Gerber files?
Understanding PCB production isn't just about satisfying curiosity—it helps you design smarter, spot potential problems early, and have better conversations with your fabricator. When you know what happens on the factory floor, you can avoid the common mistakes that turn smooth projects into expensive headaches.
Let's walk through how a sheet of raw material becomes a finished circuit board, step by step.
Your files arrive at the factory, but manufacturing doesn't begin immediately. First comes a Design for Manufacturability (DFM) review .
This isn't just a formality. Experienced engineers check your design against their process capabilities:
Are trace widths and spaces within limits?
Do hole sizes match available tooling?
Is the copper distribution balanced across the board?
Will the stackup work for impedance control if required?
This review catches issues before they cost you time and money. A good fabricator will flag problems and suggest fixes—not just run your files blindly and hope for the best .
Every PCB starts as copper-clad laminate (CCL) —sheets of insulating material with copper foil bonded to one or both sides . For most boards, that's FR-4 fiberglass with epoxy resin. For specialized applications, it might be high-frequency materials like Rogers, flexible polyimide, or metal-core laminates for heat dissipation .
Large sheets are cut into panels sized for the production line. Before anything else, panels go through cleaning—chemical baths remove oxidation and contaminants, prepping the surface for what comes next .

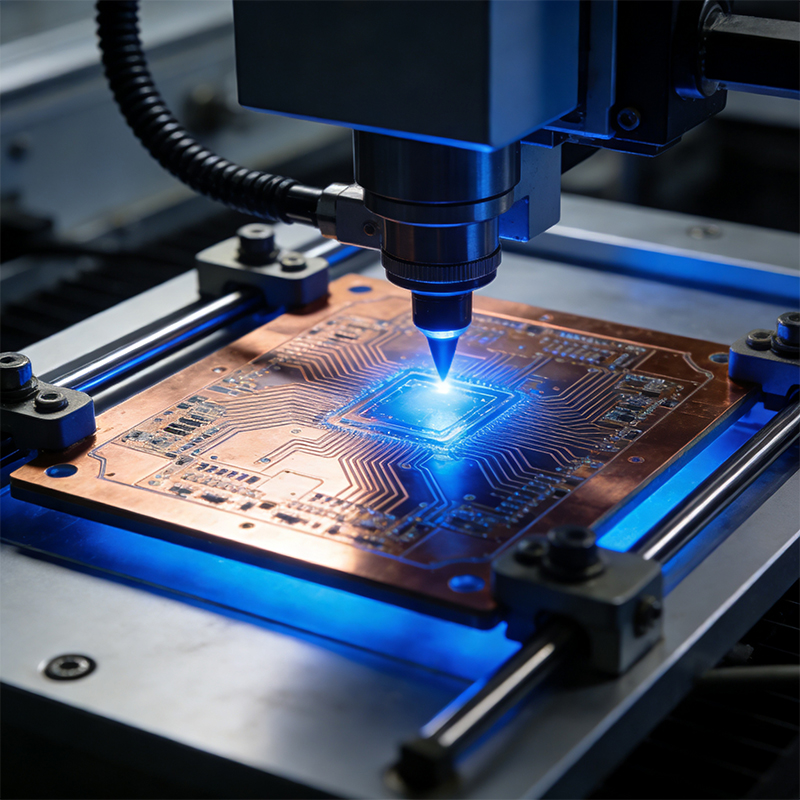

For multilayer boards, inner layers come first. The process starts with Laser Direct Imaging (LDI) , which has largely replaced old-school photographic film .
Here's how it works: A light-sensitive photoresist coats the copper surface. The LDI machine reads your digital files and uses a precision laser to expose the circuit pattern. Where the laser hits, the resist hardens. Where it doesn't, it stays soft .
This method eliminates registration errors and handles finer features—down to 2-3 mil lines for advanced designs .
Now the panel enters chemical baths. The unhardened photoresist washes away first, exposing copper. Then etchant removes that exposed copper, leaving only the traces protected by hardened resist .
After etching, the remaining resist gets stripped off. What's left? Your circuit pattern, precisely rendered in copper .
Automated Optical Inspection (AOI) happens right after etching. High-resolution cameras scan every trace, comparing the actual board to your design data, catching opens, shorts, or thin spots .
For multilayer boards, inner layers get a brown oxide treatment to enhance bonding with the next layers .
Individual inner layers need to become one solid panel. They're stacked with sheets of prepreg—partially cured resin-impregnated fiberglass—between them .
The stack goes into a laminating press under high heat and pressure. The prepreg melts, flows, and bonds everything together. Temperature and pressure profiles matter tremendously—wrong parameters mean voids, delamination, or warped boards .
For advanced HDI boards, this process can repeat multiple times (sequential lamination), building up complex structures with buried and blind vias .
Holes serve two purposes: mounting holes for assembly, and vias that connect different layers electrically .
CNC drilling machines use tiny, high-speed bits (down to 0.2mm or smaller) to create thousands of holes per panel, positioned with micron-level accuracy . For HDI boards, laser drilling creates microvias as tiny as 0.075mm .
Drill quality matters. Worn bits, wrong speeds, or poor chip evacuation can cause rough hole walls or misregistration. Some manufacturers use X-ray inspection to verify hole positioning .
Freshly drilled holes are just holes in insulating material. They need to become conductive pathways .
Electroless copper plating deposits a thin layer of copper on all surfaces—including inside every hole. Then electrolytic plating builds up copper thickness to specification (typically 20-35 microns in holes, more for heavy-copper designs) .
This creates solid conductive tubes—vias—that electrically connect all the layers.
Now it's the outer layers' turn. Same basic process as inner layers—photoresist, imaging, development—but with an extra step: pattern plating .
After imaging, the exposed areas get additional copper plating, then a thin layer of tin as an etch resist. After etching away unprotected copper, the tin gets stripped, leaving clean outer layer traces .
Another AOI pass verifies the outer layer quality .
That familiar green coating (or other colors) is solder mask . It protects copper from oxidation, prevents solder bridges during assembly, and provides electrical insulation between closely spaced traces .
Liquid photoimageable (LPI) mask is applied over the entire board, then exposed through a phototool. Unexposed areas wash away, leaving openings exactly where components will solder. A final thermal cure hardens the mask permanently .
White lettering and symbols get printed onto the board—component outlines, reference designators (R1, C5), logos, test points. This "map" guides assembly and troubleshooting .
Bare copper pads need protection to stay solderable. Common finishes include :
HASL (Hot Air Solder Leveling) – Cost-effective, good solderability
ENIG (Electroless Nickel Immersion Gold) – Flat surface, excellent for fine-pitch components and long shelf life
OSP (Organic Solderability Preservative) – Simple, low-cost, water-based
Immersion Silver/Tin – Alternative finishes for specific needs
The choice affects both cost and performance—ENIG can be 30% more expensive than HASL but is essential for BGA packages .
Every board gets tested for shorts and opens . Flying probe testers use moving probes to check every net—ideal for prototypes and complex boards. For high volume, dedicated test fixtures test boards in parallel .
Impedance testing verifies controlled impedance lines meet specifications—critical for high-speed designs .
X-ray inspection looks inside hidden joints for multilayer boards and BGAs .
Individual boards are separated from the manufacturing panel using CNC routers (for complex shapes) or V-scoring (for simple rectangles) .
After a final visual inspection (FQC), boards get cleaned, packaged in anti-static bags, and shipped .
Understanding the process is one thing. Finding a partner who executes it consistently is another. Here's what separates good fabricators:
Rigorous process control. They monitor critical parameters—etching rates, plating thickness, lamination temperature—and use statistical process control to maintain consistency .
Multiple inspection points. AOI at inner and outer layers, X-ray for hidden structures, electrical test for every board. They catch defects early, not after boards are finished .
Material expertise. They stock commonly used materials and understand how different laminates behave . For specialized needs like high-frequency or metal-core boards, they have proven processes .
Clear communication. They give DFM feedback, explain tradeoffs, and don't promise what they can't deliver .
Transparency. They'll let you visit, show you their equipment and workflows, and answer your questions honestly .
At Kaboer, we've been manufacturing circuit boards since 2009—sixteen years of experience turning designs into reality for companies around the world. We're based in Shenzhen, at the heart of global electronics manufacturing, with a factory equipped for the full spectrum of work.
What we make:
Flexible PCBs (FPC) : 1-20 layers, 0.075mm to 0.4mm thick
Rigid-Flex Boards: 2-30 layers, combining rigid stability with flexible interconnects
Rigid PCBs: 1-30 layers, from standard FR-4 to high-performance materials
HDI High-Density Boards: Microvias, fine lines, advanced stackups
High-Frequency Boards: Low-loss materials including Rogers and PTFE
Metal-Core Boards: For LED and power applications needing excellent heat dissipation
What sets us apart:
We don't just make boards—we assemble them too. Our in-house PCBA facility means you get fully assembled, tested modules ready for integration. One partner, one quality standard, no finger-pointing between fab and assembly.
We're certified to ISO 9001, IATF 16949, ISO 14001, UL, RoHS. IPC Class 2 and Class 3 when you need the highest reliability.
But more than the equipment list, we actually talk to you. We review your design before production. We flag potential issues. We suggest improvements. We're honest about what we can and can't do.
And we're in Shenzhen. If you want to see how your boards are made, you're welcome to visit. Walk the floor, meet the team, ask whatever you want.
Understanding the PCB production process helps you design smarter and avoid costly mistakes. The right partner makes all the difference.
If you need custom PCBs or have questions about your design, send us your Gerber files or requirements. We'll get back to you with a free quote within 2 hours.
Better yet—come visit us in Shenzhen. See for yourself how we turn designs into real, working boards.
