The computing power in your smartphone surpasses that of a room-sized supercomputer from fifty years ago. This astonishing evolution relies not only on the chips themselves but even more so on the PCBA technology that precisely connects and reliably operates these chips.

In the field of electronic device manufacturing, PCBA is the core physical carrier that connects innovative design with the final product. The vast majority of value in the global annual output of electronic products is "activated" and realized precisely through the PCBA stage. For electronic device manufacturers, understanding PCBA is not just about production; it touches the competitive core of product reliability, cost control, and time-to-market.

01 What Exactly is PCBA? The "Activation" Process of Electronics

PCBA stands for "Printed Circuit Board Assembly." To understand it, we must first distinguish between two often-confused concepts: PCB and PCBA.

• PCB: Think of it as a newly built "empty city" with only infrastructure. It has planned roads (circuit traces), reserved building lots (pads), and functional zones, but the city itself is static and non-functional. This is the bare circuit board.

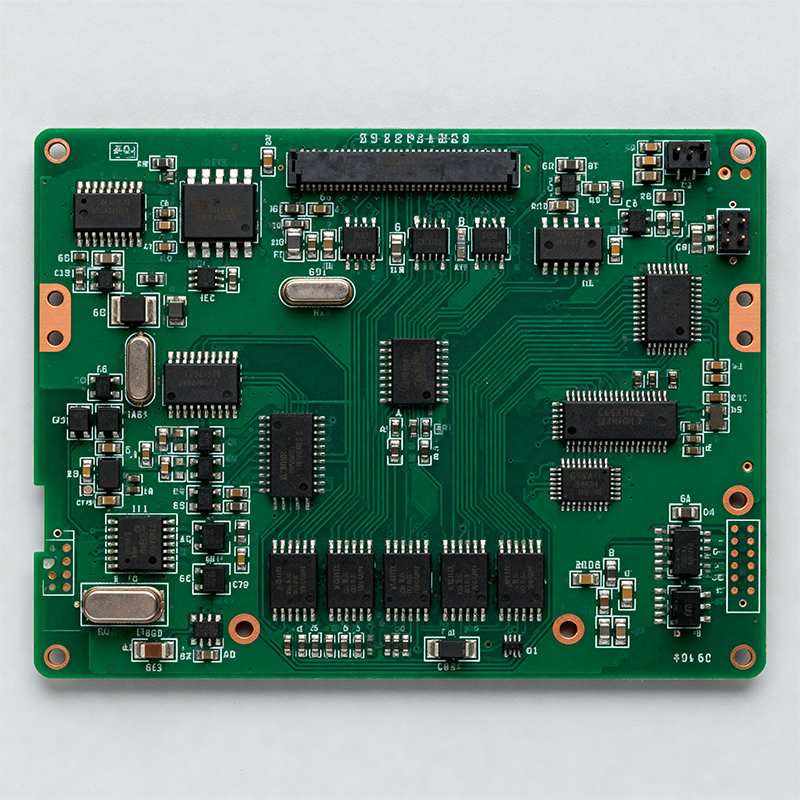

• PCBA: This is the state where the "empty city" is fully activated and operational. Various functional "residents" (electronic components) are precisely placed on their corresponding "lots" and connected via the "road" system, enabling the entire city to function and deliver its designed capabilities. PCBA is the complete circuit board assembly with all components mounted.

In short, PCBA = PCB + Components + Assembly Process + Test Verification. It is the substantive transformation step that turns a circuit design from a blueprint into working hardware, the starting point where an electronic product gains "life" and "intelligence."

02 Why is PCBA So Critical for Manufacturers? The Value Triangle

For electronic device manufacturers, especially brands seeking contract manufacturing services, the PCBA stage directly determines three core aspects of a product:

1. The Foundation of Function and Performance
A well-designed PCB can suffer from signal interference, power noise, or unreliable connections if the assembly process is poor, severely degrading product performance or causing failure. Professional PCBA, through precision placement, reliable soldering, and stringent testing, ensures every solder joint and signal path meets design specifications. It is the physical guarantee for stable product functionality.

2. The Core Stage of Quality Control
Most potential failures in electronics (like cold solder joints, shorts, wrong components) originate during assembly. Therefore, the PCBA process is the main battlefield for implementing quality control. Multiple checkpoints—including in-line optical inspection, X-ray inspection, flying probe testing, and functional testing—can control defect rates to extremely low levels (e.g., single-digit parts per million), significantly enhancing a product's long-term reliability and brand reputation.

3. The Key to Supply Chain and Efficiency
Opting for PCBA services means outsourcing complex challenges like component sourcing, inventory management, and production process optimization to a specialized partner. A proficient PCBA manufacturer leverages economies of scale and supply chain networks to stabilize component supply and optimize procurement costs. Highly automated production lines enable fast, high-volume, and consistent manufacturing, dramatically shortening the client's product development cycle.

03 The Core PCBA Manufacturing Process: A Seven-Step Precision Journey

Modern PCBA is a highly automated, streamlined precision manufacturing process, primarily consisting of the following key steps:

Step 1: Solder Paste Printing
This is the starting point. Using a laser-cut precision stencil, solder paste (a viscous mixture of microscopic solder spheres and flux) is accurately printed onto the PCB's pads. This is like applying precise doses of "adhesive" for the components to "settle."

Step 2: Component Placement
The pick-and-place machine is the "heart" of the production line. Using high-precision vision systems for alignment, it picks components like resistors, capacitors, and chips from reels and places them accurately onto the solder-pasted pads at speeds of tens to hundreds of thousands of components per hour. Placement accuracy can be within 25 microns (0.025 mm).

Step 3: Reflow Soldering
The populated PCB enters a reflow oven, following a strictly controlled "temperature profile." The solder paste melts under high heat and solidifies upon cooling, forming solid electrical and mechanical connections between the component leads and PCB pads. Controlling this process is crucial for soldering quality.

Step 4: Through-Hole Assembly (If Applicable)
For a few components unsuitable for surface mounting, such as high-power parts or certain connectors, through-hole technology is used. Their leads are inserted into PCB holes and soldered, typically via wave soldering or selective soldering.

Step 5: Cleaning and Conformal Coating
For products requiring high reliability (e.g., automotive, medical electronics), flux residues from soldering need to be cleaned off. Sometimes, a conformal coating is sprayed on to protect against moisture, corrosion, and dust, enhancing durability in harsh environments.

Step 6: Comprehensive Inspection and Testing
This is the final and most critical line of defense for quality. It includes:

• AOI (Automated Optical Inspection): Uses cameras to check for component presence, position, polarity, and solder joint appearance.

• X-Ray Inspection: Examines the quality of hidden solder joints under components like BGAs.

• ICT (In-Circuit Test): Uses a bed-of-nails fixture to check circuit connectivity and component values.

• FCT (Functional Test): Simulates the real operating environment to test the PCBA's overall functionality.

Step 7: Final Depaneling and Packaging
Individual PCBA units are separated from the production panel, undergo a final inspection, and are packaged in anti-static materials, ready for shipment.

04 Key Characteristics of Modern PCBA Manufacturing

Technological advancements have led to several defining features in modern PCBA, directly enhancing manufacturing capabilities and product standards:

High Density and Miniaturization
Component sizes continue to shrink (e.g., the 01005 metric is only 0.4mm x 0.2mm), and pin pitches become finer. This drives PCBA toward High-Density Interconnect development, packing more powerful functionality into smaller spaces.

Hybrid Technologies and Flexible Assembly
To meet the special demands of wearables, automotive sensors, etc., PCBA is no longer limited to rigid boards. Assembly techniques for rigid-flex boards and pure flexible circuits are maturing, allowing boards to bend and fold, greatly expanding product design possibilities.

Data-Driven Manufacturing and Traceability
Smart manufacturing permeates the entire PCBA flow. Through MES (Manufacturing Execution Systems), production data, test results, and material batch usage for every single PCBA can be fully traced. This not only facilitates quality analysis but is also essential for meeting stringent compliance requirements in industries like automotive and medical.

05 Looking Ahead: The Evolution of PCBA Technology

Looking toward 2026 and beyond, PCBA technology will continue to evolve, providing even stronger support for electronic innovation:

Deeper Process Integration
Technologies like **panel-level fan-out packaging are blurring the lines between traditional PCBA and semiconductor packaging, integrating some packaging steps into board-level assembly. The goal is higher performance, shorter interconnects, and lower cost.

Smarter Manufacturing Processes
Artificial Intelligence will deeply participate in process optimization. By analyzing vast amounts of production data, AI can predict and adjust process parameters in real-time, enabling adaptive "zero-defect" production. The accuracy and speed of machine vision inspection will also be greatly enhanced by AI.

Greener, Sustainable Manufacturing
Environmental regulations will drive transformation across the entire industry chain. PCBA manufacturing will increasingly adopt no-clean processes, low-energy soldering techniques, recyclable materials, and more eco-friendly chemicals, significantly reducing the environmental impact throughout the product lifecycle.

Though operating behind the scenes, PCBA is the physical foundation upon which smart hardware exists. It witnesses the magnificent transformation from a collection of disparate materials into a fully functional module. For electronic device manufacturers, a deep understanding of PCBA means mastering the core code that connects virtual design with a tangible product—a key competency for ensuring products come to market reliably, efficiently, and on time in a fiercely competitive landscape. Choosing to partner with a professional PCBA provider equates to fitting your product innovation with its most reliable "booster."
