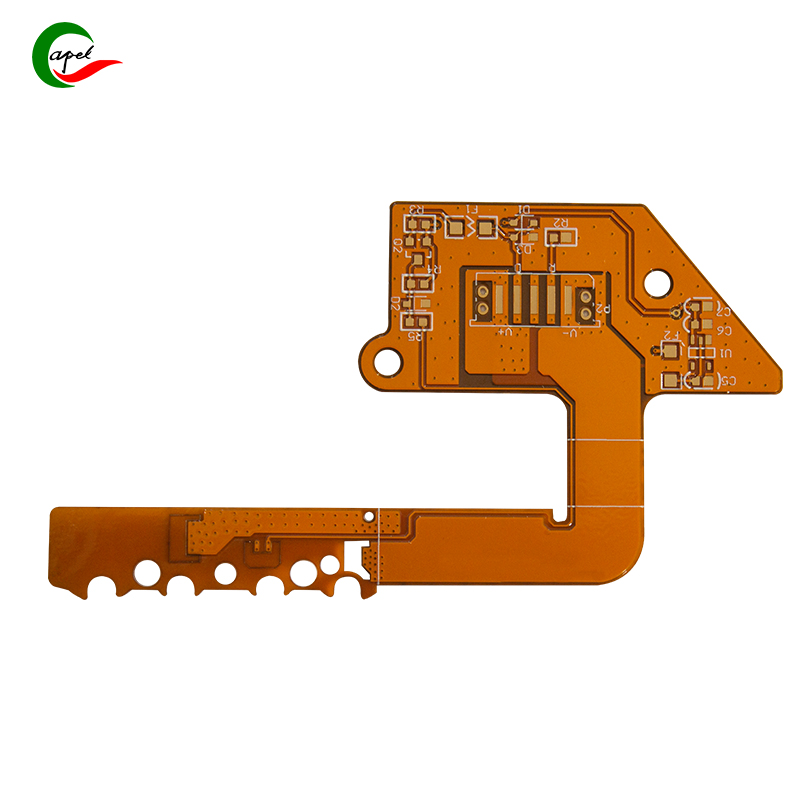

Flexible printed circuits (FPCs) are the unsung heroes of modern electronics, bending, twisting, and fitting into spaces where rigid PCBs can’t. But what makes these versatile circuits possible? Behind every FPC—whether in a foldable phone, a medical implant, or a car’s battery system—lies a carefully selected set of raw materials. These materials don’t just determine an FPC’s flexibility; they dictate its durability, performance, and ability to survive extreme conditions. Let’s dive into the core components that turn a concept into a functional flexible circuit.
1. The Substrate: The Flexible Foundation
At the heart of every FPC is its substrate—the insulating layer that gives the circuit its flexibility and structural integrity. For high-performance FPCs, one material reigns supreme:
Polyimide (PI) Film
- Why it matters: PI is the gold standard for FPC substrates, and for good reason. It withstands temperatures from -452°F (-269°C) to 752°F (400°C), making it ideal for applications like automotive engine bays or aerospace electronics. Its dielectric constant (3.0–3.5) ensures minimal signal loss, critical for 5G or radar systems.
- Thickness matters: PI films come in 12μm, 25μm, or 50μm thicknesses. Thinner films (12μm) boost flexibility for foldable devices, while thicker ones (50μm) add rigidity for components like battery management systems.
- Alternatives for low-stress uses: Polyester (PET) is cheaper but melts above 248°F (120°C), limiting it to toys or low-cost gadgets. For ultra-high-frequency applications (6G, satellite communications), liquid crystal polymer (LCP) substrates offer lower signal loss than PI.
2. Copper Foil: The Conductive Backbone
Without copper, an FPC is just a flexible sheet—copper foil is what carries electrical signals. But not all copper is created equal:
Rolled Annealed (RA) Copper
- The flexible choice: RA copper is made by rolling copper ingots into thin sheets, creating a dense, uniform grain structure. It’s 3–5 times more ductile than other types, surviving 100,000+ bends without cracking. This makes it perfect for foldable phones, robotic joints, or any FPC that bends repeatedly.
- Thickness options: 9μm (ultra-thin for wearables) to 35μm (for high-current applications like EV batteries).
Electrodeposited (ED) Copper
- The cost-effective workhorse: ED copper is produced by electroplating copper onto a drum, resulting in a tree-like grain structure. It’s cheaper than RA copper but less flexible—ideal for static FPCs like camera flex cables or infotainment systems that rarely bend.
Key spec: Adhesion strength
Whether RA or ED, copper must bond tightly to the substrate. A minimum peel strength of 0.8 N/mm prevents delamination, especially in high-vibration environments like cars or industrial machinery.
3. Adhesives: Holding It All Together—Or Not
Adhesives bond copper foil to the substrate, but their role is often overlooked until they fail:
Epoxy Adhesives
- The standard choice: Most FPCs use epoxy-based adhesives, which cure at 356°F (180°C) and offer good adhesion. However, they limit high-temperature performance—epoxy softens above 302°F (150°C), making them risky for underhood automotive use.
Adhesiveless Lamination
- The premium upgrade: High-end FPCs skip adhesives entirely, bonding copper directly to PI via sputtering or thermal lamination. This eliminates a potential failure point, boosting heat resistance and reducing signal loss. Adhesiveless FPCs are a must for 5G base stations or medical implants where reliability is non-negotiable.
4. Coverlay: The Protective Shield
Once the circuit is etched, a coverlay protects it from moisture, dust, and physical damage:
Polyimide Coverlay
- A match for PI substrates: PI coverlays (with or without adhesive) mirror the substrate’s heat resistance, making them ideal for harsh environments. They’re laser-cut to expose solder pads, ensuring precise openings (±0.05mm) for reliable component mounting.
Solder Mask
- For fine-pitch designs: Liquid photoimageable (LPI) solder masks are printed onto the FPC, then cured with UV light. They’re perfect for FPCs with tiny components (like 0.3mm pitch ICs), as they create a smooth, uniform protective layer.
5. Reinforcements: Adding Rigidity Where Needed
While flexibility is key, some FPC areas need rigidity—like connector tabs or component mounting zones:
FR4 Reinforcements
- The rigid-soft hybrid: FR4 (a glass-reinforced epoxy) is bonded to FPCs at stress points. It adds strength without sacrificing flexibility elsewhere, making it common in automotive FPCs where connectors plug into sensors or batteries.
Stainless Steel or Aluminum Foil
- For extreme durability: In industrial FPCs (e.g., factory robots), thin metal foils (100–200μm) reinforce areas prone to tearing, extending lifespan in high-wear environments.
6. Surface Finishes: Protecting Copper from Oxidation
Raw copper oxidizes quickly, ruining conductivity. Surface finishes solve this:
Electroless Nickel Immersion Gold (ENIG)
- The reliability champion: A thin gold layer (0.1–0.5μm) over nickel protects copper from corrosion. It’s ideal for automotive or aerospace FPCs, where connectors are plugged/unplugged repeatedly.
Organic Solderability Preservative (OSP)
- The cost-effective option: OSP is a thin organic film that burns off during soldering. It’s cheaper than ENIG but less durable, making it suitable for consumer electronics like smartphones.
Tin-Lead or Tin-Silver
- For high-volume soldering: These finishes improve solderability, critical for mass-produced FPCs like those in smartwatches or IoT sensors.
Why Material Selection Makes or Breaks an FPC
Choosing the right materials isn’t just about cost—it’s about performance. A medical FPC using PET instead of PI will fail during sterilization. An EV battery FPC with ED copper instead of RA will crack after months of vibration. Even small choices, like skimping on adhesion strength, can lead to field failures, recalls, or worse.
For engineers and manufacturers, the message is clear: Understand your FPC’s environment (temperature, vibration, chemical exposure) and performance needs (flex cycles, signal speed, current) before selecting materials. The best FPCs are built not just with quality components, but with components chosen for the job.
In the end, FPCs are only as good as their raw materials. And in a world where electronics keep getting smaller, smarter, and more flexible, those materials are the foundation of innovation.
