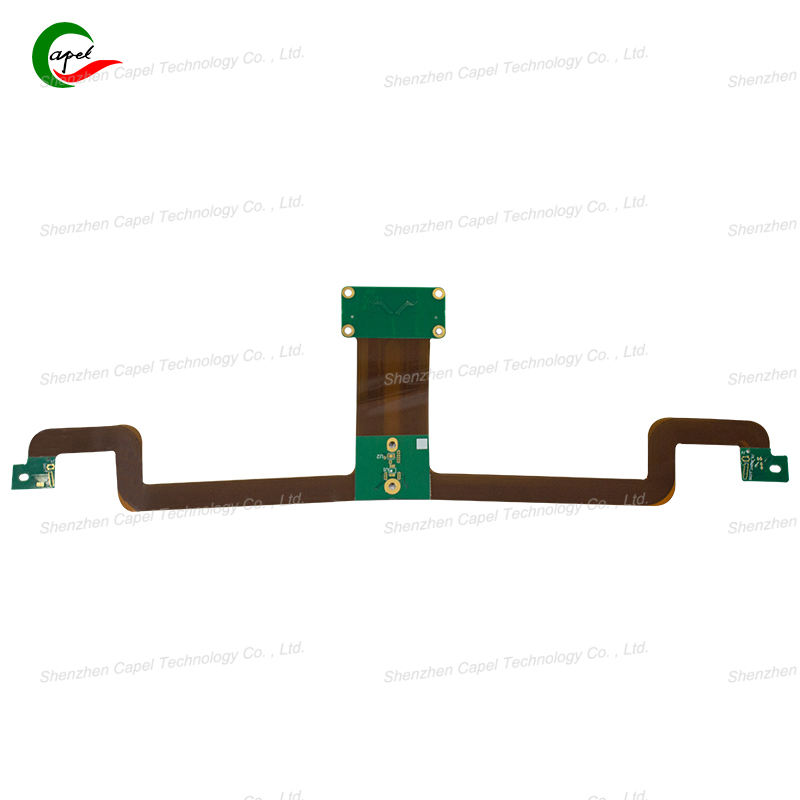

Rigid-flex PCBs blend the best of both worlds—rigid sections for stable component mounting and flexible zones for movement—but their assembly is trickier than standard PCBs. A misstep (like overheating a flex zone or misaligning components) can turn a high-potential board into one that cracks, shorts, or fails in real use. For engineers and assemblers, mastering these nuanced assembly steps is key to unlocking the board’s full potential. Below are actionable tips to ensure your rigid-flex PCBs are both durable and functional.

1. Handle Flex Zones with Care: Avoid Damage During Handling

• Use proper handling tools: Never pick up a rigid-flex PCB by the flex zone. Instead, hold it by the rigid sections or use anti-static tweezers with soft tips (to avoid puncturing the flex material). For large batches, use trays with separate slots for the flex zones—this prevents them from rubbing against each other and getting scratched.
• Avoid sharp bends during storage: When not assembling, store rigid-flex PCBs flat or rolled (for long flex zones) with a radius larger than the minimum bend limit (e.g., a 0.2mm thick flex zone needs a ≥1mm radius). Never fold flex zones at a tight angle—this can crack copper traces even before soldering.
• Real example: A manufacturer once damaged 20% of their rigid-flex PCBs by stacking them with flex zones pressed between rigid sections. Switching to slotted trays cut this damage to 1%.

2. Optimize Soldering: Protect Flex Zones from Heat

• Use temperature-controlled soldering tools: Set soldering irons to 320–350°C (lower than the 380°C often used for rigid PCBs) and limit contact time to 3–5 seconds per joint. For surface-mount components (SMDs) on rigid sections, use reflow ovens with a “soft profile”: slow heating (2°C/sec) and a peak temperature of 240–250°C (vs. 260°C for rigid PCBs).
• Mask flex zones during soldering: Cover flex zones with heat-resistant tape (like Kapton tape) before soldering nearby components. This blocks direct heat and prevents the flex material from warping. For example, when soldering a connector on a rigid section 2mm from the flex zone, Kapton tape keeps the flex zone’s temperature below 120°C (safe for polyimide).
• Avoid soldering directly on flex zones: Only mount components on rigid sections—soldering SMDs on flex zones adds weight and rigidity, making them prone to cracking when bent.

3. Align Components Precisely: Prevent Stress on Transition Zones

• Use alignment jigs for component placement: For parts near the transition zone (e.g., connectors, resistors), use custom jigs to ensure they’re positioned exactly as designed (within ±0.1mm). This avoids “offset stress”—when a component is 0.5mm off-center, it tugs on the flex zone every time the board bends.
• Keep components 3mm away from flex zones: Even with perfect alignment, components too close to flex zones transfer stress. A sensor placed 1mm from the flex zone might work initially, but after 1,000 bends, the stress will crack the solder joint. Moving it to 3mm away eliminates this risk.
• Use teardrop pads for trace connections: Design solder pads near the transition zone as teardrops (wide at the rigid end, narrow at the flex end). This spreads stress along the trace instead of concentrating it at the joint—critical for high-movement applications like wearable devices.

4. Reinforce Critical Areas: Boost Durability for High-Stress Use

• Add stiffeners to connector areas: Connectors (e.g., USB-C ports) on rigid sections near flex zones can pull the board when plugged/unplugged. Glue a thin stainless steel or PI stiffener (0.1–0.2mm thick) under the connector—this distributes the force and prevents the rigid section from warping.
• Use conformal coating for environmental protection: For PCBs used in humid, dusty, or sweaty environments (e.g., industrial sensors, wearables), apply a thin layer of conformal coating (silicone or urethane) over the entire board—pay special attention to the transition zone. This seals gaps between rigid and flex layers, preventing moisture from seeping in and causing corrosion.
• Reinforce flex zones with PI tape: For flex zones that bend frequently (e.g., in foldable devices), add a layer of thin PI tape over the traces. This adds abrasion resistance and prevents trace cracking—one manufacturer found this doubled the flex life of their PCBs (from 10,000 to 20,000 bends).

5. Test Rigorously Post-Assembly: Catch Issues Before Deployment

• Check for continuity and shorts: Use a multimeter to test all traces, especially those in flex zones—look for intermittent connections (a sign of a cracked trace) or unexpected shorts (from solder bridges). For high-frequency PCBs, use a network analyzer to verify impedance stability (flex zones can shift impedance if traces are damaged).
• Perform bend testing: Simulate real-world use with a bend tester—fold the flex zone to its maximum radius (e.g., 1mm for a 0.2mm thick zone) 10,000–20,000 times, then retest for continuity. If a trace fails after 5,000 bends, it means the assembly (e.g., soldering heat damage) weakened the flex zone.

• Inspect for delamination: Hold the PCB up to a light—any bubbles or gaps between rigid and flex layers mean delamination (often from overheating). Use a microscope to check for tiny cracks in the transition zone—these can grow over time and cause failure.
