Imagine you’re an engineer designing a foldable phone: you need a circuit that bends 200,000 times without breaking, but also supports high-speed data for the screen. Or you’re building a smartwatch: space is so tight, every millimeter counts, but the circuit must handle constant wrist movement. These are the moments when you face a critical choice: Rigid-Flex PCB or FPC (Flexible Printed Circuit)?
Both technologies enable flexibility, but they’re not interchangeable. Pick the wrong one, and you’ll end up with a product that fails (e.g., a smartwatch that dies after a month) or costs 30% more than needed. Let’s break down how to choose, using real-world examples.
Before choosing, you need to know what sets them apart:
-
FPC: A thin, fully flexible circuit made of polyimide or polyester. Think of it as a "flexible ribbon"—it bends easily but needs extra support (like a plastic frame) to hold components (e.g., chips, sensors). For example, Apple’s AirPods use FPCs to connect the battery to the speaker—they’re lightweight and cheap to produce.
-

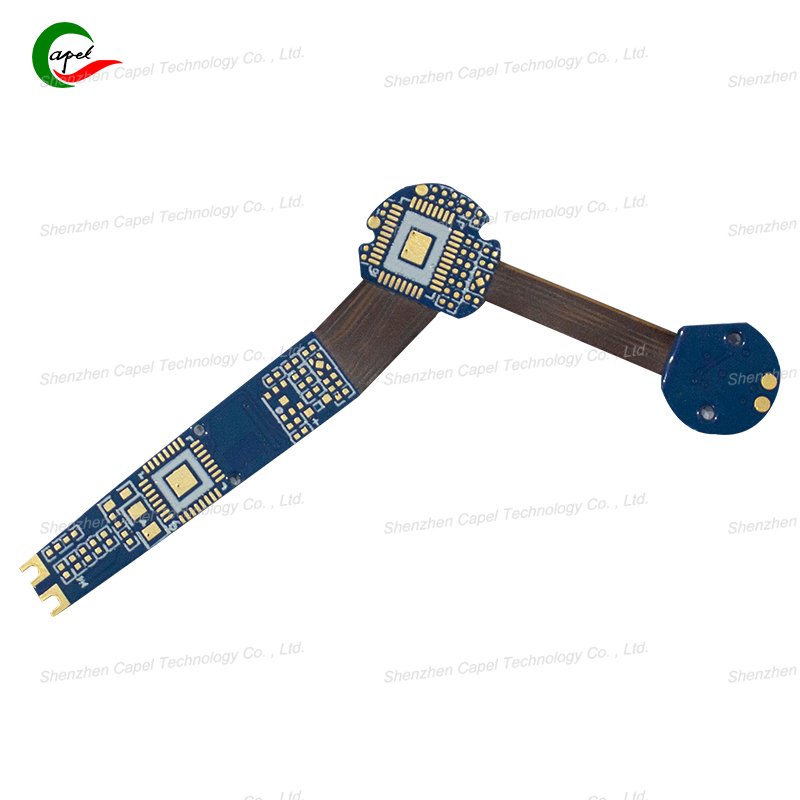

Rigid-Flex PCB: Combines rigid layers (like traditional PCBs) and flexible layers into one unit. It’s like a "hybrid"—the rigid parts hold heavy components (e.g., processors), while the flexible parts bend. Samsung’s foldable phones use rigid-flex PCBs: the rigid section houses the chip, and the flexible section bends with the screen.
The key gap? Component integration. FPCs need external support to mount parts, while rigid-flex PCBs can integrate everything in one piece.
If your product is ultra-compact (e.g., smart earbuds, tiny medical sensors), FPCs are better. They’re as thin as 0.05mm (thinner than a human hair) and weigh 50% less than rigid-flex PCBs. For example, Fitbit’s smallest fitness tracker uses FPCs—any rigid-flex PCB would be too bulky to fit on a wrist.
But if your product needs to hold multiple heavy components (e.g., a drone’s flight controller), rigid-flex PCBs win. They eliminate the need for wires or connectors to link separate rigid PCBs, saving up to 40% of internal space. DJI’s latest drones use rigid-flex PCBs to combine the GPS module, battery connector, and motor controls in one compact unit.
For products that bend constantly (e.g., foldable phones, flip cameras), rigid-flex PCBs are more durable. Their hybrid design handles repeated bending (up to 200,000 cycles) better than FPCs, which can crack if bent too often. Samsung tested both: FPCs in early foldable prototypes failed after 50,000 folds, while rigid-flex PCBs lasted 200,000+.
For products that bend occasionally (e.g., a laptop’s hinge area), FPCs work fine. They’re cheaper and simpler, and occasional bending won’t damage them. Lenovo uses FPCs in its laptop hinges—they’ve proven reliable for 5+ years of regular use.
If you’re making a high-volume, low-cost product (e.g., budget wireless earbuds), FPCs are cheaper. Their production process is simpler, and they cost 20-30% less than rigid-flex PCBs. Xiaomi’s entry-level earbuds use FPCs to keep prices under $30.
If you’re making a low-volume, high-performance product (e.g., medical monitors, aerospace devices), rigid-flex PCBs are worth the cost. They reduce assembly steps (no need to connect separate PCBs) and lower failure rates by 50%. Medtronic uses rigid-flex PCBs in its heart monitors—reliability is more important than cost here.
-
Mistake 1: Choosing FPCs for heavy component mounting. A startup once used FPCs to hold a drone’s processor (a heavy chip)—the FPC bent under the weight, causing the drone to crash. Rigid-flex PCBs would have fixed this.
-
Mistake 2: Overspending on rigid-flex PCBs for simple products. A brand used rigid-flex PCBs in basic smartwatches—they worked, but the extra cost made the product too expensive to compete. FPCs would have been sufficient.
Rigid-flex PCBs and FPCs aren’t "better" or "worse"—they’re designed for different jobs. FPCs shine in small, low-cost, occasionally bent products. Rigid-flex PCBs excel in high-performance, frequently bent products that need to hold heavy components.
The best choice? Ask yourself: How much space do I have? How often will it bend? What’s more important—cost or durability? By answering these, you’ll pick the technology that makes your product reliable, affordable, and ready for real-world use.
