You've definitely seen heating elements before — electric blankets, car seat heaters, lab equipment that warms up test tubes. But have you ever wondered what a heater would look like if it could bend, roll up, and stick to any surface? That's exactly what a flexible heater is.

It's not a rigid metal plate. It's a thin, bendable heating element that can conform to curved surfaces, wrap around pipes, or even be embedded in fabric. It delivers heat precisely where it's needed.

In this guide, I'll explain what flexible heaters are, how they work, what types exist, and where they're used. Plain English, no fluff.

1. What Exactly Is a Flexible Heater?

A flexible heater is basically a heating pad that bends. It's typically made of three layers:

• Insulating substrate: The outer layers — usually polyimide or silicone rubber — that provide insulation and heat resistance.

• Heating element: A metal layer in the middle that generates heat when electricity flows through it.

• Leads/connectors: To connect to a power source.

The working principle is the same as an electric blanket — current passing through a resistive material generates heat (Joule's Law). What makes it special: it can be extremely thin — less than 0.1mm — and bend into almost any shape.

Based on the insulating material, flexible heaters fall into two main categories: polyimide flexible heaters and silicone rubber flexible heaters.

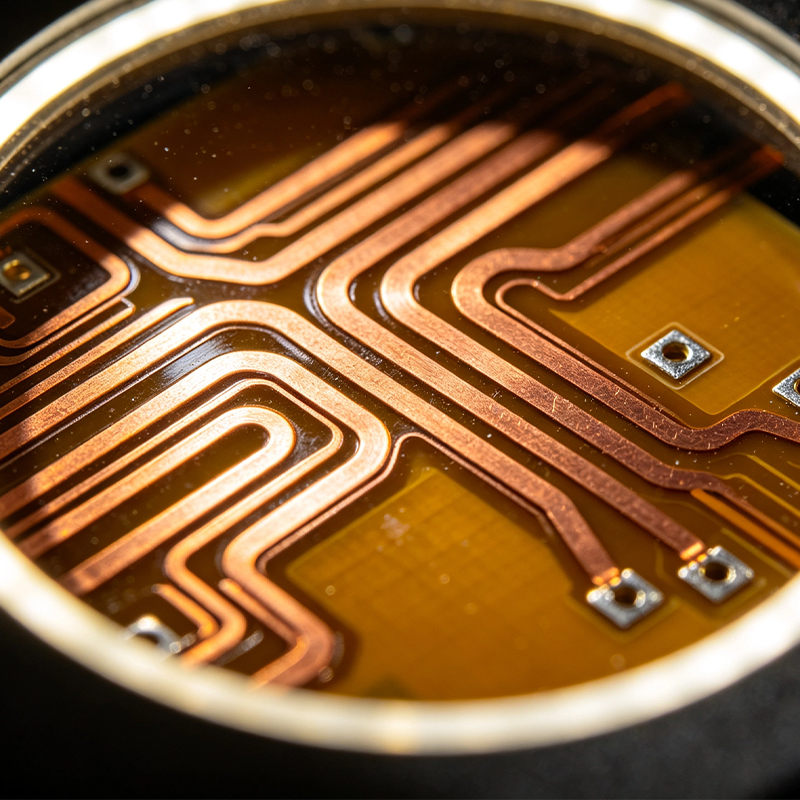

2. Polyimide Flexible Heaters (Kapton) — The Precision Choice

Polyimide flexible heaters (often called Kapton heaters) use polyimide film as the insulator. One word describes them: thin.

Specs:

• Thickness: 0.09-0.27mm

• Operating temperature: -40°C to 260°C (long-term use recommended below 150°C)

• Max power density: 1.0 W/cm²

• Thermal conductivity: 0.2-0.35 W/(m·K)

Advantages:

• Extremely thin and lightweight — can be under 0.1mm, barely takes up space

• High temperature resistance — up to 260-310°C

• Excellent flexibility — can bend around tight corners

• Low outgassing — ideal for medical and aerospace applications

• Chemical and abrasion resistant

Disadvantages:

• Expensive — Kapton heaters typically cost more than silicone

• Lower power density — max 1.0 W/cm²

Best for: Applications requiring ultra-thin profiles, precise temperature control, and high temperatures — medical devices, aerospace, military, precision instruments.

3. Silicone Rubber Flexible Heaters — The Durable Workhorse

Silicone rubber flexible heaters use silicone rubber as the insulator. They're thicker, tougher, and more powerful.

Specs:

• Thickness: 1.0-2.0mm (including silicone layer)

• Operating temperature: -40°C to 300°C (long-term use recommended below 200°C)

• Max power density: 2.0 W/cm²

• Thermal conductivity: 1.0-1.5 W/(m·K)

Advantages:

• Higher power density — up to 2.0 W/cm², double that of polyimide

• Higher max temperature — up to 300°C

• Better mechanical strength — withstands 200-350 kg/cm² compressive force

• Moisture and chemical resistant

• Can be made very large — up to 18"×24" or larger

Disadvantages:

• Thicker — 1-2mm, much thicker than polyimide

• Less flexible

• Heavier

Best for: High-power, large-size, durable applications — industrial equipment, automotive, food processing, oil and gas.

4. Two Types of Heating Elements — Etched Foil vs. Wire Wound

Beyond the substrate material, flexible heaters also come in two heating element styles.

Etched Foil: A thin metal foil is chemically etched to create a circuit pattern. Advantages: extremely thin, even heat distribution, precise resistance control. Etched foil on polyimide can be as thin as 0.005 inches (0.127mm), while wire-wound heaters are typically 0.032 inches or thicker. Trace spacing can be as tight as 0.004 inches for very uniform heating.

Wire Wound: Resistive wire is wound into a coil and embedded in the insulator. Advantages: lower cost, suitable for large sizes. Heaters larger than 10 inches (254mm) typically use wire wound construction.

In short: etched foil for precision, thinness, and uniform heat; wire wound for large sizes and cost sensitivity.

5. Where Are Flexible Heaters Used? Everywhere.

Flexible heaters are far more common than you might think.

Medical Devices:

• Patient warming and diagnostic equipment

• PCR testing equipment heating

• Temperature control in medical devices

Automotive:

• Seat heating and steering wheel warmers

• Mirror defrosting

• EV battery preheating

• Diesel exhaust fluid freeze protection

Aerospace:

• Aircraft de-icing

• Satellite component warming

• Weight-sensitive applications — every kilogram saved reduces fuel costs

Consumer Electronics:

• Wearable devices — Team USA's 2018 Winter Olympics jackets had built-in flexible heaters

• LCD display heating

• Bathroom mirror defoggers

Industrial and Food:

• Food processing temperature control

• Industrial equipment heating

• Laboratory equipment

6. How to Choose a Flexible Heater

Choosing a flexible heater comes down to three factors.

Temperature: How hot does it need to get? Polyimide handles up to 260°C; silicone rubber handles up to 300°C.

Space and weight: Extremely tight on space and weight? Choose polyimide (ultra-thin and lightweight). More room and need high power? Choose silicone rubber.

Environment: Chemical exposure? Repeated bending? Outgassing requirements? Choose the material that fits your environment.

One-sentence summary: Precision, thin, expensive → polyimide. High power, durable, cheaper → silicone rubber.

7. Summary

A flexible heater is a bendable electric heating pad that uses resistance heating and can conform to almost any surface.

Two main types: Polyimide (Kapton) is ultra-thin and lightweight, ideal for precision applications. Silicone rubber is thicker, more durable, more powerful, and better for industrial use. Heating elements come in etched foil (thin and uniform) and wire wound (cheaper and larger).
