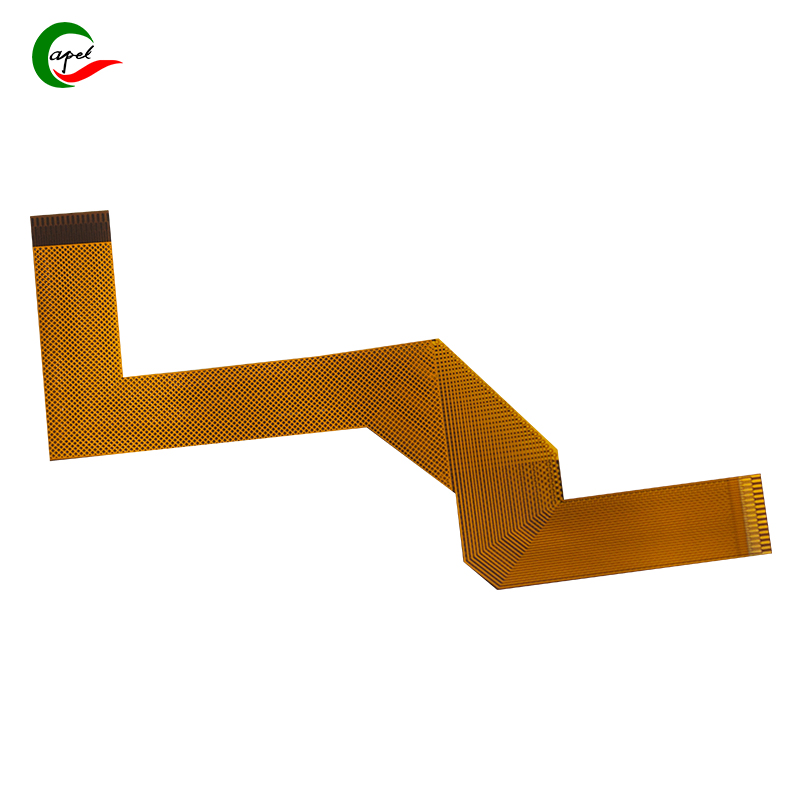

EMI-Proof FPCs: The Silent Guardians of Self-Driving Cars

Why Your Autonomous Vehicle's Safety Hinges on These Bendable Circuits

Imagine your self-driving car suddenly braking for an obstacle that doesn't exist. Or worse - failing to detect a real danger because of electromagnetic "static" in its systems. This isn't science fiction - it's the daily battle fought by flexible printed circuits (FPCs) in autonomous vehicles. These unsung heroes work behind the scenes to keep signals clean when it matters most.

The Invisible Threat: EMI in Autonomous Driving

Modern vehicles are electromagnetic warzones:

• Electric motors generate interference equivalent to small radio stations

• 5G antennas blast high-frequency signals

• Multiple computers process data simultaneously

FPCs face unique challenges:

• Thinner construction = Less natural shielding

• Complex routing = Often passes near noise sources

• Mission-critical signals = LiDAR, radar, and camera data can't afford glitches

Real-world consequences:

• A 2ms delay in obstacle detection = 4 extra feet at highway speeds

• False positives trigger unnecessary braking

• Corrupted sensor data creates "ghost" objects


How Engineers Build EMI-Resistant FPCs

1. The Noise-Canceling Secret: Differential Pairs

• Works like noise-canceling headphones for circuits

• Uses two wires carrying inverted signals

• Receivers subtract interference automatically

• Key requirement: Matched lengths within 5mm

2. The Shielding Playbook

3. Material Science Breakthroughs

• Advanced Polyimide: Specially formulated to minimize signal distortion

• Rolled Copper: 30% cleaner signals vs standard copper

• Nanocomposite Shields: Next-gen materials blocking wider frequency ranges

Proving It Works: Automotive-Grade Testing

FPCs don't get installed until surviving:

• Extreme temps: -40°F to 257°F cycles

• Vibration tests: Simulating pothole-filled roads

• EMC chambers: Blasted with intentional interference

• 100,000+ bend cycles: Ensuring longevity

The Road Ahead

Next-generation solutions:

• AI-powered EMI prediction during design

• Self-monitoring circuits that report interference

• "Smart" shielding that adapts to noise levels
