You know that feeling when a board comes back from fabrication and everything just works? The impedance is right, the signals are clean, and you don't have to chase mysterious failures. A lot of that success traces back to something you probably didn't think much about—the copper clad laminate.
Here's the thing about PCBs: they're only as good as the materials they're made from. You can have the cleanest layout in the world, but if the base material isn't right, you're going to have problems. Signal loss, impedance mismatches, delamination, warping—it all starts with the laminate.
Let's talk about what copper clad laminate actually is, why it matters for your products, and how to choose the right one without overcomplicating things.
In plain English, copper clad laminate (CCL) is the raw material that becomes your PCB. It's a sandwich: an insulating core with a thin layer of copper bonded to one or both sides .
The core is typically made of fiberglass cloth impregnated with epoxy resin—that's your FR-4. But depending on what you're building, it could be polyimide for flexible circuits, PTFE for high-frequency stuff, or metal for applications that need to shed heat .
The copper becomes your traces, pads, and planes. Its thickness, measured in ounces per square foot, determines how much current you can push and how fine you can etch .
Think of it this way: the laminate is the foundation. Everything else—the etching, the plating, the assembly—sits on top of that. If the foundation is wrong, nothing else matters.
Not all laminates are created equal. Here's a practical breakdown of what's out there:
FR-4 is the default for a reason. It's fiberglass reinforced with epoxy resin, flame retardant (that's what the FR stands for), and offers a solid balance of performance and cost .
Standard FR-4 has a glass transition temperature (Tg) around 130-140°C. That's fine for most consumer electronics, industrial controls, and general-purpose boards .
But if you're doing lead-free assembly or putting boards in hot environments, standard FR-4 might not cut it. High-Tg variants (170-180°C) handle thermal stress better and resist warping during reflow .
When you're pushing signals above 1 GHz, FR-4 starts to lose its charm. Its dielectric constant (Dk) and loss tangent (Df) aren't stable enough, and signal integrity suffers .
For RF and microwave applications, you need materials like:
PTFE (Teflon) – Very low loss, but mechanically soft and tricky to process
Ceramic-filled laminates – Better dimensional stability than pure PTFE, still excellent high-frequency performance
PPO/PPE blends – Lower loss than FR-4, easier to process than PTFE
These materials cost more, but when you're doing 5G, radar, or high-speed digital, there's no substitute.
If your board needs to bend, you're looking at polyimide or polyester films with copper bonded on . These flexible copper clad laminates (FCCL) are thin, lightweight, and can withstand millions of flex cycles.
You'll find them in wearables, medical devices, and any application where space is tight and movement is required.
When heat is the enemy, metal-core PCBs save the day. An aluminum or copper base acts as a built-in heatsink, pulling heat away from hot components .
LED lighting and power electronics rely on these. Standard FR-4 would cook itself; metal-core keeps things running.

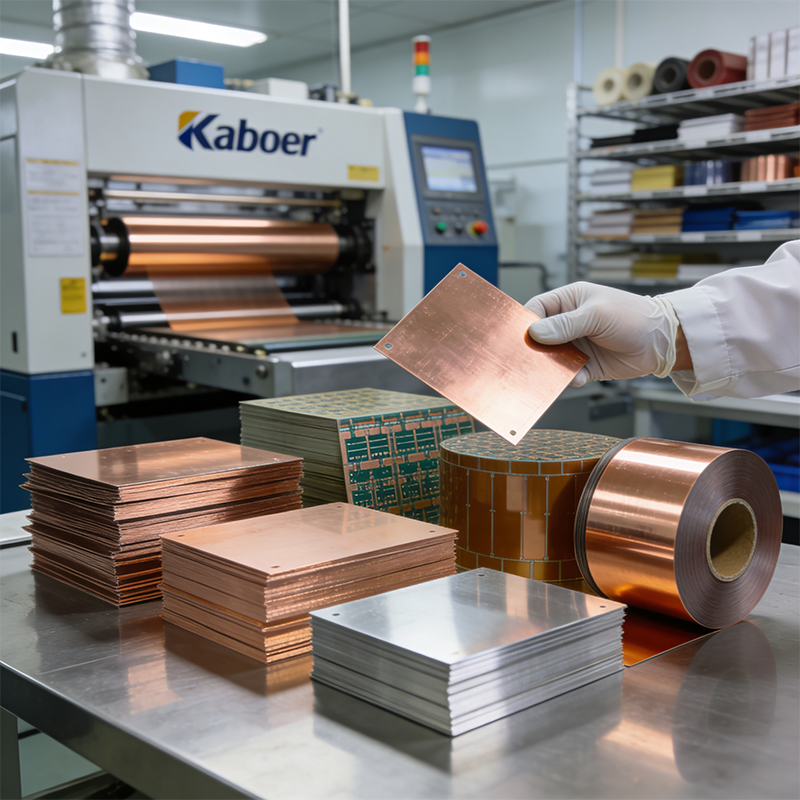

Environmental regulations are driving demand for halogen-free laminates. Instead of brominated flame retardants, they use phosphorus or nitrogen-based alternatives . They meet RoHS and REACH requirements and are increasingly common in consumer products sold into Europe..jpg "覆铜层压板 (2).jpg")
When you're comparing datasheets, here's what to look at:
Tg is the temperature at which the laminate starts to soften. Below Tg, it's rigid and stable. Above Tg, it expands and loses mechanical strength .
For standard FR-4, Tg is around 130-140°C. High-Tg materials go to 170°C or higher. If you're doing lead-free assembly with peak reflow temperatures around 260°C, you want high-Tg material to avoid warping and delamination .
This is the temperature at which the laminate actually starts to chemically break down. Td is typically above 300°C for quality materials—well above soldering temperatures, so you're safe during assembly .
Dk determines how fast signals travel. Lower Dk means faster propagation, which is why high-speed designs use low-Dk materials .
FR-4 has a Dk around 4.2-4.5 at 1 MHz. High-frequency materials can go down to 2.2-3.5, depending on the formulation .
Here's the catch: Dk changes with frequency and temperature. A material that's stable across your operating range is worth paying for.
Df measures signal loss in the material. Lower is better .
FR-4 has Df around 0.018-0.025. High-performance materials go down to 0.002-0.004. For high-speed digital or RF, those losses add up fast.
The copper matters too. Standard electrodeposited (ED) foil works for most applications. But for fine-pitch work or high frequencies, you might need :
Reverse-treated foil – Smoother surface, better for impedance control
Rolled annealed (RA) foil – More ductile, used in flexible circuits
Copper thickness is measured in ounces per square foot. 1 oz (about 35 µm) is standard. For high-current boards, you might go to 2 oz, 3 oz, or even thicker .
Here's a practical approach to material selection:
Start with the basics:
What's the operating temperature range?
What frequencies are you running?
How much current do you need to carry?
Does the board need to be flexible?
What's your cost target?
Consumer electronics, general-purpose – Standard FR-4 (Tg 130-140°C) is fine .
Automotive under-hood – High-Tg FR-4 (170°C+) to handle the heat .
High-speed digital (1-10 Gbps) – Low-loss materials with Df < 0.015. Mid-loss FR-4 variants can work, but you need to be careful with impedance control .
RF and microwave (>10 GHz) – PTFE or ceramic-filled laminates. Low Dk, very low Df .
High-power LED or power electronics – Metal-core laminates (aluminum or copper base) .
Wearables, medical implants – Flexible polyimide laminates .
Some materials are readily available; others have long lead times. If you're in a hurry, standard FR-4 from a reputable supplier is your safest bet.
Specialty materials—PTFE, ceramic-filled, high-Tg—may require longer procurement cycles. Plan accordingly.
Using standard FR-4 for high-temperature applications. If your board sees sustained heat above 130°C or goes through lead-free assembly, standard FR-4 can warp or delaminate. Go with high-Tg material.
Ignoring Dk tolerances. FR-4's dielectric constant varies between batches and manufacturers. If you're doing controlled impedance designs, you need tight Dk control. Specify it, and test your first articles.
Forgetting about moisture sensitivity. Laminates absorb moisture, and that moisture turns to steam during soldering. The result? Popcorning—delamination that looks like blisters. Bake your boards before assembly if they've been sitting around .
Choosing copper weight without thinking about etch compensation. Thicker copper means you need wider traces to maintain impedance. Plan your stackup accordingly.
Not talking to your fabricator. Your manufacturer has experience with what works. Ask them. They'll tell you if your material choice is practical or a nightmare.
Here's something you don't see on a datasheet: consistency.
A good laminate isn't just about hitting spec numbers. It's about hitting them board after board, batch after batch. Poor quality materials have variations in thickness, Dk, and copper adhesion that show up as yield losses and field failures .
Quality laminates resist moisture, maintain their properties over time, and hold up to thermal cycling. When you're building products that need to last—automotive, medical, industrial—cutting corners on laminate is false economy.
At Kaboer, we've been working with copper clad laminates since 2009. We've seen what works and what doesn't across thousands of projects—consumer electronics, automotive, medical, industrial.
We maintain relationships with quality suppliers and stock a range of materials to meet different needs:
Standard FR-4 for everyday boards
High-Tg FR-4 when things get hot
Flexible polyimide for bendable circuits (1-20 layers, 0.075-0.4mm thick)
Rigid-flex combinations (2-30 layers) for designs that need both stability and flexibility
High-frequency laminates (Rogers, PTFE) for RF and high-speed digital
Metal-core materials for LED and power applications
We also offer full PCBA services—we don't just make your boards, we assemble them. That means we understand how material choices affect assembly yield and long-term reliability.
We're certified to ISO 9001, IATF 16949, ISO 14001, UL, and RoHS. IPC Class 2 and Class 3 when your application demands it.
And we're in Shenzhen. If you want to see how we select materials and build boards, you're welcome to visit. Walk the floor, meet the team, see for yourself.
Material selection doesn't have to be overwhelming. Start with your requirements, understand the options, and talk to people who've been there before.
If you need help selecting the right copper clad laminate for your design, send us your requirements. We'll get back to you with recommendations and a free quote within 2 hours.
Better yet—come visit us in Shenzhen. See how we turn raw laminates into finished, working boards.
