Let’s be honest—in a world where everyone is talking about 32-layer behemoths and ultra-complex HDI boards, the humble double sided PCB (or 2-layer board) doesn't always get the spotlight. But here’s the reality: it remains the most widely used, cost-effective, and versatile solution in the electronics industry.
Whether you're building an industrial sensor, a consumer gadget, or part of a complex automotive system, getting your double-sided board "right" is the difference between a product that lasts for years and one that fails in the field.
Unlike a single-layer board, a double-sided PCB has traces and components on both sides of the substrate. The magic happens through Plated Through Holes (PTH). These are small, copper-lined tunnels that allow signals and power to jump from the top layer to the bottom layer seamlessly.
In 2026, the demand for these boards hasn't shrunk; it has evolved. Manufacturers are now pushing for tighter tolerances, thinner copper, and better thermal management—even on "simple" 2-layer designs.
Many of our clients come to us asking for a double sided PCB, but what they actually need is a double-sided flexible circuit.

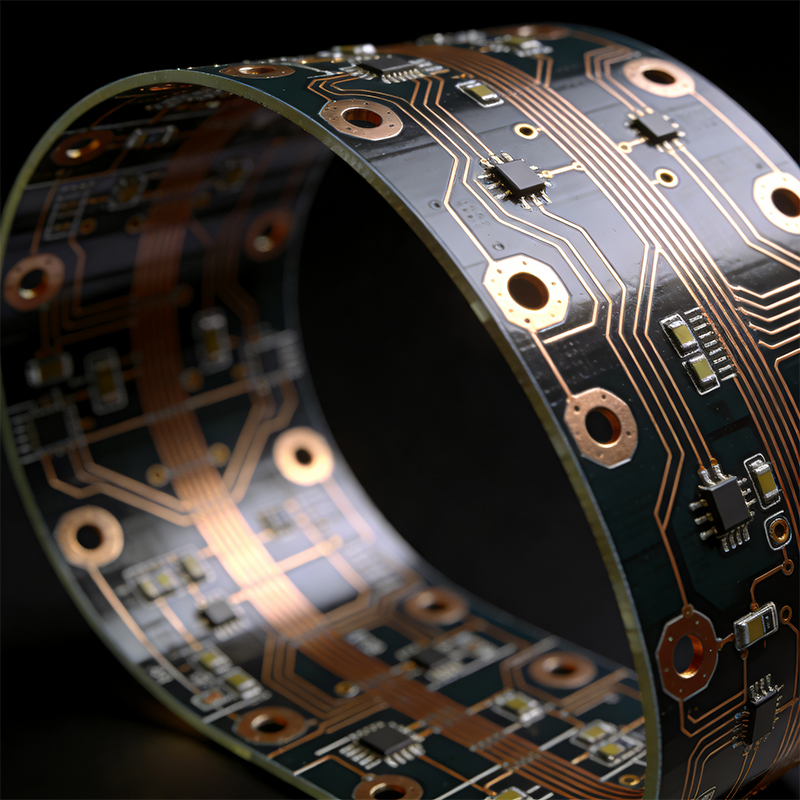

Flexible PCBs take the 2-layer logic to a whole new level. Imagine a circuit that can bend, twist, and fit into a tiny medical wearable, yet still maintains signal integrity across both sides. When you move from rigid to flex, you have to worry about things like "bend radius" and "coverlay alignment."
If your manufacturer only knows how to handle rigid FR4, your flex project is in trouble. That’s why we leverage our expertise in custom flexible PCBs and rigid-flex boards to ensure that even your simplest double-sided designs are built with high-end precision.
A bare board is just a piece of plastic and copper until it’s assembled. When you're looking for PCBA (Printed Circuit Board Assembly) services, the double-sided nature adds a layer of complexity:
Two-Sided SMT: Components have to be soldered on both sides, often requiring two passes through a reflow oven.
Component Shadowing: If your layout isn't optimized, larger components on one side can interfere with the soldering of smaller parts on the other.
Trace Density: As designs get smaller, fitting everything on two layers becomes a puzzle. This is where HDI (High-Density Interconnect) techniques—like fine lines and microvias—start to bleed into traditional 2-layer manufacturing.
Working with a manufacturer in China shouldn't be a gamble. We know that for our partners in the US, Europe, and beyond, reliability is the #1 priority.
DFM (Design for Manufacturing) Support: We don't just print what you send. Our engineers review your 2-layer design to see if we can optimize it for better yield and lower cost.
Top-Tier Materials: Whether it’s standard FR4, high-TG materials, or specialized polyimide for flex circuits, we don't cut corners on the substrate.
One-Stop Shop: From the first prototype of a double sided PCB to the mass production of complex high-speed PCBA, we handle the entire lifecycle.
Don't let the "simplicity" of a 2-layer board lead to a low-quality product. Whether you need a standard rigid board or a high-performance rigid-flex solution, we are here to help.
Stop settling for "good enough." Send us your Gerber files today. Let’s talk about your project and show you how our precision manufacturing can take your electronics to the next level.
