Let’s be honest—anyone can make a simple two-layer board these days. But when you’re cramming high-speed processors, Wi-Fi modules, and power management into a device the size of a smartwatch, a standard board just won't cut it. You need a multilayer PCB that doesn't just "work," but excels under pressure.

At our facility, we see it every day: a brilliant design on paper that turns into a manufacturing nightmare because the layer stack-up wasn't optimized for real-world physics. If you’re looking to scale your next electronic product, understanding the "guts" of your multilayer board is the first step.

Why Multilayer Isn't Just "More Layers"

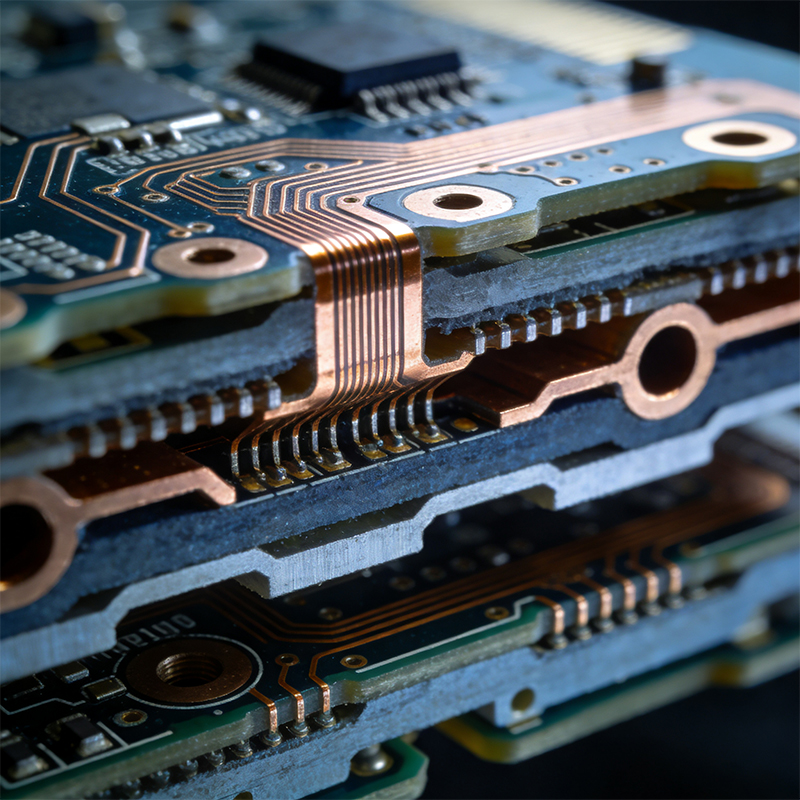

In plain English, a multilayer PCB is like a club sandwich of conductive copper and insulating prepreg. But as you move from 4 layers to 12, 20, or even 32 layers, the engineering challenges don't just add up—they multiply.

• Signal Integrity: In high-speed designs (think HDI or high-frequency boards), traces on different layers can "talk" to each other in ways you don't want. Proper ground plane placement is the only thing standing between a clean signal and total chaos (EMI).

• Heat Management: More layers mean more trapped heat. Without a smart thermal via strategy, your high-performance chips will throttle or, worse, fail prematurely.

• Registration Accuracy: When you’re pressing 12 layers together, even a microscopic misalignment can ruin the whole batch. This is where "cheap" shops fail and professional fabricators shine.


The Complexity of Flex and Rigid-Flex Multilayer Boards

This is our bread and butter. Many manufacturers can do rigid multilayer boards, but things get tricky when you introduce flexibility.

Designing a multilayer flexible PCB or a rigid-flex board requires a deep understanding of material stress. If you don't balance the copper weight across the layers, the board will twist like a potato chip during reflow. We help our clients design balanced stack-ups that stay flat and functional, no matter how complex the geometry.

Why Overseas OEMs Partner With Us

We know the drill. You’re looking for a partner in China who actually communicates, understands your Gerber files, and doesn't cut corners on the substrate.

1. DFM (Design for Manufacturing) First: We don't just hit "print." Our engineers review your multilayer stack-up to spot potential delamination or signal issues before we start production.

2. Advanced HDI Capabilities: Using laser-drilled microvias, we can achieve densities that standard mechanical drilling simply can't touch.

3. One-Stop PCBA: Why manage three vendors when you can have one? From the bare multilayer board to the final SMT assembly, we handle the entire lifecycle.

Ready to Build Your Next Big Thing?

Whether you are in the middle of a complex medical device prototype or scaling up an industrial IoT controller, the reliability of your multilayer PCB is non-negotiable.

Don't leave it to chance. Send us your Gerber files and BOM today. Let’s have a real conversation about your stack-up, your materials, and how we can get your product to market faster and with zero defects.
