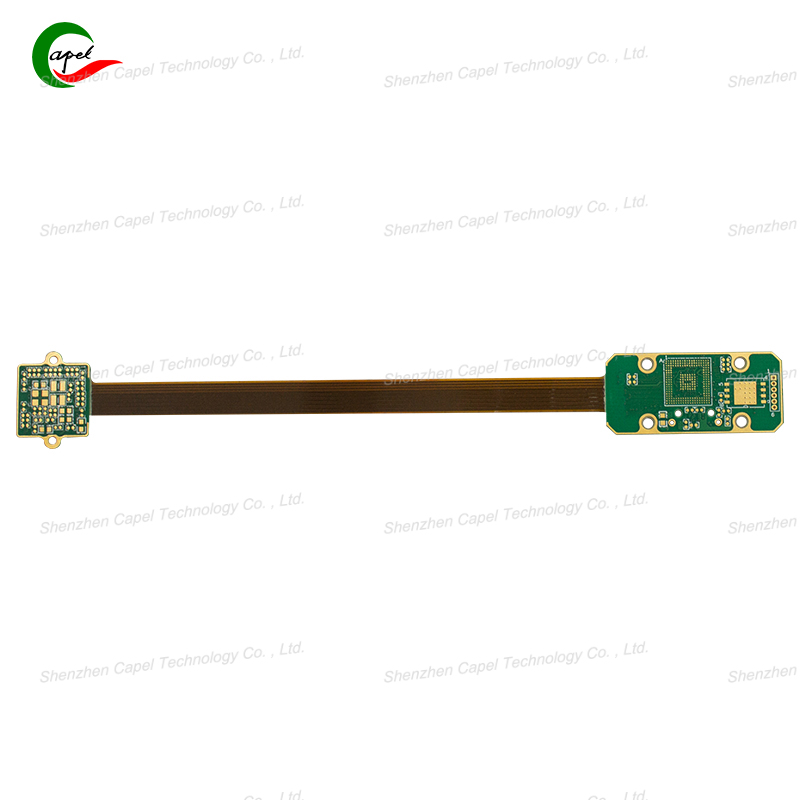

Flexible Printed Circuits (FPCs) are the backbone of modern electronics—powering everything from foldable phones to medical wearables. But their flexibility, which makes them so valuable, also brings unique manufacturing headaches. Below, we break down the most common pain points in FPC production, paired with real-world solutions that factories and engineers rely on.
Delamination—when the flexible substrate (like polyimide) separates from the copper layer—is one of the most frustrating issues. It usually happens during soldering or after repeated bending, and it can render an FPC completely useless. For example, a Chinese factory producing smartwatch FPCs once saw a 15% delamination rate after customers reported their devices failing within 3 months of use.
Solution: Optimize Adhesive and Lamination Parameters
- Use high-temperature-resistant adhesives (e.g., acrylic-based adhesives with Tg values above 180°C) instead of cheap epoxy adhesives, which break down under heat.
- Adjust lamination pressure and time: Most FPCs need 20–30 kg/cm² of pressure at 180–200°C for 60–90 minutes to ensure full bonding.
- Post-lamination inspection: Use a microscope to check for tiny air bubbles (a major cause of delamination) before moving to the next step.
After adopting these steps, the Chinese factory cut its delamination rate to less than 1%.
FPCs often require ultra-thin copper lines (as narrow as 0.05mm) for miniaturized devices. But over-etching (lines become too thin or break) or under-etching (residue remains, causing short circuits) is common. A U.S.-based IoT sensor maker once wasted $50,000 worth of FPCs because of inconsistent etching.
Solution: Control Etching Chemistry and Speed
- Use acid-based etchants (e.g., ferric chloride) with a controlled concentration (38–42 Baumé) and temperature (25–30°C)—higher temps speed up etching but increase inconsistency.
- Install automated etching machines with conveyor belts that move at a steady 1.5–2 m/min (adjust based on line width: thinner lines need slower speeds).
- Test with "etching coupons": Small FPC samples with test lines to check etching quality before processing full batches.
The U.S. maker now has a 99.2% success rate with fine-line etching.
Solder joints on FPCs are prone to cracking because the flexible substrate bends. A European automotive supplier faced recalls when FPC solder joints in GPS modules failed after 6 months of car vibrations.
Solution: Use Flexible Solder and Proper Reflow
- Choose lead-free solder pastes with high flexibility (e.g., Sn-Ag-Cu-Bi alloys) that can withstand bending without cracking.
- Optimize reflow soldering profiles: Heat the FPC slowly (2–3°C/second) to 230–240°C (peak temp) and cool down at the same rate—rapid temperature changes stress joints.
- Add solder masks: Cover exposed copper (except pads) with a flexible solder mask (e.g., epoxy-based) to protect joints from moisture and mechanical stress.
The supplier’s recall rate dropped to zero after these changes.
FPCs are thin (as thin as 0.1mm) and easy to tear, crease, or contaminate during handling. A Japanese consumer electronics firm lost 8% of its FPCs to damage during assembly—mostly from workers using bare hands or sharp tools.
Solution: Improve Handling Protocols
- Use anti-static tweezers and vacuum pick-and-place machines (instead of hands) to move FPCs—this avoids oil, dirt, and physical damage.
- Store FPCs on rigid carriers (e.g., plastic trays with soft foam) instead of stacking them directly—stacking causes creases that weaken the substrate.
- Train workers to check for damage (tears, fingerprints) before each process—reject damaged FPCs early to avoid wasting time on further production.
The Japanese firm reduced handling damage to 0.5% within 2 months.
FPC manufacturing challenges are manageable—they just require attention to detail and process control. By optimizing materials, using automated equipment, and strict inspection, factories can cut waste, reduce costs, and produce reliable FPCs. For engineers and manufacturers, the key is to test solutions on small batches first, then scale up—this minimizes risk and ensures long-term success.
