Let's be honest. You've probably experienced that sinking feeling when you send off a PCB design and get an email back saying, "There's a problem with your files." Maybe it's a missing layer. Maybe the drill file is in inches when your board was designed in millimeters. Whatever it is, it means delays, extra emails, and a whole lot of frustration.

The culprit? Almost always, it's the Gerber file. Or rather, how it was generated.

Whether you call them Gerbers, GBR files, or just "the files you send to the fab," these little ASCII text documents are the universal language of PCB manufacturing. Get them right, and your boards come back exactly as designed. Get them wrong, and you're looking at rework, extra costs, and a timeline that slips.

I've been in this industry long enough to have seen every Gerber mistake imaginable. Let me walk you through what you actually need to know—no fluff, just practical advice from someone who's processed tens of thousands of these files.

---

What Exactly Is a Gerber File?

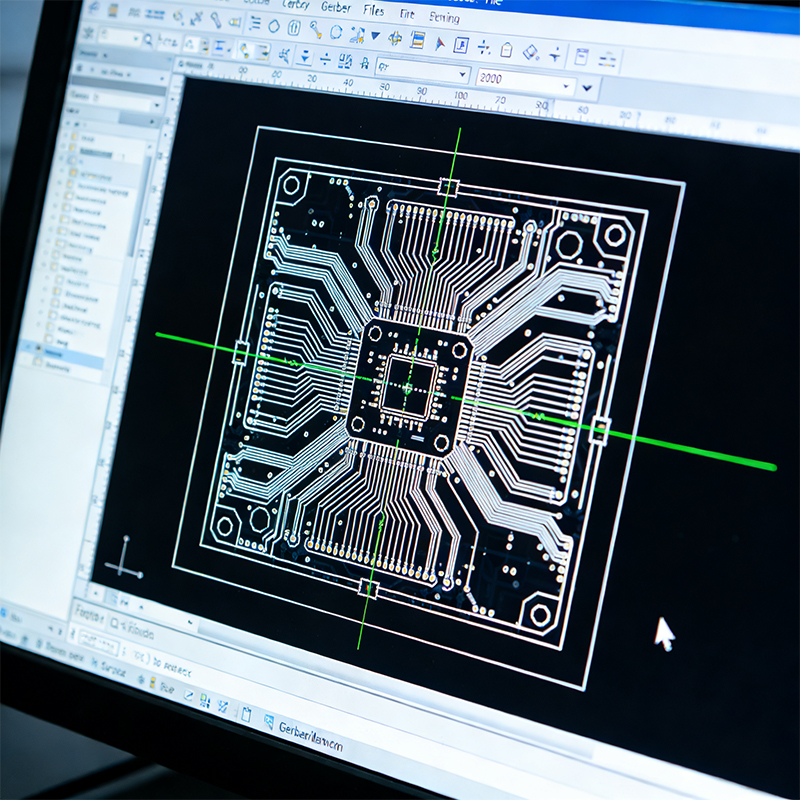

A Gerber file (often called a "Gerber" or "GBR file") is the industry-standard format used to describe every physical aspect of a printed circuit board for manufacturing . Think of it as the digital blueprint that tells fabrication machines exactly where to put copper, where to apply solder mask, where to print silkscreen, and where to drill holes .

Each Gerber file represents one layer of your PCB. A simple two-layer board might generate a handful of files. A complex 12-layer HDI board could easily generate 20+ separate Gerber files, each containing precise vector instructions for a specific manufacturing step.

The format has been around since the 1970s, originally developed by Gerber Systems (hence the name). Today it's maintained by Ucamco, and it's the one format that virtually every PCB fab in the world accepts .

---

The Three Main Gerber Formats You'll Encounter

Not all Gerber files are created equal. Over the years, the format has evolved:

For 99% of projects, RS-274X is what you want. It's widely supported, self-contained, and eliminates the common problem of missing aperture files .

---

What Files Make Up a Complete Gerber Set?

A complete set of Gerber files for a PCB includes multiple individual files, each describing a different aspect of your board :

1. Copper Layer Files

These define the actual conductive traces and pads. For a two-layer board, you'll have top and bottom copper files. For multilayer boards, you'll have files for each internal layer as well .

2. Solder Mask Files

These specify where solder mask should be applied—and more importantly, where it should be opened to expose pads for soldering .

3. Silkscreen Files

These contain the text and symbols printed on the board: component outlines, reference designators, polarity markers, logos, and test point labels .

4. Drill Files (usually .drl, not .gbr)

While technically not Gerber files, drill files are always submitted alongside them. They specify hole locations, sizes, and whether holes are plated or non-plated .

5. Board Outline File

This defines the physical shape of your PCB—its edges, cutouts, and slots .

A typical file set might look something like this:

---

How to Generate Gerber Files Correctly

This is where most issues happen. Here's a quick rundown for the most common EDA tools:

In KiCad

1. Open the PCB Editor, go to File → Fabrication Outputs → Gerbers (.gbr)

2. Select your output folder

3. Choose the layers you need (F.Cu, B.Cu, F.Mask, B.Mask, F.Silkscreen, B.Silkscreen, Edge.Cuts—and inner layers if applicable)

4. Check "Use Protel filename extensions" (most fabs prefer this)

5. Click Plot

6. Then click Generate Drill Files (Excellon format, millimeters, absolute coordinates)

In Altium Designer

1. Go to File → Fabrication Outputs → Gerber Files

2. Set precision to 2:5

3. Select the layers to include (use "Used On" in Plot Layers)

4. Ensure aperture definitions are embedded

5. Generate NC Drill files separately (Excellon format)

In Eagle

1. Open the CAM Processor

2. Load the "gerber.cam" job file

3. Process the job to generate files

Pro tip: Always run a Design Rule Check (DRC) before generating Gerbers. It's amazing how many people skip this step and end up with boards that violate their own fab's minimum clearance rules .

---

Common Gerber File Errors and How to Fix Them

After processing thousands of customer files over the years, here are the most frequent issues we see:

1. Missing Drill Files

You'd be surprised how often designers send copper layers and silkscreens but completely forget the drill file. Without it, nobody knows where to drill holes .

Fix: Always generate NC Drill files alongside your Gerbers and double-check they're in the output folder.

2. Layer Misalignment

Sometimes the top copper and bottom copper don't line up correctly. This usually happens when files are generated with different origins or units .

Fix: Always use the same origin point and coordinate system for all layers. Absolute coordinates are safer than relative.

3. Wrong File Format

Sending RS-274D files without the accompanying aperture files is a classic rookie mistake .

Fix: Stick with RS-274X. It's self-contained and universally accepted.

4. Silkscreen Over Pads

When silkscreen text or lines overlap with solder pads, it can cause soldering problems .

Fix: Most EDA tools have an option like "Subtract soldermask from silkscreen." Use it. Also, visually inspect your Gerbers before sending.

5. Incomplete Board Outline

If the board outline isn't a single, continuous closed shape, the fab has to guess where your board actually ends .

Fix: Check that your Edge.Cuts layer forms a watertight outline with no gaps.

6. Unit Mismatches

Designing in mm but generating Gerbers in inches (or vice versa) can lead to boards that come out the wrong size .

Fix: Be consistent. Know what your fab expects and stick to it.

7. Incorrect Layer Stackup Order

Sending files in the wrong order can confuse the fabricator about which layer is which .

Fix: Name your files clearly and include a readme or fabrication drawing specifying the layer stackup.

---

How to Validate Your Gerber Files Before Sending

Before you hit "upload," do yourself a favor and actually look at the files you're sending. Free Gerber viewers make this easy:

• Gerbv – Open-source, runs on Windows/Linux/macOS

• GC-Prevue – Industry standard, advanced measurement tools

• Online viewers – Quick checks without installing anything

When reviewing, pay attention to :

• Does the board outline exist and is it continuous?

• Are all internal cutouts and slots showing correctly?

• Do drill holes align with pads?

• Are vias tented or exposed as intended?

• Is silkscreen legible and not overlapping critical features?

• Are all required layers present?

If you spot issues, go back to your source design, fix them, and re-export. It's always cheaper to catch errors now than after your boards are already in production.

---

The DFM Review: What Happens After You Send Files

When you submit Gerber files to a professional PCB manufacturer like Kaboer, they don't just blindly start production. First, your files go through a Design for Manufacturability (DFM) review .

This automated and manual check verifies that your design can actually be built with standard processes. It looks at:

• Minimum trace widths and spacing

• Drill-to-copper clearances

• Solder mask registration

• Impedance requirements (if specified)

• Copper balance (to prevent warping)

• And dozens of other parameters

If something doesn't match the fab's capabilities, you'll get a report with recommendations. This is normal. It's not a rejection—it's a quality check that saves you from getting unmanufacturable boards.

---

Why Gerber Files Matter for Your Bottom Line

Here's the reality: clean Gerber files mean faster turnaround and lower costs.

Every time your files have issues, someone has to stop and ask questions. That's time. If the issues are serious enough, you might need to regenerate and resubmit. That's more time. If the issues slip through to production, you could end up with non-functional boards. That's real money.

Taking an extra 15 minutes to validate your Gerber files before sending them can save you days of delay and hundreds (or thousands) of dollars in wasted PCBs.

---

How Kaboer Helps You Get Gerber Files Right

At Kaboer, we've been manufacturing custom PCBs since 2009. Over the years, we've processed Gerber files for tens of thousands of projects—simple two-layer boards, complex HDI designs, flexible circuits, rigid-flex assemblies, and everything in between.

What Makes Us Different

We don't just take your files and run them. Our engineering team performs a thorough DFM review on every single project. We check for the issues listed above and more. If something doesn't look right, we flag it early and work with you on solutions—not after your boards are already in trouble.

We speak your language. When you send us your Gerber files, our engineers understand what they're looking at. We know how to interpret your design intent and can spot potential issues before they become problems.

We're equipped for the full spectrum. We work with Gerber files for everything:

• Rigid PCBs: 1-30 layers, standard FR-4 to high-performance materials

• Flexible PCBs (FPC) : 1-20 layers, 0.075mm to 0.4mm thick

• Rigid-Flex Boards: 2-30 layers

• HDI High-Density Boards: Microvias, fine lines down to 2mil

• High-Frequency Boards: Rogers, PTFE, other low-loss materials

• Full PCBA services with in-house assembly

We're certified where it matters. ISO 9001, IATF 16949, ISO 14001, UL, RoHS. Our processes are documented, repeatable, and audited.

We're transparent. Our Shenzhen factory is open to clients. If you want to see how we process Gerber files and turn them into real boards, you're welcome to visit. Walk the floor, meet the team, ask whatever you want.

---

Ready to Send Your Gerber Files with Confidence?

Gerber files are the bridge between your design and a finished PCB. Get them right, and everything flows smoothly. Get them wrong, and you're in for delays, extra costs, and frustration.

If you have questions about your Gerber files, or need custom PCB/PCBA solutions that start with accurate file handling, send us your Gerber file or requirements. We'll reply with a free quote and technical guidance within 2 hours.

Better yet—come visit our Shenzhen factory. See for yourself how we review Gerber files and turn them into boards that work, every time.
