How to Solder Surface Mount Components: A Practical Guide

Date: 2026-03-11

Let's be honest. Soldering surface mount components can feel like performing microsurgery. Those tiny parts—0402s that look like specks of pepper, QFPs with pins so fine you can barely see them—they intimidate even experienced engineers sometimes.

I've been there. Hunting for a dropped component on the floor, cleaning up bridges with a magnifying lamp, wondering why that perfectly placed part suddenly shifted during reflow. Over the years, I've learned a few things that make the process less frustrating and more repeatable.

Whether you're prototyping in your lab or just want to understand what happens when you send boards to a professional assembler, this guide will walk you through how to solder surface mount components—the right way.


The Tools You'll Need

Before you touch a component, make sure you have the right gear. Using the wrong tools is the fastest path to damaged parts and frustration.

Essential tools:

  • Soldering iron with a fine tip. A temperature-controlled station is non-negotiable. For most SMD work, 600-700°F (315-370°C) works well with leaded solder. For lead-free, you'll need 650-750°F (340-400°C) .

  • Solder wire – 0.015" to 0.020" diameter is ideal for most surface mount work. Thinner for ultra-fine pitch, thicker for larger components.

  • Flux – This is not optional. Even if your solder has flux core, adding liquid or gel flux makes a huge difference in joint quality. It cleans surfaces and helps solder flow where it should.

  • Tweezers – A good pair of anti-static tweezers with fine points. You'll use them constantly.

  • Magnification – A stereo microscope or at least a good quality magnifying lamp. You can't inspect what you can't see.

  • Hot air rework station – Essential for components with hidden pads (QFNs, BGAs) and for removing parts without damage.

  • Cleaning supplies – Isopropyl alcohol (90% or higher) and lint-free wipes to remove flux residue.

  • Solder wick – For cleaning up mistakes and removing excess solder.

  • Flux remover – Optional but helpful for final cleaning.


Preparing for Success

Half the battle in soldering surface mount components happens before you even pick up the iron.

1. Clean the board. Even new PCBs can have oxidation or contamination. A quick wipe with isopropyl alcohol removes oils and improves wetting .

2. Secure the board. Use a PCB holder or tack it down with tape. Your board should not move while you're working.

3. Apply flux to the pads. A thin layer of liquid flux on all the pads you'll be soldering makes a massive difference. It doesn't take much—just enough to cover the copper .

4. Tin one pad. For components with multiple leads, tinning one pad (adding a small amount of solder) makes placement much easier. You'll heat that pad while positioning the component, letting it hold itself in place while you solder the rest.


Method 1: Hand Soldering with an Iron

This works best for components with visible leads—SOICs, SOT-23s, QFPs, and larger discretes like 0805 and 1206 passives.

For Two-Terminal Components (Resistors, Capacitors)

  1. Tin one pad as described above.

  2. Using tweezers, place the component on its pads. The tinned pad should be slightly heated to tack the part in place.

  3. Check alignment. The component should be centered on both pads.

  4. Solder the other side. Touch the iron to the pad and component termination simultaneously, feed a tiny amount of solder, and remove the iron.

  5. Go back and reflow the first side if needed.

Pro tip: Hold the component with your tweezers while soldering the first side. If you're not confident, use a tiny amount of tacky flux or even a toothpick to hold it in place.

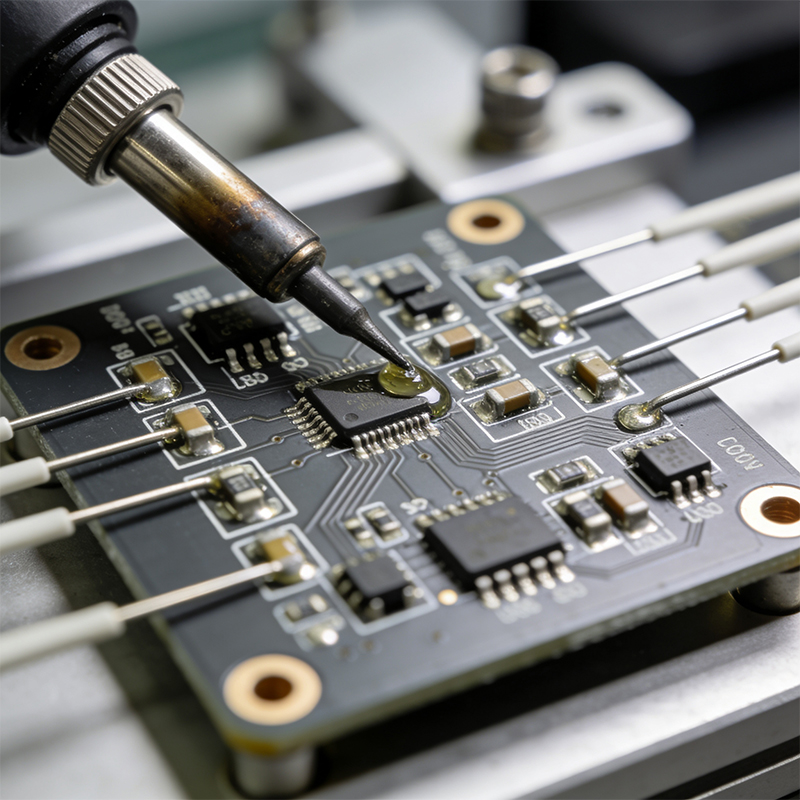

For Multi-Lead Components (ICs, QFPs)

  1. Tin one corner pad.

  2. Place the component and align it carefully. This is where magnification helps—make sure every pin is centered on its pad.

  3. Tack the opposite corner pad to hold the component firmly in place.

  4. Check alignment again. If it's off, reheat the tacked pads and adjust. Fixing alignment now is easy; fixing it after all pins are soldered is a nightmare.

  5. Solder all remaining pins. Work systematically around the component. Apply flux to all pins first, then touch each pin with the iron, feeding just enough solder to form a clean fillet.

  6. Clean up any bridges with solder wick or by dragging the iron with flux.

The drag soldering technique: For fine-pitch QFPs, apply plenty of flux, then load your iron with a small ball of solder. Drag the tip gently across all pins. The solder should flow onto each pin without bridging. This takes practice but is incredibly fast once mastered.
如何焊接表面贴装元件 (2).jpg


Method 2: Hot Air Soldering

For components with hidden pads (QFNs, BGAs, MLF packages), an iron won't reach. You need hot air.

  1. Apply solder paste to the pads. You can use a stencil or a syringe.

  2. Place the component using tweezers. The paste will hold it in place.

  3. Apply flux around the component edges.

  4. Preheat the board gently to avoid thermal shock.

  5. Apply hot air, moving in a circular pattern to heat evenly. Watch for the component to "settle" as the paste melts—this is called "reflow dance."

  6. Remove heat and let the board cool naturally.

Warning: Hot air can easily blow small components off the board if you're not careful. Start with low airflow and increase only as needed.


Common Mistakes and How to Fix Them

Bridging (Solder connecting adjacent pins)

What it looks like: A blob of solder shorting two or more pins together.

How to fix: Apply fresh flux to the bridge. Clean your iron tip. Touch the bridge with the iron—capillary action should pull the excess solder onto your tip. If it persists, use solder wick. Place the wick over the bridge, heat with your iron, and watch the excess get absorbed .

Insufficient Solder (Dry joints)

What it looks like: Dull, grainy connections that don't wet the pad properly.

How to fix: Apply flux and reheat the joint, feeding a tiny amount of fresh solder if needed. The joint should become shiny and smooth.

Tombstoning (Component standing on end)

What it looks like: A chip component (usually a resistor or capacitor) standing vertically on one pad.

How to fix: Prevent this by ensuring symmetrical pad design and even heating. If it happens, you can sometimes reheat both pads simultaneously with a wide tip or hot air and push the component down with tweezers. But often, it's easier to remove and replace.

Lifted Pads

What it looks like: The copper pad peeling off the board.

What causes it: Too much heat, too long, or mechanical force. This is often fatal to the board. Prevention is the only real cure—don't linger too long on any pad, and be gentle .

Cold Joints

What it looks like: Dull, rough, or cracked connections.

How to fix: Apply flux and reheat. If the joint doesn't reflow properly, add a tiny amount of fresh solder.


When DIY Soldering Makes Sense

Hand-soldering surface mount components is a valuable skill for:

  • Prototyping and small batches – When you need 1-5 boards quickly

  • Rework and repair – Fixing a single component on an otherwise good board

  • Learning and experimentation – Understanding how components behave helps you design better

But let's be realistic. For anything beyond a few boards, or for fine-pitch components like 0.4mm BGAs, hand-soldering becomes impractical. The defect rate climbs, and the time invested grows exponentially.


How Professionals Do It

At Kaboer, we've been soldering surface mount components since 2009. Our Shenzhen factory runs SMT lines that place and reflow thousands of components per hour with precision that hand-soldering can't match.

Here's what professional assembly gives you:

Consistency. Every joint is identical. No variation from one board to the next.

Precision. Pick-and-place machines position components within microns. Hand placement can't compete.

Controlled reflow. Multi-zone ovens follow precise thermal profiles, eliminating the temperature variations that cause tombstoning and cold joints.

Inspection. AOI (Automated Optical Inspection) checks every joint on every board. X-ray looks inside hidden joints like BGAs and QFNs. Hand-soldered boards rarely get this level of scrutiny.

Scalability. The 10th board is as good as the 1st. The 1000th board is identical.

Our Soldering Capabilities

We handle the full spectrum of surface mount components:

  • Passive components from 01005 (0.4mm × 0.2mm) up

  • Fine-pitch ICs including QFPs, SOPs, and TSSOPs

  • BGAs and QFNs with hidden connections requiring X-ray inspection

  • Mixed technology combining SMT and through-hole on the same board

  • Flexible PCBs and rigid-flex assemblies requiring specialized handling

Quality Systems That Matter

We're certified to ISO 9001, IATF 16949 (automotive), and ISO 13485 (medical) . Our processes are documented, repeatable, and audited.

Every board we assemble goes through multiple inspection stages:

  • SPI (Solder Paste Inspection) before components are placed

  • AOI after reflow to catch visible defects

  • X-ray for hidden joints when required

  • Functional testing to verify the board works as designed

One-Stop Service

Because we fabricate our own PCBs—flexible, rigid-flex, HDI, high-frequency, and metal-core—and assemble them under one roof, there's no middleman, no finger-pointing between fabrication and assembly . One team, one quality standard, one point of accountability.

See for Yourself

We're in Shenzhen, and we welcome overseas customers to visit our factory. Walk the floor, meet the team, see how we solder surface mount components with precision and care.


Know When to DIY and When to Call the Pros

Soldering surface mount components is a skill worth having. It saves time on prototypes, lets you experiment, and gives you a deeper understanding of electronics.

But when you're ready to move beyond the bench—when you need consistent quality, faster turnaround, or help with components that are too small to handle—professional assembly is the answer.

If you'd rather skip the learning curve, or need professional soldering for your custom PCBs, send us your requirements. We'll reply with a free quote and prototyping plan within 2 hours.

Better yet—come visit our Shenzhen factory. See for yourself how we turn designs into boards that work, every time.
