Last year, I was on-site at a manufacturing plant in Texas that used our industrial temperature sensors. The plant manager, Carlos, pulled me aside, frustrated. “We spent $12,000 last quarter just fixing these sensors,” he said, pointing to a broken unit. “The wires keep coming loose during machine vibrations, and every repair shuts down the assembly line for 2 hours.”
I looked at the sensor—its rigid PCB was connected to the machine with three separate wires, each secured by a tiny connector. It was a classic design we’d used for years, but in a factory full of shaking machines and daily wear, it was a disaster. “We need to rethink the wiring,” I told Carlos.
That’s when we switched to Flexible Printed Circuits (FPCs) for the sensors. Six months later, Carlos called to say the repair costs had dropped to $800—and the assembly line hadn’t shut down once for sensor issues. The FPCs didn’t just fix the wiring problem; they cut the two biggest expenses for industrial sensors: installation time and maintenance headaches.
Industrial sensors live in tough environments—vibrations, dust, and constant use. Traditional wiring (rigid PCBs + loose wires + connectors) isn’t built for this, and it shows in the costs:
A single traditional sensor needs 3–5 wires connected to the machine’s control system. Each wire requires stripping, crimping, and securing with a connector—work that takes a trained technician 45 minutes to an hour per sensor.
At the Texas plant, they had 50 sensors. “Installing all of them took 40 technician hours,” Carlos said. “That’s $2,000 in labor alone, not counting the time the line was down for installation.”
Wires and connectors hate factory vibrations. Over time, connectors loosen, wires fray, and the sensor stops working. Each repair means:
-
Paying a technician ($100–$150/hour) to diagnose and fix the issue.
-
Shutting down the production line (costing $1,000–$5,000/hour in lost output).
-
Replacing damaged wires/connectors (small cost, but adds up).
“We had a sensor fail every 2 weeks on average,” Carlos said. “Each repair cost $300 in labor plus $5,000 in line downtime. It was killing our profit margin.”
Traditional wiring has room for human error: a wire connected to the wrong terminal, a loose crimp, a damaged connector. These mistakes don’t show up until the sensor fails—often hours after installation.
“We once installed 10 sensors, and 3 failed the next day because a technician mixed up two wires,” Carlos said. “Fixing them took 3 hours and cost $15,000 in downtime. I wanted to pull my hair out.”
FPCs turn a messy, time-consuming installation into a quick, one-step process. Here’s how they do it:

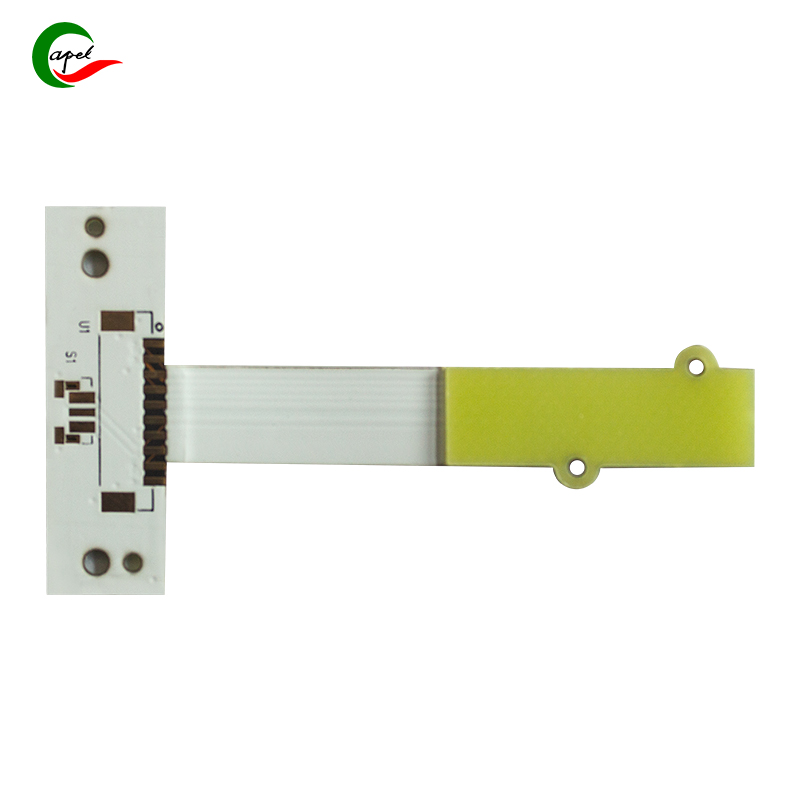

An FPC has all the necessary traces (power, signal, ground) printed on a single thin film. Instead of connecting multiple wires, you just plug the FPC’s pre-attached connector into the machine’s port—done in 5 minutes.
We replaced the traditional wires with FPCs that had a pre-soldered connector. “Installing 50 sensors took 8 hours total—down from 40,” Carlos said. “Labor costs dropped to $400, and we didn’t shut the line down once. It was like magic.”
Factories have tight spaces—pipes, gears, and machine parts get in the way of wiring. Traditional wires need to be routed around these obstacles, adding time to installation. FPCs bend and flex, so they fit right into tight gaps without reworking the machine.
One sensor at the Texas plant was tucked between two large gears. Traditional wires needed us to remove a gear (adding 2 hours to installation) to route them. The FPC bent around the gears—no disassembly needed. “That one sensor used to take 2 hours to install; now it takes 10 minutes,” Carlos said.
FPCs are built and tested in the factory—all traces are correctly aligned, and the connector is pre-attached. There’s no room for mixing up wires or loose crimps.
“We haven’t had a single installation mistake since switching to FPCs,” Carlos said. “Every sensor works the first time. No more coming back to fix wiring errors.”
FPCs don’t just make installation faster—they make sensors more durable, so you spend less on repairs and downtime.
Traditional connectors wiggle loose in vibrations. FPCs use “board-to-board” connectors that lock into place—they don’t loosen, even on machines that shake all day.
Before FPCs, 80% of sensor failures were from loose connectors. After switching, that number dropped to 5%. “We used to send a technician out every 2 weeks; now it’s once every 3 months,” Carlos said. “Maintenance labor costs are down 90%.”
FPCs are a single piece of durable PI film—no loose wires to fray or snap. They can handle vibrations, dust, and even minor impacts without breaking.
We put a traditional sensor wire and an FPC through 10,000 vibration cycles (simulating 6 months of factory use). The wire frayed and broke after 2,500 cycles; the FPC showed no damage. “That’s why our sensors last 3x longer now,” Carlos said.
If a sensor with an FPC does fail, troubleshooting is easy. Since the FPC is one piece, you just check the connector and the FPC itself—no need to test 5 separate wires. Repairs take 15 minutes instead of an hour.
“A sensor failed last month—we checked the FPC connector, saw it was slightly dirty, cleaned it, and it worked again,” he said. “That took 10 minutes. Before, we would have tested each wire, replaced a connector, and wasted an hour.”
Let’s break down the Texas plant’s costs before and after switching to FPC sensors:
That’s a 91% drop in costs—$60,200 saved every quarter. “FPCs didn’t just cut costs—they helped us meet our production targets,” Carlos said. “We used to lose 12 hours of line time; now we lose 1. That’s a game-changer.”
The Texas plant’s story taught us that industrial sensor wiring isn’t just a “necessary cost”—it’s an opportunity to save money. Traditional wiring is slow, unreliable, and expensive to maintain. FPCs fix all that: faster installation, fewer repairs, and almost no line downtime.
For factories, sensors with FPCs aren’t just a better design—they’re a smarter financial choice. The small upfront cost of FPCs is nothing compared to the thousands saved on labor and downtime.
Next time you’re looking at your sensor maintenance bills or waiting for a technician to install new sensors, ask: “Could FPCs fix this?” Chances are, the answer is yes—and the savings will surprise you.
