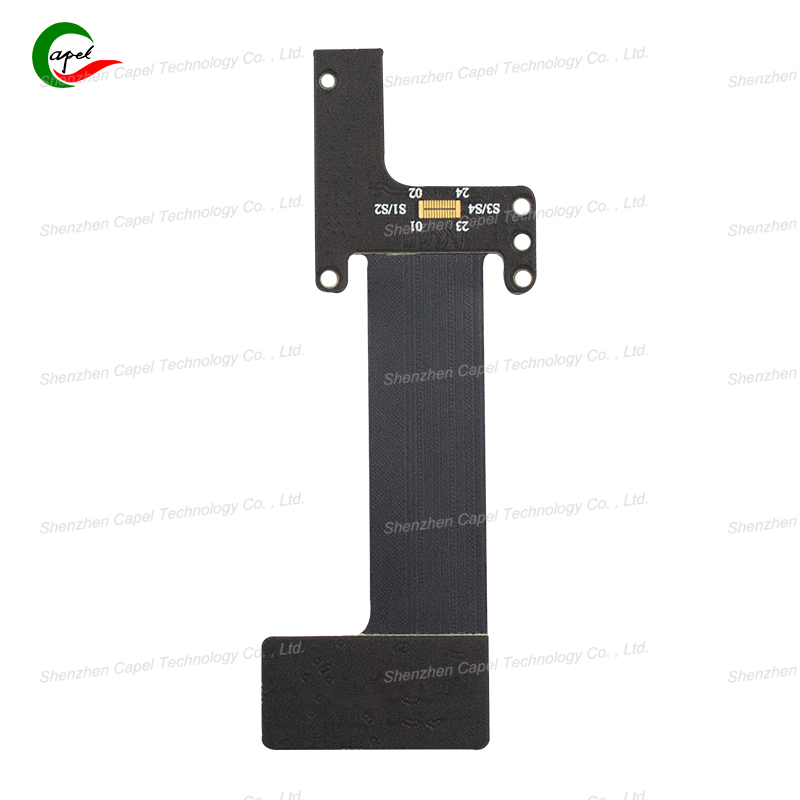

Last year, my team finally moved our rigid-flex PCB design for a smart thermostat into mass production. We’d spent months testing prototypes, and everything worked perfectly—until we ran the first 1,000-unit batch. When we opened the production box, our hearts sank: only 300 PCBs passed quality checks. The rest had issues: flexible zones tearing, rigid-flex transitions splitting, and copper traces peeling. “We’re wasting 70% of our materials and time,” our production manager, Jamie, said, slamming a faulty PCB on the table. “We need to fix this—fast.”
That low-yield disaster taught us a hard truth: rigid-flex PCB mass production isn’t just “scaling up prototypes.” Prototypes work with careful, one-off assembly, but mass production needs strict, repeatable processes to avoid waste. Over the next two months, we overhauled every step—from design to final inspection—and boosted our yield to 92%.
In this article, we’ll break down the biggest yield killers in rigid-flex mass production, share the full-process tips that saved our project, and show you how to avoid the mistakes that cost us time and money.
Before we fixed our process, we first identified why our yield was so low. These three issues caused 90% of our failures:
The thin PI film in flexible zones tore when we pressed layers together (lamination). In mass production, lamination uses high pressure (50–100 psi) and heat (180–200°C)—too much force for poorly designed flexible zones.
“We found tears in 40% of the failed PCBs,” Jamie said. “The PI film was too thin (0.075mm) and had no reinforcement—lamination pressure stretched it until it broke.”
The area where rigid FR4 meets flexible PI (transition zone) split apart in 35% of our failures. This happened because we used a weak adhesive that couldn’t handle the stress of mass-production handling (e.g., moving PCBs on conveyors).
“Prototypes used manual assembly, so transitions held up,” Jamie explained. “But in mass production, PCBs get jostled on belts—weak adhesive just pulls apart.”
Etching (removing excess copper to create traces) caused 15% of failures. Our trace design was too narrow (0.08mm), and the copper didn’t bond well to the PI film—etching chemicals ate away at the edges, making traces peel.
“We tested the traces with a tape pull test,” said our quality engineer, Raj. “60% of the narrow traces peeled off—they just weren’t strong enough for mass production.”
Fixing our yield meant optimizing every step of production. Below are the tips that took us from 30% to 92% yield:
Prototypes can ignore small design flaws, but mass production amplifies them. Fix these design issues first:
-
Add PI Reinforcement Film: Use a 0.025mm-thick PI film on both sides of flexible zones. This doubles the film’s strength without losing flexibility. We added this to our design, and flexible zone tearing dropped to 5%.
-
Avoid Overly Thin Flex Zones: Use 0.1mm-thick PI film (not 0.075mm) for mass production. Thicker film handles lamination pressure better.
-
Use High-Strength Adhesive: Replace standard epoxy with acrylic-based adhesive (CTE matched to FR4 and PI). It’s more flexible and resists splitting. We switched, and transition failures fell to 3%.
-
Extend Adhesive Coverage: Make the adhesive cover 5mm of the rigid section and 5mm of the flexible section (10mm total). This spreads stress across a larger area.
-
Widen Narrow Traces: Use a minimum trace width of 0.12mm (not 0.08mm) for mass production. Wider traces bond better to PI and resist peeling. We widened our traces, and peeling dropped to 2%.
-
Add Trace Anchors: For critical traces, add small “anchor” extensions (0.5mm long) at the ends. These lock the trace to the PI film, preventing peeling.
Mass production fails if materials vary (e.g., PI film thickness changes batch to batch). Tighten material control with these tips:
-
Choose suppliers that provide batch-to-batch consistency reports. Our first PI film supplier had 10% thickness variation—we switched to a supplier with <2% variation, and flexible zone failures dropped by 15%.
-
Require ISO 9001 certification. This ensures suppliers follow strict quality control.
-
PI Film Test: Check thickness and tensile strength for every batch. We rejected a batch with weak PI film (tensile strength 20% below specs)—it would have caused 100+ failures.
-
Adhesive Test: Test adhesive bond strength with a pull test. We set a minimum bond strength of 5N/cm—any adhesive below that gets rejected.
Lamination is where most rigid-flex failures happen. We fixed our process with these tweaks:
-
Ramp Up Pressure Slowly: Increase pressure from 20 psi to 80 psi over 10 minutes (not all at once). This prevents PI film tearing. We did this, and lamination-related failures dropped by 25%.
-
Control Temperature Uniformity: Use a press with digital temperature control (±2°C variation). Hot spots cause adhesive to melt unevenly, leading to transitions splitting.
-
Place PCBs on a rigid carrier (aluminum or steel) during lamination. Carriers spread pressure evenly, avoiding localized stress on flexible zones. We added carriers, and flexible zone tearing fell to 3%.
Mass production means PCBs are moved on conveyors, packed in boxes, and shipped—all of which can cause damage. Protect PCBs with these tips:
-
Replace hard plastic belts with soft rubber ones. Hard belts scratch PI film and jostle transitions. We switched, and post-lamination damage dropped by 10%.
-
Use thin, non-stick separator sheets (silicone-coated paper) between PCBs in boxes. This prevents PCBs from rubbing against each other and peeling traces. We added separators, and shipping damage fell to 1%.
Manual inspection misses small defects (e.g., tiny trace peels) in mass production. Add automated checks:
-
AOI cameras scan every PCB for trace peeling, flexible zone tears, and transition gaps. We added AOI after lamination, and we caught 90% of defects before they reached final assembly.
-
For high-volume batches, do a tape pull test on 10 PCBs per batch. If any trace peels, inspect the entire batch. This caught a bad adhesive batch early, saving us 500+ failed PCBs.
Here’s how our yield improved after implementing these tips (over 3 months of mass production):
By Batch 4, we were only wasting 8% of materials—down from 70%. “We went from losing $10,000 per batch to $800,” Jamie said. “These tips didn’t just boost yield—they saved our project.”
Our 30% yield disaster taught us that rigid-flex mass production isn’t a guessing game. It’s about designing for repeatability, controlling materials, optimizing critical steps like lamination, and catching defects early.
The tips that worked for us—reinforcing flexible zones, using strong adhesives, automating inspection—aren’t “secret tricks.” They’re just strict, consistent processes that prevent the small flaws that become big waste in mass production.
As you scale your rigid-flex PCB to mass production, remember: prototypes are about “making it work once.” Mass production is about “making it work 10,000 times.” Focus on process, not perfection, and your yield will follow.
Next time you open a box of mass-produced rigid-flex PCBs, hope for 90%+ yield—not 30%. With the right full-process tips, you’ll get there.
