Last year, I was tasked with repairing a broken industrial sensor’s rigid-flex PCB. The problem seemed simple: a loose connection between the rigid FR4 section and the flexible PI section. I grabbed a soldering iron, heated up the joint, and… melted the PI film. The PCB was completely useless. “You can’t treat rigid-flex like a regular PCB,” our senior technician, Mike, said, shaking his head. “The flexible part needs gentle handling—too much heat, and it’s gone.”
That mistake cost our team $200 in replacement parts and a week of delays. But it also taught me something crucial: rigid-flex PCB repair isn’t just about soldering—it’s about understanding the difference between the rigid and flexible sections. Over the next few months, Mike showed me his tricks, and I went from ruining PCBs to fixing them reliably. This guide is for anyone new to rigid-flex repair: no fancy tools, just practical steps to avoid my mistakes and get the job done.

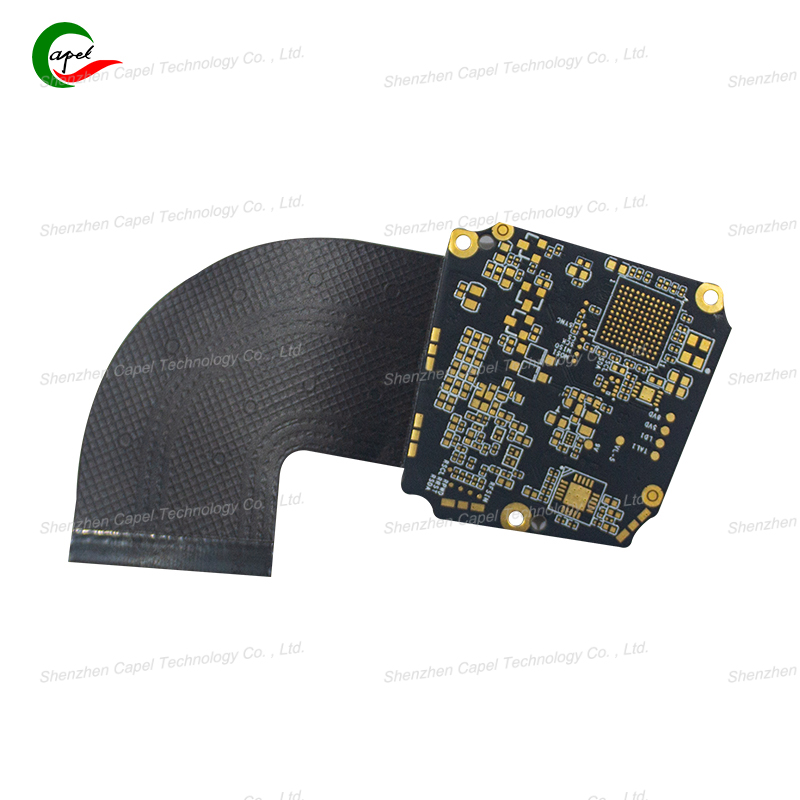

Before you touch a soldering iron, you need to identify the two key parts of a rigid-flex PCB—mixing them up is how beginners break things:
-
Rigid Section (FR4): The stiff, hard part (usually green, like a regular PCB). It can handle more heat (up to 260°C for short periods) and is where most components (chips, connectors) are mounted.
-
Flexible Section (PI Film): The thin, bendable part (often yellow or clear). It’s delicate—PI film melts at ~300°C, and the copper traces are thinner (easier to break).
Mike’s first rule: “Test the heat with a scrap piece first. If you don’t have a scrap, heat a small area of the rigid section—never the flexible part—to get a feel for it.”
I once tried to solder a connector directly to the flexible section. The PI film turned brown and bubbled—ruined. Lesson: Always solder components to the rigid section. If you have to work on the flexible part, use low heat and a small tip.
You don’t need a $1,000 soldering station to repair rigid-flex PCBs. Here’s what I use—all under $100 total:
-
Low-Wattage Soldering Iron (25–30W): High-wattage irons (60W+) heat too fast and melt PI film. I use a 25W iron with a fine tip (0.5mm)—perfect for small traces.
-
Solder Wick (Copper Braid): For removing old solder (desoldering). Avoid desoldering pumps—they can push too hard and break the flexible section.
-
Tweezers (Fine-Point): To hold small components (like resistors) without touching the flexible section.
-
Heat Gun (Low-Temp Setting): For reflowing solder on the rigid section (never use on the flexible part!).
-
Magnifying Glass or Headlamp: Rigid-flex traces are small—you need to see cracks or loose connections clearly.
-
Kapton Tape: Heat-resistant tape to cover the flexible section when soldering the rigid part. It protects the PI film from accidental heat.
Mike’s tip: “Invest in a good soldering iron tip. A dull tip needs more heat to work—bad for PI film. Replace tips every 3–6 months if you use them often.”
Most rigid-flex PCB problems are simple: loose connections, broken traces, or faulty components. Below are the steps I use to fix the three most common issues—no prior experience needed.
Loose connectors are the easiest fix—they usually just need reflowing solder.
-
Cover the Flexible Section: Stick Kapton tape over the transition zone (where rigid meets flexible) to protect the PI film.
-
Heat the Connector: Turn on your 25W iron to 280°C (low enough for FR4, too hot for PI—hence the tape!). Touch the tip to the connector’s solder joint for 2–3 seconds.
-
Add a Tiny Bit of Solder: If the solder looks dry, add a small amount of thin solder (0.8mm diameter). Don’t overdo it—too much solder can short nearby traces.
-
Let It Cool: Wait 10 seconds before touching the connector. Peel off the Kapton tape gently.
I once heated the connector for 10 seconds—too long. The solder flowed onto the flexible section and stuck to the PI film. Now I set a timer for 3 seconds max.
Broken traces (tiny copper lines) are common—especially on the flexible section from bending.
-
Clean the Area: Use isopropyl alcohol (IPA) and a cotton swab to remove dirt.
-
Tin the Iron: Melt a small amount of solder on the iron tip (this helps transfer heat evenly).
-
Bridge the Break: Cut a tiny piece of thin copper wire (0.1mm diameter) to cover the broken trace. Hold it with tweezers, then touch the iron to the wire for 1–2 seconds—this solders it to the trace.
-
Check for Shorts: Use a multimeter (set to “continuity”) to make sure the trace works—and that you didn’t short it to nearby traces.
-
Use Even Lower Heat: Turn the iron down to 260°C. Cover the rest of the flexible section with Kapton tape—only leave the broken trace exposed.
-
Use Conductive Ink (Instead of Wire): Copper wire is too stiff for flexible traces. I use conductive ink (available on Amazon for $15) to paint over the break. Let it dry for 30 minutes.
-
Seal It: Put a small piece of clear tape over the repaired trace to protect it from bending.
Mike’s warning: “Never use wire on flexible traces. The wire won’t bend with the PI film— it’ll break again in a week.”
Bad resistors or capacitors on the rigid section are easy to replace—just don’t touch the flexible part.
-
Desolder the Old Component: Place solder wick over the component’s pin. Touch the iron to the wick— it will soak up the old solder. Repeat for both pins.
-
Remove the Component: Use tweezers to pull the component off— it should come free easily.
-
Insert the New Component: Line up the new component’s pins with the holes on the rigid section. Hold it with tweezers.
-
Solder the Pins: Heat each pin for 2 seconds, adding a tiny bit of solder. Let it cool, then check continuity with a multimeter.
I use a small piece of Kapton tape to hold the component in place while soldering—this frees up my hands and prevents the component from shifting.
These are the mistakes I made most often—learn from them so you don’t ruin your PCB:
-
Using Too Much Heat: A 60W iron will melt PI film in 5 seconds. Stick to 25–30W.
-
Soldering on the Flexible Section: Only work on the rigid part. If you have to fix the flexible section, use conductive ink, not solder.
-
Pushing Too Hard: The flexible section bends—pushing with tweezers or the iron can crack the traces. Be gentle!
-
Skipping Kapton Tape: Accidentally touching the flexible section with the iron is easy—Kapton tape is your safety net.
-
Not Testing After Repair: I once fixed a trace and thought it worked—until I powered on the PCB and it shorted. Always test with a multimeter first.
Last month, I fixed a rigid-flex PCB from a smart thermostat. The problem: a broken trace on the flexible section (from someone bending it too hard).
-
Cleaned the trace with IPA.
-
Covered the rest of the flexible section with Kapton tape.
-
Painted conductive ink over the break—let it dry 30 minutes.
-
Sealed it with clear tape.
-
Tested with a multimeter—continuity worked!
The thermostat turned on, and the screen lit up. Mike nodded and said, “See? You didn’t melt anything this time.”
That’s the goal of this guide: to help you fix rigid-flex PCBs without ruining them. It’s not about being perfect—it’s about being careful, using the right tools, and learning from small mistakes.
I used to think rigid-flex PCBs were “too delicate to repair”—that I’d always ruin them. But after months of practice, I’ve learned that anyone can do it with the right tools and steps. The key is to respect the flexible section: low heat, no pushing, and always use Kapton tape.
For beginners, start small: fix a loose connector first, then move to broken traces. Don’t be afraid to make mistakes—just keep a few scrap PCBs handy to practice on. And if you’re not sure, ask a senior technician (like I did with Mike).
Next time you have a broken rigid-flex PCB, don’t throw it away. Grab your 25W iron, some Kapton tape, and follow this guide. You’ll be surprised at how easy it is to fix—and how much money you’ll save.
