Last year, our team tested a foldable phone prototype. After 1,000 folds (the industry durability mark), we heard a “crack”: the rigid-flex PCB’s flexible zone—linking screen to battery—had broken. Under a microscope, copper traces split along the fold, and the thin PI film was worn. “We skipped flexible zone reinforcement,” our lead engineer Maria said. “It can’t handle bending without extra support.”
That failure cost us three weeks—but it drove home a truth: rigid-flex PCBs need reinforced flexible zones. Thin PI films and delicate copper traces break easily without backup. This isn’t just for foldables—it matters for smartwatches, car sensors, and medical devices too. Below, we’ll break down why flexible zones fail and the best fixes.

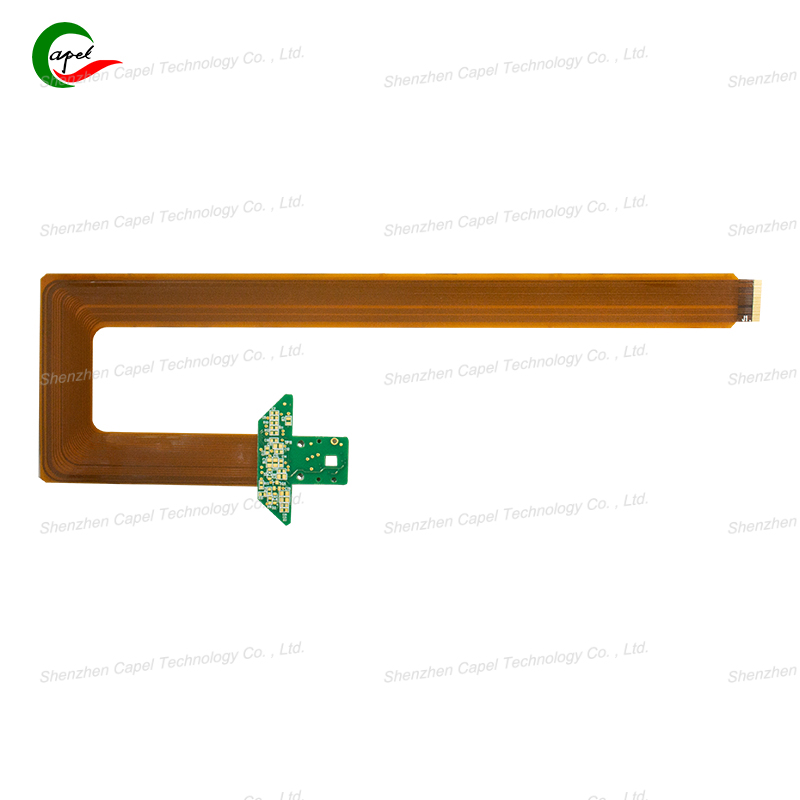

Flexible zones are the “bridge” between rigid FR4 sections, but three flaws sink them without reinforcement:
Thin PI Film Tears: PI film (0.075–0.125mm thick) rubs against components (like phone frames) and tears. Raj, a wearables engineer, saw this: “Smartwatch PCBs failed after 500 wrist bends—PI film tore from rubbing the case.”
Copper Traces Crack: Thin 0.5–1oz traces crack with repeated bending. Our foldable prototype’s traces split after 1,000 folds—killing power to the screen.
Transition Solder Joints Loosen: The flexible-rigid edge is a stress hotspot. Vibration (from car engines, for example) pulls joints loose. Lisa, an auto engineer, fixed this: “A sensor module failed because transition joints shook apart.”
Reinforcement doesn’t kill flexibility—it adds targeted support. Here are the top fixes, with real stories:
Stick thin PI, polyester, or stainless steel films to the flexible zone to stop tearing.
- How: 0.025mm PI film (matches flexible zone material) bonds to one/both sides.
- Raj’s Win: Adding PI film to smartwatch PCBs let them handle 5,000 wrist bends (10x more). “No more torn film,” he said.
Thicken traces or add backups for critical paths.
- How: Use 2oz copper (instead of 0.5oz) for power/data lines; add a second “redundant” trace.
- Our Fix: We upgraded foldable phone traces to 1oz + redundant lines. The prototype survived 20,000 folds—20x the standard.
Add small FR4/PI/metal stiffeners to the flexible-rigid edge to spread stress.
- How: 0.1mm FR4 stiffeners bond to the transition, protecting joints.
- Lisa’s Fix: Stiffeners on car sensor PCBs cut failure rates from 15% to 0%. “Joints survived 100,000km of driving,” she said.
Seal flexible zone edges with epoxy/silicone to stop corrosion.
- How: Thin epoxy (0.05mm) or medical-grade silicone covers cut edges.
- Medical Win: A heart monitor team used silicone sealing—devices worked 2 years (no sweat-induced corrosion).
Match solutions to your PCB’s needs:
A tablet maker’s flexible zones failed after 500 folds. Here’s their fix:
- Added 0.025mm PI film to the hinge area.
- Upgraded power traces to 2oz copper.
- Bonded 0.1mm FR4 stiffeners to transitions.
Result: 10,000 folds (20x more) with no tears/cracks. The tablet launched successfully.
Our prototype failure taught us: rigid-flex PCBs depend on reinforced flexible zones. The right fix—film, thicker traces, stiffeners, or sealing—turns fragile zones into tough ones.
Next time you design a rigid-flex PCB, ask: “Where will it break?” Then reinforce it. Your product (and customers) will thank you.
