SMT Assembly: The Complete Guide to Modern Electronics Manufacturing

Date: 2026-03-04

Ever wonder how hundreds of tiny components end up perfectly placed on a circuit board, all soldered at once, without anyone touching them with a soldering iron? That's the magic of SMT assembly—the technology that makes modern electronics possible.

SMT stands for Surface Mount Technology. It's the process of mounting electronic components directly onto the surface of a printed circuit board (PCB). If you've ever looked inside a smartphone, laptop, or smartwatch, you've seen SMT assembly in action. Those tiny resistors, capacitors, and chips aren't poked through holes—they're sitting on the surface, soldered in place by precision machines.

This guide walks you through everything you need to know about SMT assembly: what it is, how it works, why it matters, and how to choose the right partner for your projects.


What Is SMT Assembly?

SMT assembly is the process of attaching surface-mount devices (SMDs) to a PCB using automated machinery . Unlike older through-hole technology, where components have long leads that poke through drilled holes, SMT components sit directly on the board's surface .

Think of it like this:

  • Through-hole is like pushing nails through a board and hammering them from the other side

  • SMT is like placing magnets on a steel surface—they stick right where you put them

The components themselves are called SMDs (Surface-Mount Devices). They come in all shapes and sizes, from tiny 01005 resistors (smaller than a grain of sand) to complex microprocessors with hundreds of connections .


Why SMT Took Over Electronics Manufacturing

SMT didn't become the standard by accident. It offers huge advantages over traditional methods :

Smaller Products

Because components mount on the surface rather than through holes, you can pack more functionality into less space. A typical SMT board can have components on both sides, doubling the density without increasing size . This is why your smartphone can be so thin yet so powerful.

Faster Production

Modern pick-and-place machines can mount tens of thousands of components per hour . Compare that to hand-soldering, where even a skilled technician might place a few hundred parts in an hour. Automation means speed.

Lower Costs

With automation comes lower labor costs. While the equipment investment is significant, the per-board cost drops dramatically at scale . For high-volume production, SMT is far more economical than through-hole.

Better Performance

Shorter connections mean less signal interference and better high-frequency performance . For modern electronics running at gigahertz speeds, this matters a lot.

Improved Reliability

SMT joints, when properly formed, are highly reliable. Automated processes ensure consistency that hand-soldering can't match .


When Through-Hole Still Makes Sense

SMT dominates, but through-hole isn't dead. It's still used for :

  • Connectors that need mechanical strength

  • Large components like transformers and high-power parts

  • Prototyping where hand-soldering is easier

  • Applications with extreme vibration where through-hole joints hold up better

Many modern boards use a mixed technology approach: SMT for most components, through-hole for the ones that need extra strength .

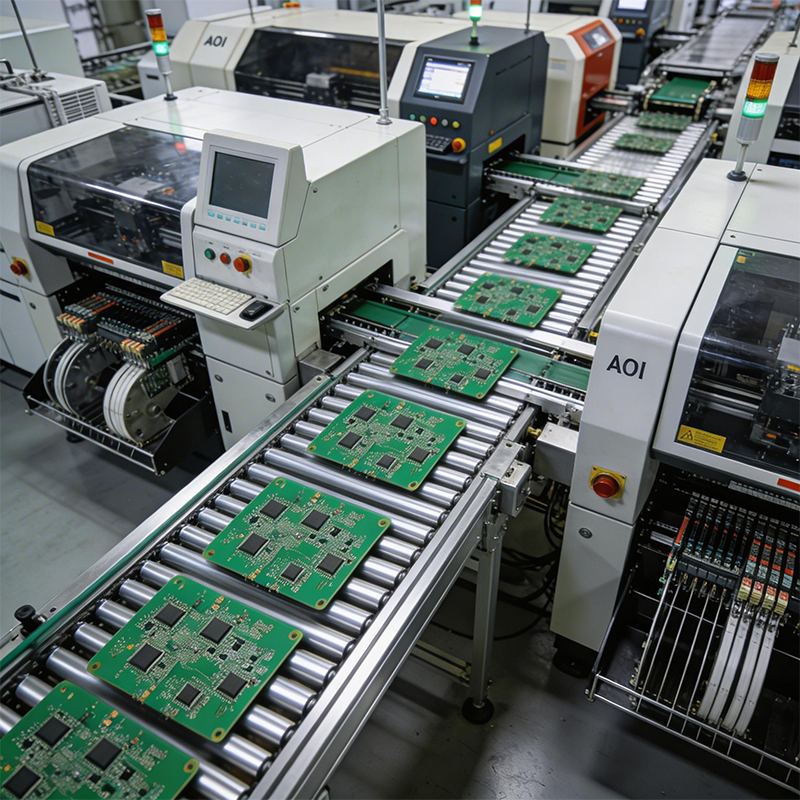

smt组装 (5).jpg


The SMT Assembly Process: Step by Step

Here's what happens when your boards go through an SMT assembly line :

Step 1: Solder Paste Printing

The process starts with applying solder paste to the board. A stainless steel stencil—laser-cut with openings matching your PCB's pads—is aligned over the board. Solder paste (a sticky gray mixture of tiny solder balls and flux) is spread across the stencil, depositing precisely on the pads .

This step is critical. Too little paste, and you get weak connections. Too much, and you risk short circuits between pins. The quality of this print sets the foundation for everything that follows .

Step 2: Solder Paste Inspection (SPI)

Before components go on, many manufacturers use 3D SPI machines to check the paste deposits . They measure:

  • Height

  • Width

  • Volume

  • Alignment

If something's off, the line stops automatically to prevent defects downstream.

Step 3: Component Placement

Now the pick-and-place machines go to work. These high-speed robots use vacuum nozzles to pick components from reels and trays, then place them onto the wet solder paste with incredible precision—often within 0.03 to 0.1 mm accuracy .

Modern machines can place 50,000 to 80,000 components per hour . They handle everything from tiny 01005 resistors to large BGA chips.

Step 4: Reflow Soldering

The boards enter a reflow oven—a long tunnel with carefully controlled temperature zones . This isn't just "heating it up." It's a precise thermal profile with four stages :

  • Preheat: Gradually raises temperature to activate the flux

  • Soak: Allows the entire board to reach even temperature

  • Reflow: Brief spike above solder melting point (typically 235-250°C for lead-free)

  • Cooling: Controlled solidification to create strong joints

Your specific board needs its own thermal recipe. A generic profile can overheat sensitive parts or under-heat large ones .

Step 5: Automated Optical Inspection (AOI)

After reflow, cameras scan the board from multiple angles, comparing thousands of points to your original design files . AOI catches:

  • Missing components

  • Wrong polarity

  • Solder bridges

  • Insufficient solder

  • Misalignment

Step 6: X-Ray Inspection (for Hidden Joints)

For components with hidden connections—like BGAs (Ball Grid Arrays) and QFNs—X-ray inspection reveals what's underneath . It detects:

  • Solder voids

  • Bridges under chips

  • Insufficient solder balls

Step 7: Functional Testing (FCT)

Finally, boards are powered up and tested to ensure they work as designed . This can include:

  • Power-on testing

  • Signal integrity checks

  • Program burning

  • In-circuit testing


Quality Standards That Matter

When choosing an SMT assembly partner, look for adherence to industry standards :

IPC-A-610

This is the accepted standard for electronic assembly acceptability . It defines three classes:

  • Class 1: General electronics (toys, simple gadgets)

  • Class 2: Dedicated service electronics (computers, communications equipment)

  • Class 3: High-reliability electronics (aerospace, medical life support)

Know which class your product needs, and make sure your manufacturer can deliver it.

ISO Certifications

ISO 9001 indicates a quality management system. For medical devices, look for ISO 13485. For automotive, IATF 16949 .


Common SMT Defects and How They're Prevented

Even with automation, things can go wrong :

Tombstoning

A small component stands up on one end like a grave marker. Cause: uneven heating or uneven solder paste. Prevention: balanced pad design and proper thermal profiling.

Bridging

Solder connects adjacent pins that should be separate. Cause: too much paste or pads too close. Prevention: proper stencil design and paste volume control.

Cold Joints

Dull, grainy connections. Cause: insufficient heat. Prevention: correct reflow profile and temperature control.

Voids

Hidden empty spaces inside solder joints (especially under BGAs). Cause: trapped flux or outgassing. Prevention: optimized profiles and X-ray inspection.

Professional factories minimize defects through :

  • DFM checks before production

  • SPI and AOI at multiple stages

  • X-ray for hidden joints

  • Strict process control


How to Choose an SMT Assembly Partner

When you're ready to have your boards assembled, here's what to look for :

Technical Capability

  • What component sizes can they handle? (01005? 0201?)

  • Can they place fine-pitch ICs and BGAs?

  • Do they have X-ray for hidden joints?

  • What's their testing capability (AOI, X-ray, FCT)?

Quality Systems

  • What certifications do they hold (ISO 9001, IATF 16949, ISO 13485)?

  • What's their first-pass yield on similar boards?

  • How do they handle defect management and root cause analysis?

Communication

  • Do they offer DFM feedback before production?

  • Can they explain technical tradeoffs clearly?

  • How quickly do they respond to questions?

Supply Chain

  • Can they source components?

  • Do they have relationships with reliable suppliers?

  • How do they handle component shortages or substitutions?

Location and Transparency

  • Can you visit the facility?

  • Are they open about their processes and limitations?
