If you've ever had a batch of PCBs come back from assembly with mysterious shorts, tombstoned components, or just a yield that made you wince, I'll bet you dollars to donuts the problem started at the very first step: SMT print.
Here's the thing about surface mount assembly: it's a chain. And like any chain, it's only as strong as its weakest link. The solder paste printing process is that critical first link. Get it right, and the rest of the line has a fighting chance. Get it wrong, and no amount of fancy placement machines or perfect reflow profiles will save you.
After years in this business, I've seen the same issues crop up again and again. Poor print quality accounts for roughly 60-70% of all SMT assembly defects . That's not a small number. That's the difference between a profitable run and a scrap bin full of boards.
Let's walk through what SMT print actually involves, what can go wrong, and how to get it right—whether you're running your own line or relying on a trusted partner.
In plain terms, SMT print is the process of depositing solder paste onto the pads of a bare PCB . Think of it as applying the "glue" that will hold components in place during assembly and ultimately become the metallurgical bond that connects them electrically.
The basic setup hasn't changed much over the years: a stainless steel stencil with laser-cut apertures aligns perfectly with your PCB pads. A squeegee blade pushes solder paste across the stencil, forcing it through the openings and onto the pads below . The PCB then separates from the stencil, leaving behind precisely deposited paste that matches your pad geometry.
Sounds simple, right? But when you're dealing with 01005 components (think sesame seed-sized), pitch measurements smaller than 0.4mm, and volumes measured in nanoliters, simple becomes anything but.
In my experience, consistently good SMT print comes down to three things: the stencil, the paste, and the machine parameters. Let's break each one down.
The stencil is the unsung hero of SMT print. It's not just a piece of metal with holes—it's a precision tool that directly determines how much paste ends up where.
Material and manufacturing: Most production stencils are laser-cut stainless steel, typically 0.1mm to 0.15mm thick . For fine-pitch work, electroformed stencils or those with nano-coatings can improve paste release from tiny apertures .
Aperture design: This is where engineering meets art. The openings aren't simply scaled copies of your pads. For fine-pitch components, special shapes like "home plate" or "window-pane" designs control solder volume and prevent bridging . The goal is to deposit just enough paste to form a reliable joint—not so little that you get opens, not so much that you get shorts.
Two critical ratios: Every stencil designer lives by two numbers :
Area Ratio (Ra): The area of the aperture opening divided by the area of its sidewalls. For reliable paste release, this needs to be greater than 0.66. Below that, paste sticks to the stencil walls instead of transferring to the pad.
Aspect Ratio (Ar): The width of the aperture divided by the stencil thickness. Target >1.5 to ensure paste flows through cleanly.
As components shrink, maintaining these ratios gets harder. The industry roadmap calls for area ratios down to 0.55 by 2027 and 0.5 by 2029 . That requires stencil manufacturing tolerances and paste formulations that didn't exist a few years ago.
Solder paste isn't just tiny balls of alloy. It's a carefully engineered suspension of metal powder in a flux vehicle that serves multiple purposes: it provides tackiness to hold components, cleans surfaces during reflow, and controls the melting behavior .
Storage and handling: This is where many problems start. Solder paste needs refrigeration (typically 2-8°C) to slow chemical degradation . Before use, it must warm to room temperature—usually 2-4 hours—to prevent moisture condensation that causes solder spattering. Once opened, paste should be used within 8-12 hours. Exposed paste oxidizes and absorbs humidity, leading to defects.
Particle size: The powder particle size (Type 3, Type 4, Type 5) matters tremendously. Finer powders (Type 4 and above) are essential for fine-pitch printing but cost more and have higher oxide content. For standard 0.5mm pitch, Type 3 (25-45μm) works fine. For 0.4mm and below, Type 4 (20-38μm) or finer becomes necessary .
Viscosity: Too thick, and it won't fill apertures. Too thin, and it slumps after printing, causing bridges. The target depends on your application, but consistent viscosity from batch to batch is critical.
You can have the perfect stencil and the ideal paste, but if your printer settings are off, nothing matters .
Printing speed: Typically 30-50 mm/s, depending on paste characteristics and component density . Too fast, and paste doesn't fully fill apertures. Too slow, and you risk paste drying on the stencil.
Squeegee pressure: Usually 1.5-2.5 kgf/cm² of blade length . Too light leaves paste on the stencil surface. Too heavy "scoops" paste out of apertures, reducing deposit volume.
Separation speed: This is the speed at which the PCB pulls away from the stencil after printing. Slow and controlled (typically 0.1-0.3 mm/s) prevents paste from sticking to aperture walls and forming peaks or tails .

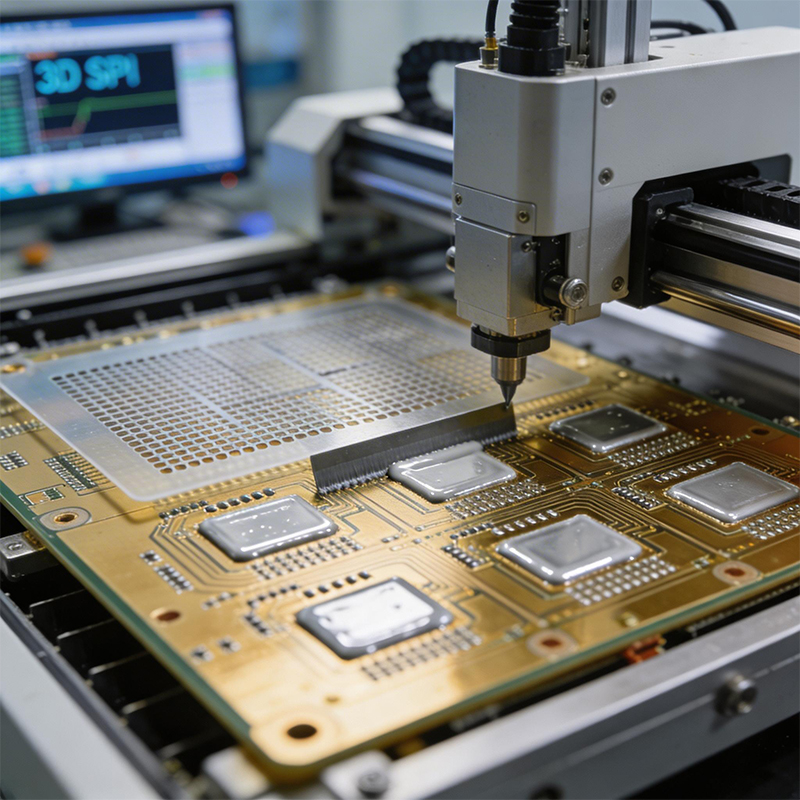

Stencil cleaning: Every few prints, the stencil underside needs cleaning to remove paste buildup that can smear onto subsequent boards . Under-stencil cleaning systems use vacuum, paper, and solvent—but if not controlled, cleaning liquid can seep through apertures and contaminate the paste ..jpg "smt打印 (2).jpg")
After processing thousands of designs, here are the issues we see most often:
What it looks like: Pads missing paste, or deposits visibly thinner than expected.
Likely causes : Clogged stencil apertures, insufficient squeegee pressure, printing speed too fast, or paste viscosity too high.
Solutions: Increase cleaning frequency, adjust pressure/speed, check paste condition, and verify aperture area ratio meets requirements.
What it looks like: Paste connecting adjacent pads, which will short after reflow.
Likely causes : Too much paste (stencil too thick or apertures oversized), insufficient aperture spacing, or paste too thin (viscosity low or temperature too high).
Solutions: Check stencil design, reduce aperture size if possible, adjust pressure to reduce paste volume, and verify paste viscosity.
What it looks like: Irregular paste shapes, tails, or paste pulled up from pads.
Likely causes : Separation speed too fast, aperture walls rough, or area ratio too low.
Solutions: Slow separation speed, check stencil quality (electropolished walls help), and verify area ratio meets guidelines.
What it looks like: Paste offset from pad centers.
Likely causes: Board or stencil registration errors, fiducial recognition problems.
Solutions: Verify board tooling, check fiducial quality, and ensure printer vision system is calibrated.
Here's the reality: a defect caught at SMT print costs pennies. A defect caught after reflow costs dollars. A defect caught in the field costs reputations .
That's why professional SMT lines use Solder Paste Inspection (SPI) immediately after printing . SPI systems use 3D measurement to verify every deposit's volume, height, area, and alignment. They catch problems before components ever get placed, when rework is as simple as cleaning the board and printing again.
The data from SPI can also feed back to the printer for closed-loop control, automatically adjusting parameters to maintain process stability . This isn't science fiction—it's how modern factories achieve the six-sigma quality that today's products demand.
At Kaboer, we've been running SMT lines since 2009. Over the years, we've printed paste on everything from simple 2-layer boards to complex 20-layer HDI designs with 0.3mm pitch BGAs. We've learned what works and what doesn't—and we've built our processes around getting it right the first time.
Our Shenzhen factory is equipped with modern SMT lines designed for precision and consistency :
Advanced stencil printers with closed-loop pressure control and automated under-stencil cleaning
3D SPI systems on every line, measuring 100% of deposits on 100% of boards
Process control software that monitors print quality in real-time and alerts operators to trends before they become defects
Strict paste management following industry best practices for storage, handling, and usage
We own our factory. When you work with us, there's no middleman between you and the people printing your boards. One team, one quality standard, one point of accountability .
We review your design before printing. Our engineers check pad geometries, stencil requirements, and board layout for potential printing issues. This DFM feedback catches problems before they cost you time and money .
We integrate with your PCB fabrication. Because we make boards and assemble them under one roof, we understand how your specific PCB finish, flatness, and registration affect print quality. No finger-pointing between fab and assembly—just one team solving problems .
We're certified where it matters. ISO 9001, IATF 16949 (automotive), ISO 13485 (medical), and ISO 14001. Our processes are documented, repeatable, and audited .
We're transparent. Our Shenzhen factory is open to clients. If you want to see how your boards are printed, you're welcome to visit. Walk the floor, meet the team, ask whatever you want .
Of course, SMT print is just the beginning. We offer complete PCBA services:
SMT assembly for components from 01005 to large BGAs
Through-hole assembly for connectors and power components
Mixed technology combining SMT and through-hole on the same board
Conformal coating for environmental protection
Functional testing to verify your boards work as designed
And because we fabricate our own PCBs—flexible, rigid-flex, HDI, high-frequency, and metal-core—we can control quality from the very first step .
SMT print is the foundation of reliable electronics assembly. Get it right, and everything else flows smoothly. Get it wrong, and you're fighting defects all the way down the line.
If you need reliable SMT print services, custom PCBs, or one-stop PCBA solutions, send us your requirements. We'll reply with a free quote and technical guidance within 2 hours.
Better yet—come visit our Shenzhen factory. See for yourself how we print, place, and reflow boards that work, every time.
