You know that moment when you're holding a bare board, flipping it over, and you start wondering... what is this stuff anyway? It's not metal, not quite plastic. It's got layers, colors, and somehow it makes your electronics work.

I get asked this a lot by clients who've been sourcing boards for years but never really dug into the materials. And honestly, it's a smart question. Because when you know what a PCB is made of, you start to understand why some boards cost more, why some fail, and why the cheapest quote isn't always the best deal.

Let's break it down in plain English.

---

The Short Answer

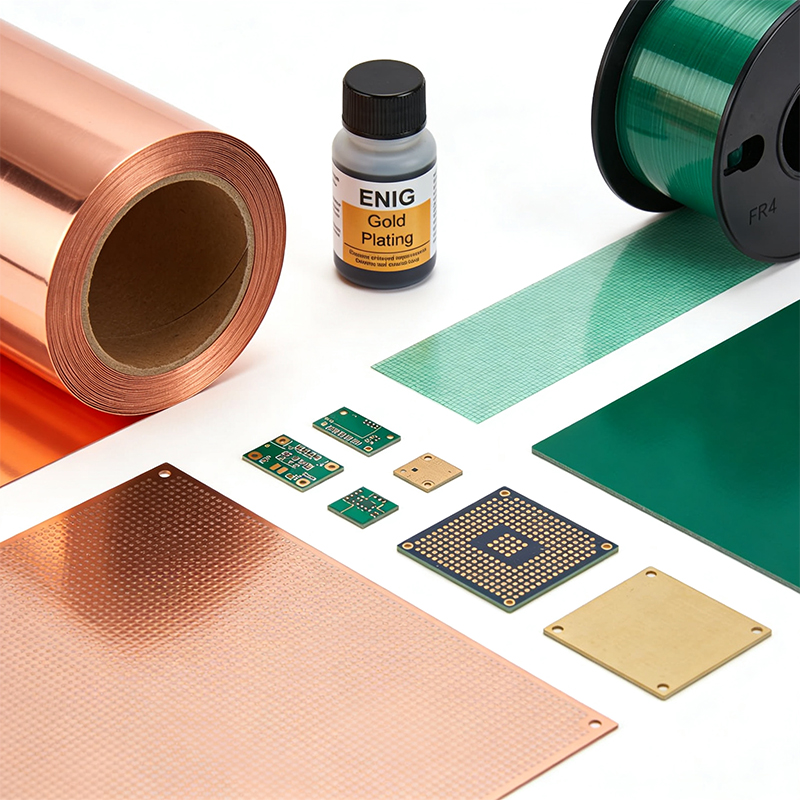

A PCB is mostly three things: a fiberglass core, copper traces, and a protective coating. That's the simple version. But like most things in electronics, the details matter.

The fiberglass gives it strength. The copper does the actual work of carrying signals and power. And the coating keeps everything from shorting out or corroding. Everything else is just variations on this theme.

But if you're designing products that need to last—or that need to perform at high speeds, high temperatures, or in tight spaces—you need to know a bit more.

---

The Base: What's That Brownish Board Made Of?

Most PCBs you've seen are made from something called FR-4. The "FR" stands for Flame Retardant, and the "4" is just a grade. It's essentially fiberglass cloth soaked in epoxy resin and pressed into sheets.

Think of it like really good quality fiberglass—strong, stiff, and it doesn't conduct electricity. That's important because you want the signals to stay in the copper, not leak into the board itself.

FR-4 is the workhorse of the industry. It's cheap, it's reliable, and it works for 90% of what people build. But here's where it gets interesting: not all FR-4 is the same.

If your product runs hot—say, in an engine bay or near power components—you need high-Tg FR-4. Tg stands for glass transition temperature. It's the point where the board starts to soften. Standard FR-4 softens around 130-140°C. High-Tg material handles 170°C or more. Without it, your board can warp during assembly or, worse, in the field.

If you need the board to bend—like in a wearable or a foldable device—FR-4 won't work at all. It snaps. For that, you need polyimide. It's a flexible plastic that can bend thousands of times without cracking.

And if you're working with high-frequency signals—5G, radar, high-speed data—FR-4 actually becomes a problem. It absorbs signal energy. For that, you need specialized materials like Rogers or PTFE (you might know it as Teflon). They cost more, but they let your signals through clean.

So when someone asks me what PCBs are made of, my first answer is FR-4. But the real answer is: it depends on what you're building.

---

The Copper: Where the Magic Happens

The copper is what makes a PCB a circuit board. Without it, you just have a piece of fancy plastic.

Copper starts as thin foil, laminated onto the base material. The thickness is measured in ounces per square foot. 1-ounce copper (about 35 micrometers thick) is the standard. It handles normal signals and moderate power just fine.

If you're building something that needs to carry a lot of current—motor drivers, power supplies, LED lighting—you might need 2-ounce or even 3-ounce copper. It's thicker, so it can handle more current without overheating. But it's also harder to etch fine traces, so there's a trade-off.

For really dense, high-speed boards, you might use 0.5-ounce copper. It's thinner, which lets you make very fine traces. But it can't carry as much current.

The copper is etched away to leave just the traces you need. The quality of that copper—how pure it is, how well it bonds to the base—directly affects how your board performs. Cheap boards sometimes use low-grade copper that can peel or crack over time.

---

The Green Stuff: Solder Mask

That familiar green coating is called solder mask. Its job is simple: keep solder where it belongs and protect the copper from the environment.

Solder mask is a polymer, usually epoxy-based, that's applied like ink and then hardened with UV light. It covers everything except the pads where components will be soldered.

The green color is traditional, but you can get it in red, blue, black, white, even yellow. The color doesn't change the performance much, though some colors can be harder to inspect.

Here's something a lot of people don't realize: solder mask isn't just cosmetic. Without it, copper oxidizes quickly. Oxidized copper doesn't solder well, and it can actually become less conductive over time. The mask also prevents solder bridges between closely spaced pins.

If you've ever had boards that were hard to assemble or failed after a few months, bad solder mask might have been the culprit.

---

The White Labels: Silkscreen

Those white letters and boxes you see on a board are the silkscreen. It shows where components go, what their values are, and which way they're oriented.

Good silkscreen saves time during assembly. It helps technicians spot a misplaced part before it's soldered. It makes troubleshooting easier. And honestly, it makes your product look professional.

Bad silkscreen—blurry, misaligned, missing—is a sign that the manufacturer rushed the job. If they can't get the silkscreen right, what else did they rush?

---

For Multilayer Boards: The Stuff Between Layers

When you get into boards with more than two layers, there's another material in the mix: prepreg.

Prepreg is thin fiberglass cloth that's been pre-impregnated with partially cured epoxy. It's placed between layers of copper during lamination. When heated and pressed, it melts, bonds the layers together, and then hardens into a solid insulator.

Think of it as the glue that holds multilayer boards together. The quality of the prepreg determines how well the layers stay bonded, how consistent the thickness is, and how well the board handles thermal stress.

---

The Surface Finish: Protecting the Pads

The pads where components get soldered need protection. Bare copper oxidizes in hours. So after the board is made, a surface finish is applied.

Common finishes include:

• HASL (Hot Air Solder Leveling) – The board is dipped in molten solder, then blasted with hot air to level it. Cheap and solderable, but the surface isn't perfectly flat. Fine for through-hole and larger SMT parts, but not great for fine-pitch stuff.

• ENIG (Electroless Nickel Immersion Gold) – A layer of nickel, then a thin layer of gold. Flat, corrosion-resistant, and excellent for fine-pitch components like BGAs. Costs a bit more, but worth it for complex boards.

• OSP (Organic Solderability Preservative) – A water-based organic coating that protects the copper until soldering. Simple and cheap, but the protection doesn't last forever. Best for boards that will be assembled soon after fabrication.

• Immersion Silver/Tin – Alternatives for specific needs, like wire bonding or certain environmental requirements.

The choice affects both cost and reliability. For a simple prototype, HASL is fine. For a production board with fine-pitch parts, ENIG is worth the extra money.

---

So, What Should You Actually Use?

Here's the thing: there's no single "best" material. It depends on what you're building.

For most general-purpose electronics – Standard FR-4, 1-ounce copper, green solder mask, HASL finish. Works great, costs reasonable.

For automotive or industrial – High-Tg FR-4, maybe thicker copper if it's a power board, ENIG for reliability.

For high-frequency (5G, radar, RF) – Rogers or PTFE materials, careful impedance control, ENIG finish.

For wearables or flex – Polyimide base, rolled copper for better flex life, maybe stiffeners where components mount.

For LED lighting or power supplies – Metal-core board (aluminum) to spread heat, thick copper for high current.

At Kaboer, we've been working with all these materials since 2009. We're in Shenzhen, and we build boards for companies all over the world—automotive, medical, industrial, consumer. We've seen what works and what doesn't.

We offer custom flexible PCBs, rigid-flex, HDI high-frequency boards, and full PCBA assembly. We have our own factory, so we control the quality from start to finish. And we welcome customers to visit—see how your boards are made, meet the team, ask whatever you want.

---

Ready to Build Something That Actually Works?

The materials in your PCB aren't just technical specs. They're the difference between a product that lasts and one that fails. Between something that performs and something that barely works.

If you're tired of guessing, or if you've had bad experiences with boards that didn't hold up, let's talk.

Send us your requirements. We'll help you choose the right materials for your product, give you a free quote within 2 hours, and get you prototypes fast.

And if you're ever in Shenzhen, come visit our factory. See for yourself what goes into real, quality boards.
