Short Description:

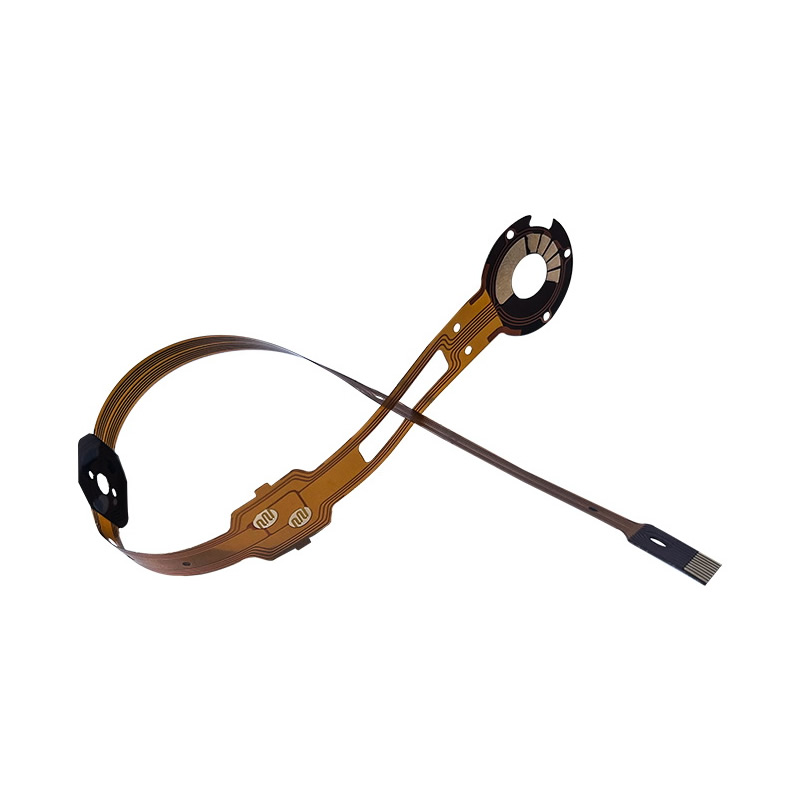

Type: Single-Sided FPC Board

Size: 158.29*33.05mm

Line width/line spacing: 0.25mm/0.2mm

Tolerance: ±0.03mm

Thickness: 0.1mm

Stiffer: none

Surface treatment: 1 micron immersed gold

Capel’s Service:
Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,Reliable Quick Turn PCB Prototyping,Fast SMT PCB Assembly

Industry We Service:
Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

Single-sided automotive central control lighting PCB | Single-sided automotive FPC | Single-sided automotive central control circuit board | Central lighting FPC | Capel circuit board product
Application fields Single-sided automobile central control lighting panel refers to the lighting control panel on the automobile center console, which is used to control various lighting functions in the car. These lighting functions include vehicle lighting, dashboard backlighting, and ambient interior lighting. Single-sided central control lighting panels are usually simple in design and easy to operate. The brightness, mode, and color of the light can be adjusted through knobs, switches, or touch screens. Some high-end models can also provide customized lighting settings based on the driver's preferences and needs. The single-sided central control lighting panel can adjust the interior lighting to improve driving comfort and safety.
Capel Flexible PCB & Rigid-Flex PCB Process  Capability
Category Process Capability Category Process Capability
Production Type Single layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB
Layers Number 1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards
Max Manufacture Size Single layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm
Insulating Layer
Thickness
27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um
Board Thickness FPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm
Tolerance of PTH
Size
±0.075mm
Surface Finish Immersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP
Stiffener FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size Min 0.4mm Min Line Space/ width 0.045mm/0.045mm
Thickness Tolerance ±0.03mm Impedance 50Ω-120Ω
Copper Foil Thickness 9um/12um / 18um / 35um / 70um/100um Impedance
Controlled
Tolerance
±10%
Tolerance of NPTH
Size
±0.05mm The Min Flush Width 0.80mm
Min Via Hole 0.1mm Implement
Standard
GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III
Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
8 layer HDI PCBs
Testing And Inspection Equipment
Microscope Testing
AOI Inspection
2D Testing
Impedance Testing
RoHS Testing
Flying Probe
Horizontal Tester
Bending Teste
Capel provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
