High-quality Single-Side Flexible Boards PI FR4 PCB Fab for Heart Rate Monitors

Short Description:

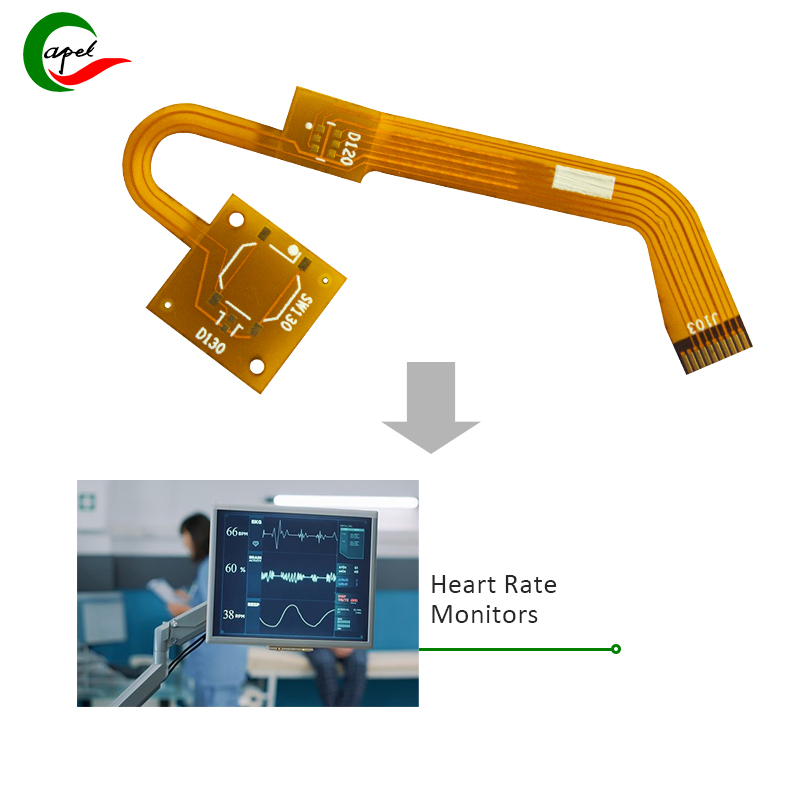

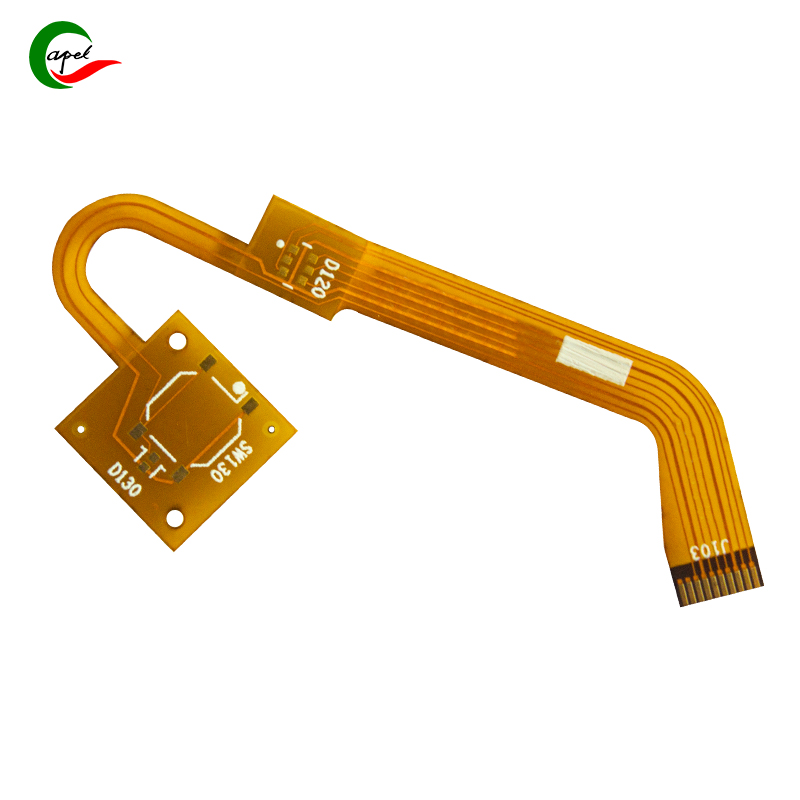

Product type：Single-Side Flexible Boards
Applications: Heart Rate Monitors
Line width and line spacing：0.1mm/0.1mm
Board thickness：0.13mm
Minimum Aperture:0.15mm
Copper Thickness:35um
Stiffness:PI,FR4
Surface Treatment:Immersion Gold
Special Process:/
Capel’s Service:
Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:
Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

How Capel's High-Quality Single-Side Flexible Boards PI FR4 PCB Fab Provides Reliability Solutions for Heart Rate Monitors manufacturers
-Capel with 15 years of professional technical experience-

Introducing our innovative single-sided flexible board designed specifically for heart rate monitor applications. These boards feature 0.1mm/0.1mm line width and spacing, making them ideal for achieving high precision and accuracy.

Our single-sided flexible board has a board thickness of 0.13 mm, is lightweight and flexible, and is ideal for wearable devices such as heart rate monitors. The minimum aperture of 0.15mm ensures smooth and efficient signal transmission, thereby enhancing the performance of your device.

Our circuit board copper thickness is 35um, providing excellent electrical conductivity, ensuring reliable and consistent performance. They are available in two stiffness options - PI and FR4 - providing flexibility and durability depending on your specific requirements.

To ensure the highest quality and reliability, our single-sided flex boards have an immersion gold surface treatment. This coating enhances the board's solderability and corrosion resistance, ensuring a long service life and optimal performance.

In addition to these features, our single-sided flexible boards are designed for easy integration into security surveillance equipment. Thanks to their flexibility, lightweight and high performance, our boards are suitable for both small and large security systems.

Our company has more than 15 years of experience in the field of flexible PCB and is committed to providing the highest quality products and services. We have a team of professionals who are experts in flexible board manufacturing and development, ensuring that every product meets the strictest quality and performance standards.

Our commitment to excellence extends beyond our products. We provide efficient customer support, timely delivery and competitive pricing to ensure a seamless experience for our customers.

All in all, our single-sided flexible boards are the perfect choice for heart rate monitors and safety monitoring equipment. With their high precision, lightweight design and reliable performance, they can greatly enhance the functionality and efficiency of your equipment. Trust our company's expertise and experience and experience the difference in quality and performance. Partner with us today to take your products to new heights.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
