Breakthroughs in Rigid-Flex PCB Mass Production Difficulties: Full-Process Optimization from Substrate Lamination to Final Inspection

Date: 2025-08-24

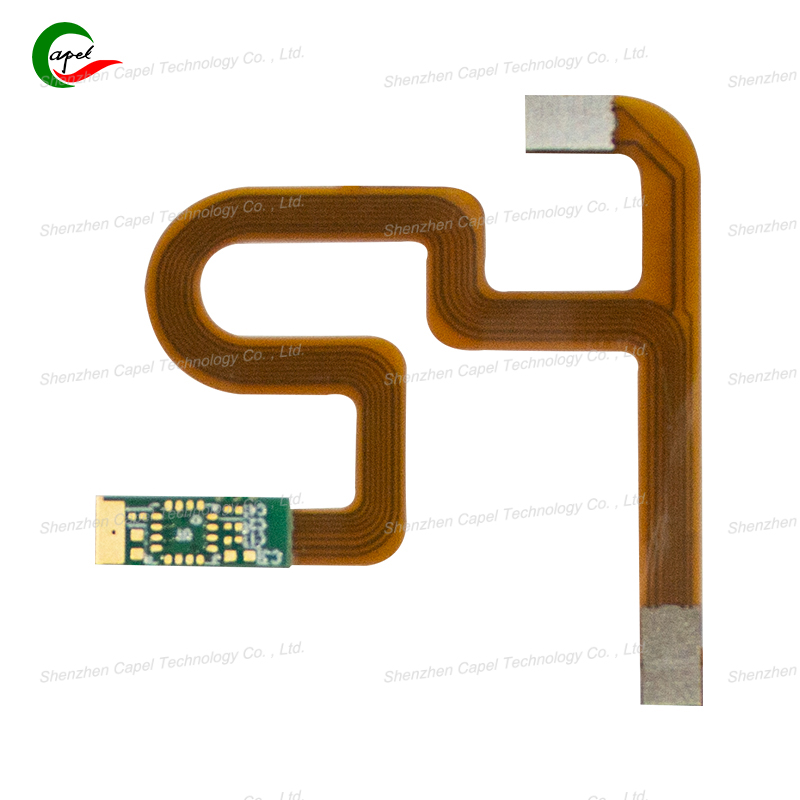

1. Introduction: The "Mass Production Bottleneck" of Rigid-Flex PCBs

Imagine a factory investing $1 million in a rigid-flex PCB line for foldable phones—only to see 18% of each batch fail due to uneven substrate lamination. Or a car supplier delaying shipments because 15% of its rigid-flex boards have hidden cracks in the flexible layer. Rigid-flex PCBs are harder to mass-produce than traditional PCBs or FPCs: their mix of rigid FR4 and flexible polyimide requires precision at every step, and even tiny mistakes (e.g., 0.01mm misalignment) ruin entire batches.


For manufacturers, the goal isn’t just "producing more"—it’s "producing more with consistent quality." The industry average yield rate for rigid-flex PCBs is 82%, but leading brands like Samsung and Tesla have hit 95%+ by optimizing four key steps: substrate lamination, layer curing, routing/cutting, and final inspection. Below are the biggest difficulties in each step—and the proven breakthroughs to fix them, with real examples from factories worldwide.

2. Difficulty 1: Uneven Substrate Lamination (The #1 Yield Killer)

Substrate lamination—bonding rigid FR4 and flexible polyimide layers—is the first and riskiest step. Common problems:


  • Layer Misalignment: Rigid and flexible layers shift during lamination, leading to short circuits or trace breaks.
  • Air Bubbles: Trapped air between layers causes delamination (layers separating) after bending.
  • Uneven Adhesive Thickness: Too much adhesive oozes out; too little causes weak bonding.


A Chinese rigid-flex factory reported that 40% of its failures came from lamination issues—costing $50,000 monthly in wasted materials.

Breakthrough Solutions:

  • Automated Lamination Machines with Vision Alignment: Replace manual lamination with machines that use cameras to align layers (±0.005mm accuracy). Samsung’s foldable PCB line uses this; misalignment dropped from 8% to 1%.
  • Vacuum De-Airing Before Lamination: Use a vacuum chamber to remove air from adhesive before pressing layers. Tesla’s battery PCB factory added this step; air bubbles in lamination fell by 90%.
  • Controlled Adhesive Dispensing: Use precision nozzles to apply exactly 0.05mm-thick adhesive (no more, no less). A Korean factory switched to this; adhesive-related failures dropped from 12% to 2%.


Real Result: After adopting these fixes, the Chinese factory’s lamination failure rate fell to 5%—saving $42,500 monthly.

3. Difficulty 2: Inconsistent Layer Curing (Weak Bonds = Short Lifespan)

After lamination, layers are cured (heated to harden adhesive). Poor curing leads to weak bonds that break during bending or temperature changes. Common issues:


  • Uneven Oven Temperature: Hot spots in the oven over-cure some boards (brittle adhesive) and under-cure others (weak bonds).
  • Incorrect Cure Time: Too short = weak bonds; too long = damaged flexible layers.


A European car PCB supplier found that 25% of its rigid-flex boards failed bending tests due to bad curing—most were under-cured.

Breakthrough Solutions:

  • Infrared (IR) Ovens with Real-Time Temperature Sensors: IR ovens heat evenly, and sensors track each board’s temperature (adjusting heat if needed). Boeing’s aerospace PCB line uses this; curing consistency reached 99% (vs. 80% with traditional ovens).
  • Cure Time Calibration for Material Combinations: Test cure times for each "rigid-flex combo" (e.g., FR4 + PI needs 120°C for 30 mins; FR4 + GRPI needs 150°C for 40 mins). Ford’s automotive PCB factory does this; under-cured boards dropped to 2% from 25%.
  • Post-Cure Bond Strength Testing: Pull-test 5% of each batch to check bond strength. A German factory added this; weak bonds were caught before shipping, cutting field failures by 60%.


Real Result: The European supplier’s bending test failure rate fell to 3%—and their rigid-flex boards now last 10+ years in cars (up from 5 years).

4. Difficulty 3: Routing/Cutting Errors (Precision = No Scrap)

Routing (etching traces) and cutting (trimming boards to size) are critical for rigid-flex PCBs—especially in flexible zones. Mistakes here include:


  • Over-Etching Flexible Traces: Too much copper removed, making traces thin and prone to cracking.
  • Rough Edges on Cuts: Sharp edges on rigid-flex boundaries tear flexible layers during bending.
  • Trace Short Circuits: Etching errors leave tiny copper bridges between traces.


A Taiwanese consumer electronics factory had 15% scrap due to routing/cutting issues—mostly from over-etched flexible traces.

Breakthrough Solutions:

  • Laser Routing for Flexible Zones: Laser routers etch traces with ±0.003mm accuracy (no over-etching). Xiaomi’s wearable PCB line uses this; over-etching failures dropped from 10% to 0.5%.
  • CNC Cutting with Edge Polishing: CNC machines cut boards and then polish edges to remove sharpness. Samsung’s Z Fold5 PCB line added this; edge-related flexible layer tears fell by 85%.
  • AI-Powered Optical Inspection (AOI) After Routing: Cameras with AI scan every board for short circuits or trace errors—catching 98% of issues (vs. 70% with human inspectors). A Japanese factory adopted this; routing-related scrap fell to 3% from 15%.


Real Result: The Taiwanese factory’s scrap rate dropped to 4%—saving 11,000 boards monthly (worth $22,000).

5. Difficulty 4: Hidden Defects in Final Inspection (What You Can’t See Hurts Yield)

Traditional visual inspection misses hidden defects:


  • Internal Delamination: Layers separate inside the board (invisible to the naked eye).
  • Micro-Cracks in Flexible Layers: Tiny cracks that only show after 1,000+ bends.
  • Solder Joint Voids: Air bubbles in solder (weaken connections).


A medical device maker recalled 10,000 rigid-flex boards because X-rays revealed internal delamination—defects missed by visual inspection.

Breakthrough Solutions:

  • X-Ray Inspection for Internal Defects: X-ray machines spot delamination, solder voids, and hidden cracks. Medtronic’s medical PCB line uses this; hidden defects caught increased by 90%.
  • Accelerated Bending Tests: Test 10% of each batch with 10,000 quick bends (simulating 5 years of use). Tesla’s battery PCB factory does this; micro-cracks in flexible layers are caught before shipping—field failures dropped by 75%.
  • Electrical Testing with Bed-of-Nails Testers: 100% electrical testing checks for short circuits or open traces (even hidden ones). Huawei’s 5G rigid-flex PCB line uses this; electrical defects fell to 0.3% from 5%.


Real Result: The medical device maker’s recall rate dropped to 0.5%—and they now pass all regulatory inspections on the first try.

6. Bonus: Full-Process Data Tracking (Prevent Mistakes Before They Happen)

The biggest breakthrough isn’t a single step—it’s tracking data across the entire process. By logging every parameter (lamination temperature, cure time, laser power), factories can spot trends before they become failures.

How It Works:

  • Use MES (Manufacturing Execution System) software to record data from each machine.
  • Set alerts for anomalies (e.g., if lamination temperature drops by 5°C, the system stops production).
  • Analyze weekly data to find root causes (e.g., "Batch 45 failed due to old adhesive—replace adhesive every 7 days").


Real Example: Samsung’s rigid-flex factory uses MES to track 50+ parameters per board. They noticed a spike in delamination and traced it to expired adhesive—changing the adhesive schedule cut failures by 30%.

7. Conclusion: Mass Production Success = Precision + Data + Consistency

Rigid-flex PCB mass production isn’t about "overcoming one difficulty"—it’s about optimizing every step, from lamination to inspection. The factories that hit 95%+ yield rates don’t just have better machines—they have better processes: automated alignment for lamination, even curing with sensors, laser routing for precision, and X-rays for hidden defects.


The lesson for manufacturers: Cutting corners on any step costs more in the long run. A $50,000 investment in an IR oven or X-ray machine saves $100,000 in scrap and recalls. As rigid-flex PCBs become more common in foldable phones, cars, and medical devices, these optimizations won’t just be "nice to have"—they’ll be essential to stay competitive.


The future of rigid-flex mass production isn’t just about making more boards—it’s about making better boards, faster, with no waste. And the factories that master these breakthroughs will lead the industry.
