If you’ve ever accidentally dropped your TV remote and seen it crack open, you’ve spotted that mysterious green plate inside. That’s a Printed Circuit Board (PCB). But how do circuit boards work? To most people, it looks like a cryptic alien map. To an engineer, it’s a perfectly organized miniature city.

Let’s break down the "magic" behind that green board in plain English.

1. The Foundation: It’s a "Non-Conductive" Sandwich

First things first: the board itself doesn't carry electricity. In fact, its job is to stop electricity from going where it shouldn't. Most boards are made of a material called FR4—essentially a tough, fire-resistant fiberglass soaked in epoxy resin.

Think of this as the "land" or the "ground" of our city. It provides the solid foundation so that everything else stays in place.

2. Copper Traces: The High-Speed Highways

If you look closely, you’ll see thousands of fine gold or silver-colored lines. These are copper traces. In our city analogy, these are the highways and streets. Their only job is to transport "cars" (electrons) from point A to point B.

Before PCBs were invented, we had to connect everything with a mess of literal wires (imagine a plate of spaghetti). The PCB "prints" these wires directly onto the board, making it compact, reliable, and much less likely to short-circuit.

3. The Components: The "Buildings" of the City

A highway is useless if it doesn't lead anywhere. That’s where the components come in. Each one has a specific job:

• Resistors (The Traffic Lights): They slow down the flow of electricity so components don't burn out.

• Capacitors (The Water Towers): They store a little bit of energy and release it when needed, smoothing out the "water pressure" of the electricity.

• The Microchip (The Mayor's Office): This is the brain. it makes decisions based on the signals it receives from the highways.

4. Layers: The 3D Skyscrapers

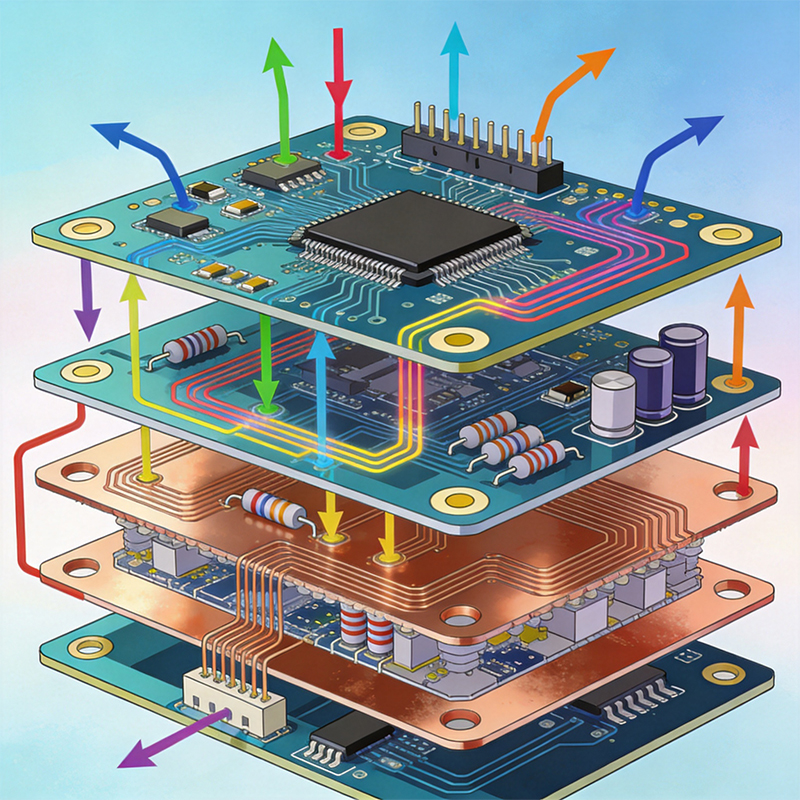

In the old days, boards were simple and flat. But your 2026 smartphone is tiny and powerful. How? We use Multilayer PCBs. Instead of just one layer of "roads," we stack them on top of each other, sometimes up to 12 or 20 layers deep. They are connected by tiny vertical tunnels called Vias. It’s like a city with subways, ground-level streets, and sky-bridges all working at once.

5. The "Magic" Moment: The Flow of Logic

So, how do circuit boards work when you flip a switch? Electricity enters the board, the copper traces guide it through the "traffic lights" (resistors), into the "storage tanks" (capacitors), and finally into the "brain" (CPU). The CPU then sends a signal back out to turn on your screen or play a sound. It all happens at nearly the speed of light.

Conclusion

Understanding a PCB isn't just for tech geeks anymore. It’s the foundation of everything from your electric toothbrush to AI servers. Next time you look at a gadget, remember: you’re looking at a microscopic, lightning-fast civilization working perfectly to make your life easier.
