In the world of compact electronics—from the hinge of a foldable phone to the curved sensor in a smartwatch—every micrometer matters. The thickness of a flexible printed circuit (FPC) isn’t just a number; it determines whether a device fits, bends without breaking, or performs reliably in tight spaces. Unlike rigid PCBs, which have standardized thicknesses, FPCs are custom-built with layers of materials, making their total thickness a critical calculation that engineers and manufacturers can’t afford to guess.
So, how do you accurately calculate an FPC’s thickness? It starts with understanding its layered structure and accounting for every component, from the base substrate to the protective coverlay. Here’s a step-by-step guide to mastering this essential measurement.
Why FPC Thickness Matters
Before diving into calculations, let’s clarify why precision matters:
- Fit and form: An FPC that’s 0.1mm too thick might not fold into a wearables device or slot into a tight automotive sensor housing.
- Flexibility: Thicker FPCs (over 0.3mm) are stiffer and prone to cracking when bent, while ultra-thin designs (under 0.05mm) may lack structural integrity.
- Performance: Signal propagation and heat dissipation are influenced by thickness—for example, a thicker copper layer improves current handling but adds bulk.
- Manufacturability: Excessive thickness can complicate lamination or assembly, leading to defects like delamination.
In short, miscalculating FPC thickness can derail a product’s design, reliability, or even its ability to reach production.
The Layered Structure: Breaking Down FPC Components
An FPC’s total thickness is the sum of its individual layers. While designs vary, most FPCs include these core components (from bottom to top):
1. Substrate: The Foundation Layer
The substrate is the flexible insulating base, typically made of polyimide (PI) for high-performance applications. Its thickness ranges from:
- 12μm (0.0005 inches) for ultra-thin FPCs (e.g., medical implants)
- 25μm to 50μm for standard designs (e.g., smartphone flex cables)
- Up to 100μm for rigid-flex hybrids or high-stress areas
Key note: PI is preferred for its heat resistance (-269°C to 400°C) and flexibility, but cheaper alternatives like polyester (PET) are used in low-cost devices (e.g., toys), with thicknesses similar to PI.
2. Copper Foil: The Conductive Layer
Copper carries electrical signals and comes in two forms:
- Electrodeposited (ED) copper: Thinner (9μm to 18μm) and cost-effective, used in static FPCs (e.g., camera connectors).
- Rolled annealed (RA) copper: Thicker (18μm to 35μm) and more ductile, ideal for FPCs that bend repeatedly (e.g., foldable phone hinges).
Copper thickness is often specified by weight (oz/ft²), where 1oz = 35μm (a common conversion for quick estimates).
3. Adhesive: Bonding Layers Together
Adhesive bonds the copper to the substrate (or layers to each other in multi-layer FPCs). Its thickness depends on the application:
- 5μm to 15μm for thin, flexible designs (e.g., wearables)
- 20μm to 30μm for higher bond strength (e.g., automotive FPCs)
Adhesiveless exceptions: High-end FPCs skip adhesive, bonding copper directly to PI via thermal lamination. This eliminates 5–30μm from the total thickness, making them ideal for ultra-thin applications.
4. Coverlay or Solder Mask: Protection
A protective layer shields copper traces from moisture, dust, and physical damage:
- Coverlay: A thin PI film (12μm to 25μm) with adhesive (5μm to 15μm), applied to non-solder areas.
- Solder mask: A liquid or dry film (10μm to 20μm) used for fine-pitch designs (e.g., 0.3mm component spacing).

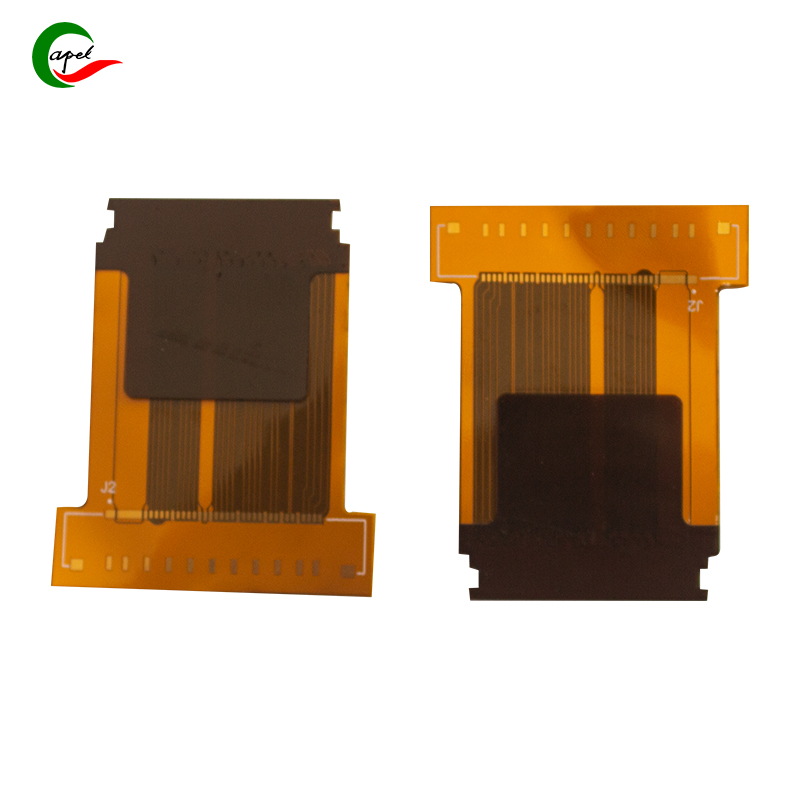

5. Reinforcements: Localized Thickness Boosts
Reinforcements add rigidity to specific areas (e.g., connector tabs) without increasing overall thickness. Common materials and their thicknesses:
- FR4: 50μm to 200μm (most common for connector support)
- Stainless steel: 30μm to 100μm (for high-vibration environments like engines)
- Polyimide: 25μm to 100μm (for heat-resistant zones near batteries)
Note: Reinforcements are only in specific regions, so they don’t affect the FPC’s total thickness everywhere—just in targeted areas.
Calculating Total Thickness: A Step-by-Step Formula
To find an FPC’s total thickness, sum the thicknesses of all layers in its cross-section. Here’s how to do it:
Example 1: Single-Sided FPC (Basic Design)
Layers: Substrate + Adhesive + Copper + Coverlay
- Coverlay (PI + adhesive): 25μm (film) + 10μm (adhesive) = 35μm
Total thickness: 25 + 10 + 18 + 35 = 88μm (0.088mm)
Example 2: Double-Sided FPC (With Adhesiveless Lamination)
Layers: Substrate + Copper (top) + Copper (bottom) + Solder mask (both sides)
- Solder mask (each side): 15μm × 2 = 30μm
Total thickness: 50 + 9 + 9 + 30 = 98μm (0.098mm)
Example 3: Multi-Layer FPC (3 Layers)
Layers: Substrate 1 + Copper + Substrate 2 + Copper + Substrate 3 + Coverlay
Total thickness: 25 + 18 + 25 + 18 + 25 + 35 = 146μm (0.146mm)
Critical Factors to Consider
Calculating thickness isn’t just about adding numbers—these variables can throw off your total:
1. Tolerances: The "Margin of Error"
Manufacturing processes introduce slight variations:
- Copper: ±10% of nominal thickness
For example, a 25μm substrate could measure 20–30μm, altering the total thickness by up to 10μm. Always account for tolerances in design (e.g., specify "88μm ±10μm" instead of a fixed number).
2. Lamination Compression
During production, layers are pressed together under heat and pressure, which can thin adhesives or substrates by 5–10%. A 10μm adhesive might compress to 9μm after lamination, so factor this into calculations.
3. Reinforcements: Local vs. Global Thickness
Reinforcements (e.g., a 100μm FR4 tab) only thicken specific areas. When specifying FPC thickness, clarify whether you’re measuring the flexible region (without reinforcements) or the reinforced section (e.g., "0.088mm flexible, 0.188mm at connector tab").
Tools for Measuring FPC Thickness
Once manufactured, verify thickness with these tools:
- Micrometer: A precision tool (±1μm) for measuring total thickness. Use a "ratchet stop" to avoid compressing the FPC.
- Optical profilometer: Scans the FPC’s surface to map thickness across its entire area, ideal for checking uniformity.
- Cross-section microscopy: Cuts a thin slice of the FPC and measures layer thicknesses under a microscope—critical for validating individual components (e.g., copper or adhesive).
Why Accuracy Pays Off
A leading manufacturer of automotive FPCs learned this lesson the hard way: A 0.02mm miscalculation in thickness caused their sensor FPC to jam in the assembly line, delaying production by two weeks. By refining their thickness calculations (accounting for lamination compression and material tolerances), they eliminated the issue.
For engineers, accurate thickness calculations mean:
- FPCs fit into tight enclosures on the first try.
- Bending performance meets durability requirements (e.g., 100,000 folds without cracking).
- Compatibility with automated assembly equipment (which relies on consistent thickness).
Conclusion: Thickness = Precision
Calculating FPC thickness is a mix of science and attention to detail. By breaking down the layered structure, accounting for materials, tolerances, and manufacturing effects, you can ensure your FPC fits, functions, and lasts.
In a market where devices get smaller and more flexible every year, thickness isn’t just a measurement—it’s a design parameter that defines success. Master it, and your FPC will stand out in a crowded field of "close enough" alternatives.
