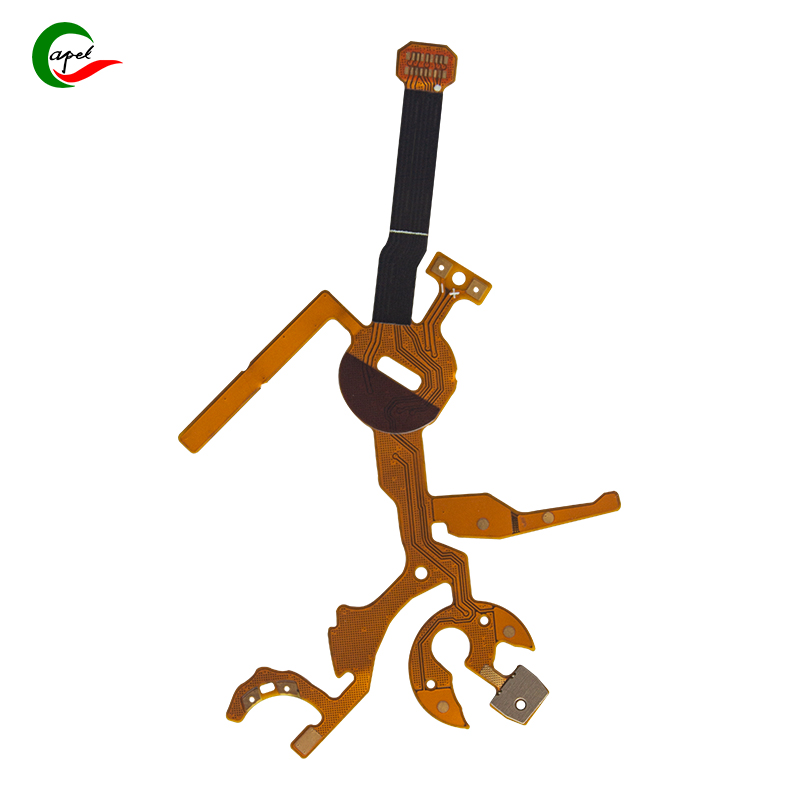

Flexible printed circuit (FPC) cables are the invisible enablers of modern device mobility, powering everything from foldable smartphones to medical wearables. Yet, as demand grows for thinner, more durable, and higher-performance FPCs, manufacturers face critical challenges: inconsistent flex life, signal loss in high-speed applications, and rising production costs. For engineers and production managers in competitive industries—from consumer electronics to aerospace—improving FPC cable processes isn’t just about efficiency; it’s about staying ahead in a market where reliability and innovation are non-negotiable.
Here’s a deep dive into actionable strategies to enhance FPC cable manufacturing, from material science to automation, that deliver measurable results.
1. Upgrade Material Selection for Enhanced Durability
The foundation of any FPC cable is its materials, and incremental improvements here can yield dramatic gains in performance:
- Copper Foil Innovations: Move beyond standard electrodeposited (ED) copper to high-ductility rolled annealed (RA) copper with grain refinement. This material withstands 300,000+ flex cycles (vs. 100,000 for ED copper) without cracking—critical for foldable device hinges or robotic arm cables. Brands like 3M and Nitto Denko now offer RA copper with enhanced adhesion layers, reducing delamination by 40%.
- Substrate Advancements: For high-temperature applications (e.g., automotive engine bays), replace traditional polyimide (PI) with thermally stable PI blends (Tg > 300°C) that resist degradation under continuous heat. For high-speed data cables (USB4, Thunderbolt), liquid crystal polymer (LCP) substrates minimize signal loss at 100+ GHz, outperforming PI by 25% in insertion loss tests.
- Adhesive Optimization: Adhesiveless laminates (direct copper-to-PI bonding) reduce thickness by 30% and improve flex life by eliminating brittle adhesive layers. For cables requiring extra robustness (e.g., industrial sensors), use nanoparticle-reinforced adhesives that distribute stress more evenly during bending.
2. Precision Engineering in Trace Design and Routing
FPC cables fail most often at stress points in their trace patterns. Redesigning these patterns with mechanical and electrical performance in mind is key:
- Curved Trace Geometry: Replace 90° corners with rounded bends (radius ≥ 3x trace width) to distribute stress. In testing, this reduces crack formation in flex zones by 60%. For serpentine traces (used in highly flexible areas), optimize pitch and amplitude to balance flexibility and signal integrity—simulation tools like Ansys can model stress distribution to fine-tune designs.
- Controlled Impedance for High Speed: As FPCs handle faster data rates (e.g., 10Gbps in VR headsets), impedance matching becomes critical. Use microstrip or stripline designs with precise trace width (0.05–0.1mm) and dielectric thickness, validated via TDR (Time Domain Reflectometry) testing. Automated design software (Altium, Cadence) now includes FPC-specific impedance calculators to reduce prototyping cycles by 30%.
- Reinforcement Zones: Add localized stiffeners (e.g., FR4 or stainless steel tabs) at connector interfaces, where cables are most prone to bending fatigue. These stiffeners, applied via laser cutting, improve pull strength by 50% without sacrificing flexibility in other areas.
3. Advanced Manufacturing Techniques to Reduce Defects
Even the best designs fail if manufacturing processes introduce variability. Adopting precision techniques minimizes defects and rework:
- Laser Direct Imaging (LDI): Replace traditional photolithography with LDI for trace patterning. This technology achieves ±10μm accuracy (vs. ±50μm for photomasks), critical for fine-pitch traces (50μm and below). LDI also eliminates mask alignment errors, reducing short circuits by 70% in high-density FPCs.
- Plasma Treatment for Adhesion: Pre-treat substrates with oxygen plasma before lamination to remove organic contaminants and increase surface energy. This step improves copper-to-substrate adhesion by 35%, lowering delamination rates in humid environments (e.g., fitness trackers).
- Automated Inspection with AI: Implement AOI (Automated Optical Inspection) systems paired with machine learning algorithms to detect micro-cracks, pinholes, or uneven coating. These systems, trained on thousands of defect images, identify issues 10x faster than human inspectors with 99.8% accuracy—essential for high-volume production lines.
4. Process Automation to Boost Consistency and Speed
Labor-intensive steps in FPC manufacturing introduce variability. Automation streamlines production while improving quality:
- Robotic Dispensing for Coverlays: Use robotic arms with vision systems to apply coverlay (protective layers) with ±5μm placement accuracy. This reduces edge lifting—a common cause of moisture ingress—by 80% compared to manual application.
- Roll-to-Roll Processing for High Volume: For mass-produced cables (e.g., smartphone charging flexes), adopt roll-to-roll manufacturing, which processes continuous material webs at speeds up to 30m/min. This cuts per-unit costs by 20% while ensuring uniform curing of adhesives and coatings.
- Digital Process Control: Integrate IoT sensors into ovens, laminators, and etching machines to monitor temperature, pressure, and chemical concentrations in real time. Automated feedback loops adjust parameters mid-production, reducing batch-to-batch variation by 45%.
5. Testing Protocols for Real-World Reliability
Improved processes must be validated through rigorous testing that mimics end-use conditions:
- Accelerated Flex Testing: Use automated flex testers to bend cables at 180° (radius 1mm) for 500,000 cycles while monitoring resistance. This identifies weak points (e.g., solder joints, trace bends) before production.
- Environmental Chambers: Test cables under combined stress—high humidity (95% RH), temperature cycling (-40°C to 85°C), and vibration (20–2000Hz). These tests predict field life; a cable that survives 1,000 hours in such conditions typically lasts 5+ years in harsh environments.
- Signal Integrity Testing: For high-speed cables, use vector network analyzers (VNAs) to measure insertion loss, return loss, and crosstalk at operating frequencies. This ensures compliance with standards like USB-IF and HDMI 2.1.
Case Study: A 30% Reduction in Field Failures
A leading manufacturer of medical wearables struggled with FPC cable failures in glucose monitors, caused by delamination during patient use. By implementing three key improvements—switching to adhesiveless PI-RA copper laminates, adding plasma treatment before lamination, and using robotic coverlay dispensing—they reduced field failures by 30% and extended product warranty from 1 to 2 years. The investment in new processes was recouped within 6 months through lower rework costs.
Conclusion: Continuous Improvement as a Competitive Edge
Improving FPC cable processes isn’t a one-time upgrade; it’s a cycle of material innovation, design optimization, and manufacturing refinement. For companies aiming to lead in sectors like 5G devices, electric vehicles, or wearable tech, these improvements translate directly to better products, lower costs, and stronger customer trust.
In a market where even a 1% increase in reliability can mean millions in saved warranty costs, the question isn’t whether to invest in better FPC processes—it’s how quickly you can implement them.
