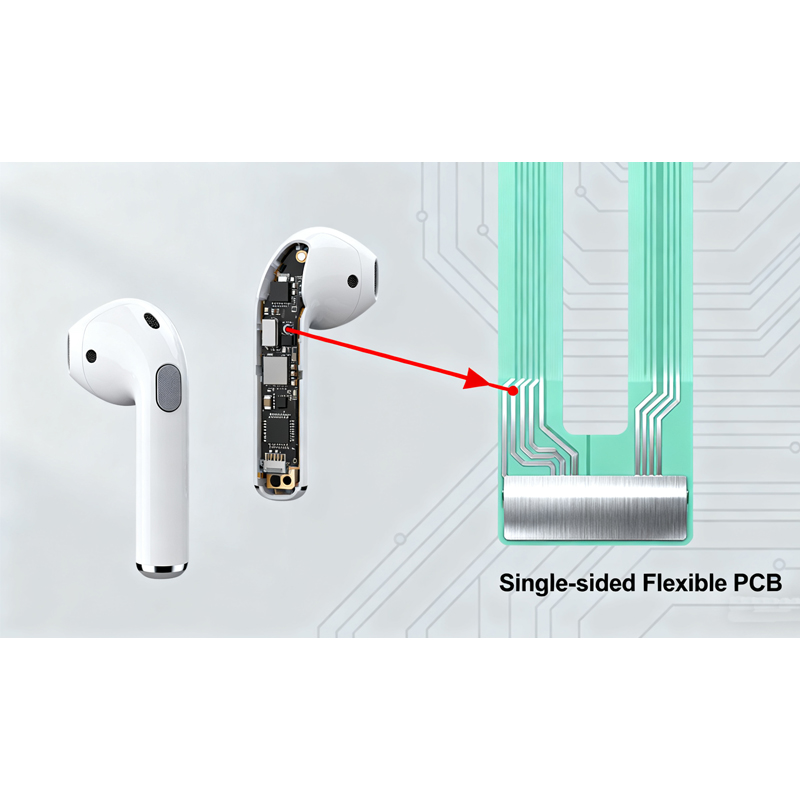

Let's be real - the secret to cheap, functional earbuds isn't some fancy tech. It's a simple, single-sided flexible PCB. Think of it as the circuit board equivalent of a basic, bendy straw. It's not smart, but it's perfect for moving simple stuff like sound and power from point A to point B inside a tiny, cramped space.

This thing is the number one choice for budget earbuds and for the non-essential wiring in pricier models. It does the job without costing much.

Where This Bendy Circuit Actually Gets Used

1. Hookin' Up the Speaker

   • Job: Connects the tiny speaker to the main board or straight to the plug. Carries the music signals.

   • Why it Works: You only need two or three wires for this. It bends to fit anywhere inside the earbud or cable, replacing a clumsy mess of individual wires. It's also crazy thin, saving every bit of space.

   • See it In: The flat, ribbon-like cable inside wired earbuds, and the connections in a TWS charging case.

2. Connecting Your Tap & Click Controls

   • Job: When you tap the earbud to skip a song or press a button, this carries that simple "do something" signal.

   • Why it Works: Control signals are super basic. This is the cheapest way to make that connection. It can be shaped to fit perfectly inside a curved earbud stem, making assembly a breeze for factories.

   • See it In: The touch strips on cheaper wireless earbuds and the cable inside the volume control on wired headphones.





3. Handling Charging & Power

   • Job: Brings power from the charging case to the battery, or connects the battery to the main board.

   • Why it Works: Power only needs a positive and negative line. This flexible circuit can be routed around the battery and speaker in ridiculously tight spaces. It's way more adaptable than a stiff board and a fraction of the cost of a complex one.

   • See it In: The little spring-loaded pins in a TWS case and the thin power ribbon connected to the earbud's battery.

4. For the Microphone

   • Job: Takes your voice from the mic to the main board for calls or voice commands.

   • Why it Works: A mic signal is simple. The flexibility means it can be stuffed into any weird-shaped gap in the earbud shell and it won't break from being flexed every day.

   • See it In: Any earbud that lets you make phone calls.

Why This Simple Design is a Total Win for Earbuds

• It's Dirt-Cheap: The single-layer design is simple and fast to produce. For companies pumping out millions of budget earbuds, the low cost is everything.

• It's Tough as Nails: You can tie this stuff in a knot and it'll still work. It can handle being stuffed in a pocket, tangled, and the daily open/close of a charging case.

• It's Crazy Thin: We're talking tissue-paper thin. This lets engineers slide it into places where even a human hair would feel thick.

• It's All You Need: Earbuds don't need a supercomputer. For basic audio, power, and controls, a few simple lines on one layer are all that's necessary. No need to overcomplicate it.

The Bottom Line

This single-sided flex PCB isn't glamorous. It's a workhorse. It's the reason you can buy a pair of surprisingly decent earbuds for next to nothing. It proves that sometimes, the simplest, toughest, and cheapest solution is absolutely the right one.
