Printed Wiring Board: The Foundation of Modern Electronics

Date: 2026-03-03

You've probably heard the term "PCB" a thousand times. But have you ever come across "PWB"? They're not quite the same thing—and understanding the difference gives you a clearer picture of what goes into the electronic products you build.

Printed Wiring Boards, or PWBs, are the unsung foundation of virtually every electronic device made today. From the smartphone in your pocket to the medical equipment in hospitals, from automotive control systems to industrial machinery—they all start with a PWB.

This guide explains what PWBs are, how they differ from PCBs, the types available, and what to look for when choosing a manufacturer for your next project.


What Exactly Is a Printed Wiring Board?

Printed Wiring Board (PWB) is a flat board made of insulating material with conductive pathways—called "traces"—printed or etched onto its surface . These traces create the electrical connections between components that will later be mounted on the board .

Think of a PWB as the skeleton and nervous system of an electronic device. It provides:

  • Mechanical support: A rigid foundation that holds all components in place

  • Electrical connections: Conductive paths that carry signals and power between components

  • Thermal management: A way to dissipate heat from components

The base material is typically FR-4, a flame-retardant composite of fiberglass and epoxy resin . Copper foil is laminated onto this base, then etched away to leave only the desired wiring pattern. A protective solder mask covers the copper, and silkscreen markings show where components go .


PWB vs. PCB: What's the Difference?

This is where it gets interesting. The terms PWB and PCB are often used interchangeably, but technically they're not identical .

Printed Wiring Board (PWB) refers specifically to the bare board with its conductive traces—the wiring that connects points on the board. The name comes from the early days of electronics, when boards provided simple point-to-point connections without any consideration for how those connections might affect circuit behavior .

Printed Circuit Board (PCB) is a broader term that includes both the wiring and the fact that the board's design deliberately influences the electrical characteristics of the circuit—things like impedance control, capacitance between layers, and signal integrity .

Here's the practical difference:

AspectPWBPCB
FocusPoint-to-point connectionsCircuit performance and behavior
IncludesTraces, pads, viasTraces + impedance control, controlled capacitance
Historical usageEarly term (1903)Modern term (1947 onward)
TodayStill used, especially in Japan where "PCB" also means a toxic chemicalUniversal term worldwide

In 1999, the IPC Technical Activities Executive Committee made a decision: for all new document development, they would use only the term PCB . Why? Because in modern board design, the printed circuitry almost always has an impact on electrical function—it's rarely just simple point-to-point wiring anymore.

That said, PWB is still used, particularly in regions where "PCB" has another meaning. In Japan, for example, PCB also refers to polychlorinated biphenyls—a class of toxic chemicals—so many prefer PWB to avoid confusion .

For practical purposes, you can treat them as the same thing. But knowing the distinction shows you understand the history and nuance of circuit board technology.


Types of Printed Wiring Boards

PWBs come in several configurations, each suited to different applications :

Single-Sided PWBs

These have copper traces on only one side of the insulating base. They're the simplest and most cost-effective option, used in basic electronics where circuit complexity is low . Think power supplies, calculators, and simple consumer gadgets.

Double-Sided PWBs

With traces on both sides, double-sided boards offer more routing flexibility. Components can be mounted on either side, and plated through-holes (vias) connect the two layers . These are common in audio equipment, industrial controls, and automotive dashboards.

Multi-Layer PWBs

For complex electronics where space is tight, multi-layer boards stack several conductive layers separated by insulating material. A 4-layer board might have two signal layers plus dedicated power and ground planes. High-end designs can go to 20 layers or more . These are essential for smartphones, computers, and advanced medical devices.

Flexible PWBs

Instead of rigid FR-4, flexible PWBs use polyimide or polyester film as the base material . They can bend, fold, and fit into tight spaces—perfect for wearables, foldable phones, and applications where the board must move during use .

Rigid-Flex PWBs

These combine rigid and flexible sections in a single board, offering the best of both worlds: stability where components mount, and flexibility for interconnects .


The Materials That Make PWBs Work

Every PWB is built from several key materials :

Substrate: The base material provides mechanical strength and electrical insulation. Most common is FR-4, but other options include:

MaterialPropertiesTypical Use
FR-4 (glass/epoxy)Strong, good electricals, flame retardantGeneral-purpose boards
CEM-1Paper/epoxy composite, cheaperConsumer electronics
PolyimideHigh temperature, flexibleFlex circuits, high-temp applications
PTFE (Teflon)Low loss at high frequenciesRF and microwave boards

Copper Foil: The conductive layer, typically 17, 35, or 70 microns thick . Thicker copper handles more current but is harder to etch finely.

Solder Mask: The protective coating (usually green) that covers copper traces, preventing shorts and corrosion .

Silkscreen: White markings that show component outlines, reference designators, and test points—the map for assembly and troubleshooting .


How PWBs Are Made: The Basic Process

While full fabrication involves many steps, here's the simplified version :

  1. Start with copper-clad laminate—insulating material with copper foil bonded to one or both sides

  2. Apply photoresist—a light-sensitive film that will define the circuit pattern

  3. Expose and develop—using a photomask or laser to harden the resist where traces should remain

  4. Etch away unwanted copper—chemicals remove copper not protected by hardened resist

  5. Strip remaining resist—leaving only the desired copper traces

  6. Apply solder mask—protecting the copper and defining where components will solder

  7. Add silkscreen—printing component outlines and identifiers

  8. Apply surface finish—protecting exposed pads (HASL, ENIG, OSP, etc.)

  9. Test electrically—ensuring no shorts or opens

For multi-layer boards, inner layers are created first, then stacked with insulating prepreg between them and laminated under heat and pressure before drilling and plating the vias .

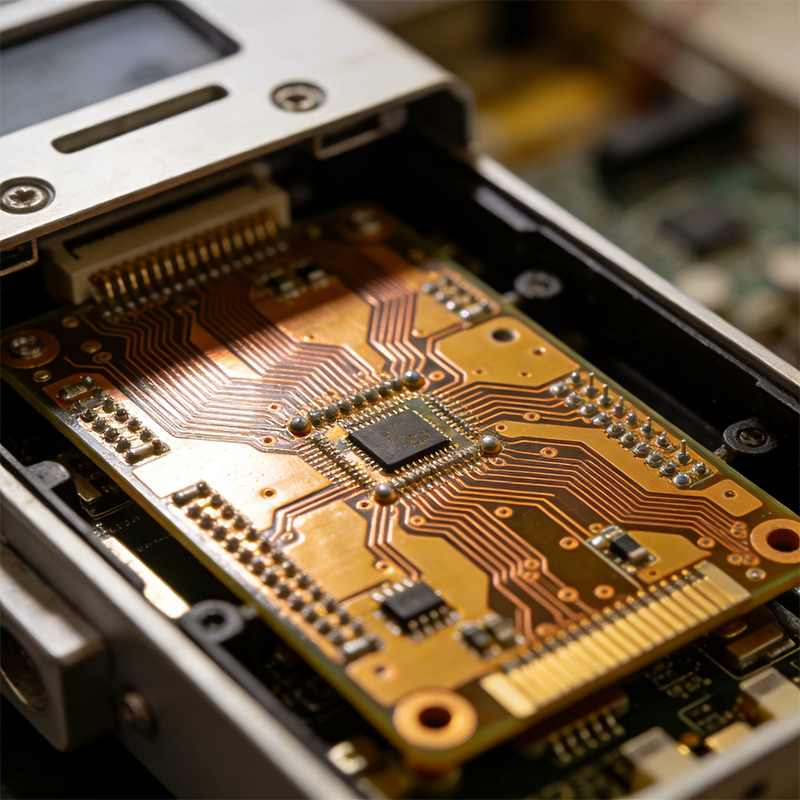

印刷电路板 (3).jpg


Why PWBs Matter in Modern Electronics

PWBs aren't just a technical detail—they're fundamental to how electronics are designed and manufactured :

Reliability: PWBs provide stable, durable connections that withstand vibration, temperature changes, and years of use. Unlike point-to-point wiring, which can loosen or short over time, properly manufactured PWBs maintain their integrity for decades .

Compact Design: By organizing components and traces efficiently, PWBs enable the incredible miniaturization we see in modern devices. A smartphone today has more computing power than a room-sized computer from fifty years ago, thanks in large part to advanced PWB technology.

Manufacturing Efficiency: PWBs are designed for automated assembly. Pick-and-place machines can populate boards in seconds, and reflow ovens solder everything at once. This scalability is what makes electronics affordable .

Consistency: Every PWB from a production run is identical—something impossible with hand-wired circuits. This repeatability is essential for quality control and reliability.

Signal Integrity: In high-speed designs, the controlled impedance of well-designed PWBs ensures signals arrive cleanly without reflections or crosstalk.


Applications Across Industries

PWBs are everywhere :

Consumer Electronics: Smartphones, tablets, laptops, TVs, gaming consoles—every device you use daily contains multiple PWBs.

Automotive: Modern cars rely on PWBs for engine control units, infotainment systems, ADAS sensors, and battery management in electric vehicles. These must withstand vibration, temperature extremes, and harsh environments .

Medical Devices: Patient monitors, diagnostic equipment, implantable devices—all depend on PWBs for reliable operation where failure isn't an option.

Industrial Automation: Factory control systems, robotics, and power electronics use PWBs designed to handle industrial conditions .

Telecommunications: 5G infrastructure, routers, and switches require high-frequency PWBs that maintain signal integrity at gigabit speeds.

Aerospace and Defense: Avionics, guidance systems, and communications gear use PWBs built to the highest reliability standards.


Choosing the Right PWB for Your Project

When specifying PWBs for your products, consider :

Layer count: Simple designs may need only 1-2 layers; complex products require 4, 6, 8, or more. High-end applications can go to 30+ layers.

Material: FR-4 works for most applications. High-frequency designs need low-loss materials like Rogers or PTFE. High-temperature environments may require polyimide.

Copper weight: Standard 1 oz (35 µm) handles most needs. Power applications may need 2 oz, 3 oz, or more.

Surface finish: HASL is cost-effective; ENIG provides flat pads for fine-pitch components; OSP is simple and cheap for consumer goods.

Quality class: IPC Class 2 for most commercial products; Class 3 for mission-critical applications where failure is not acceptable.

Special requirements: Flexible circuits, rigid-flex, HDI with microvias, controlled impedance, or specific certifications (automotive, medical, aerospace).


From PWB to Finished Product

A bare PWB is just the beginning. Once your boards are fabricated, they need to be populated with components—a process called PCBA (Printed Circuit Board Assembly) .

This involves:

  • Solder paste printing

  • Pick-and-place component mounting

  • Reflow soldering

  • Inspection and testing

Working with a manufacturer that offers both PWB fabrication and PCBA services simplifies your supply chain, ensures quality accountability, and gets your products to market faster.


Why Kaboer Should Be Your PWB Partner

At Kaboer, we've been manufacturing printed wiring boards since 2009. Based in Shenzhen, China—the heart of global electronics manufacturing—we combine 16 years of experience with state-of-the-art facilities to deliver boards you can count on.

Our PWB Capabilities

We produce the full spectrum of printed wiring boards:

  • Rigid PWBs: 1-30 layers, from standard FR-4 to high-performance materials

  • Flexible PWBs (FPC) : 1-20 layers, 0.075mm to 0.4mm thickness—ideal for wearables and compact designs

  • Rigid-Flex PWBs: 2-30 layers, combining rigid stability with flexible interconnects

  • HDI High-Density Boards: Microvias, fine lines, advanced stackups for the latest BGA and high-speed designs

  • High-Frequency Backplanes: Low-loss materials for 5G, radar, and RF systems

  • Metal-Core Boards: Aluminum or copper base for excellent heat dissipation

Integrated PCBA Services

We don't just make bare boards—we populate them. Our in-house PCBA facility means you get fully assembled, tested modules ready for integration. One partner, one quality standard, one point of accountability.

Quality You Can Trust

We're certified to international standards:

  • ISO 9001:2015 (Quality Management)

  • IATF 16949:2016 (Automotive)

  • ISO 14001:2015 (Environmental Management)

  • UL and RoHS compliance

Our boards meet IPC Class 2 and Class 3 requirements for applications that demand the highest reliability.

Scale to Match Your Needs

With monthly capacity exceeding 15,000 square meters for flexible and rigid-flex boards, plus 8,000 square meters for rigid PWBs, we handle everything from quick-turn prototypes to high-volume production.

Our Promise: Transparency and Partnership

We believe the best partnerships are built on trust. That's why we welcome our global clients to visit our factory in Shenzhen. Walk our production floors. Meet our engineering team. See firsthand how your printed wiring boards will be made.

From smartphones and wearables to automotive battery management and medical devices, we've helped companies around the world solve their toughest circuit board challenges. We'd love to help you with yours.


The Bottom Line

Printed Wiring Boards may be an older term, but they remain the foundation of modern electronics. Whether you call them PWBs, PCBs, or circuit boards, these remarkable products make every electronic device possible.

Understanding the terminology, the types available, and the manufacturing process helps you make better decisions for your products. And working with the right partner ensures those decisions translate into reliable, high-performance hardware.

Ready to bring your next project to life? Contact Kaboer today. Better yet—come visit us in Shenzhen and see for yourself how we turn printed wiring board designs into reality.
