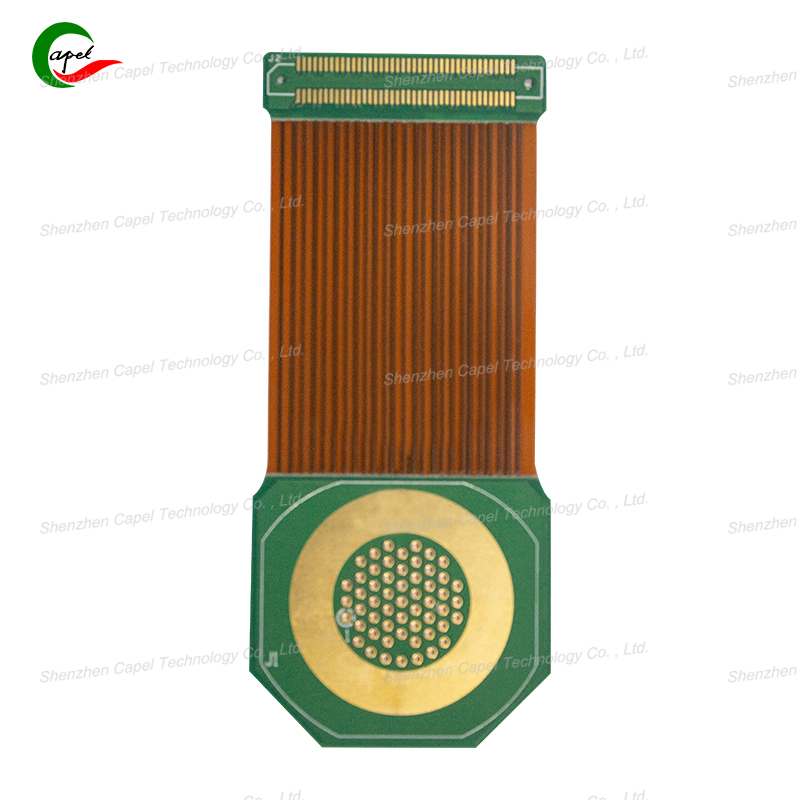

Hold a rigid-flex PCB in your hand—it looks complex: rigid sections with chips, flexible layers that bend, and tiny traces snaking between them. For beginners, the thought of repairing or inspecting it might feel like fixing a watch with no manual. But here’s the truth: rigid-flex PCBs aren’t as intimidating as they seem.
Unlike traditional rigid PCBs (which only break in flat, easy-to-see ways) or FPCs (which tear easily), rigid-flex issues usually fall into 3 simple categories: loose connectors, cracked flexible layers, or damaged traces. And you don’t need fancy tools—basic equipment (a magnifying glass, soldering iron, multimeter) and step-by-step checks are enough. Below, we’ll break down beginner-friendly inspection methods and repair tricks, with real examples (like fixing a drone’s rigid-flex PCB or a smartwatch’s power issue) to make it concrete.
You don’t need a $10,000 lab setup. Here’s what you’ll need (most cost under $50):
-
Magnifying Glass (10-20x): To spot tiny cracks in flexible layers or loose solder joints. A $15 pocket magnifier works perfectly.
-
Digital Multimeter: To test if traces are conducting electricity (no breaks) and connectors are working. A basic $20 multimeter (like the Fluke 101) is ideal.
-
Low-Temperature Soldering Iron (250-300°C): For fixing loose connectors—high temperatures will damage flexible layers. A $30 soldering iron with a fine tip (1mm) is key.
-
Tweezers (Anti-Static): To handle small components without damaging traces. Anti-static tweezers ($10) prevent static from frying chips.
-
Isopropyl Alcohol (99%) + Cotton Swabs: To clean dirt or flux (residue from soldering) off the PCB—dirt can hide cracks or cause short circuits.
Pro Tip for Beginners: Start with a "practice rigid-flex PCB" (you can buy cheap used ones online for $5-$10) to test tools before working on a real device.
Inspection comes before repair. You need to answer: Where is the issue? Most rigid-flex problems are visible if you look closely. Follow this 4-step check:
Look for these 3 common issues:
-
Cracked Flexible Layers: The flexible part (usually brown or black) might have tiny lines—these are cracks. For example, a drone’s rigid-flex PCB (used to connect the camera to the battery) often cracks where it bends near the propeller.
-
Loose Connectors: The rigid section’s connectors (small plastic plugs) might be wiggly or have bent pins. A smartwatch’s rigid-flex PCB connector (for the screen) often gets loose if the watch is dropped.
-
Damaged Traces: The thin copper lines (traces) on rigid/flexible parts might be scratched or missing. A fitness tracker’s rigid-flex PCB traces can get damaged if water seeps in (look for green corrosion).
Example: A beginner noticed their wireless earbud’s sound cut out. Using a magnifying glass, they saw a tiny crack in the flexible layer connecting the speaker to the battery—this was the problem.
If you can’t see a problem, test if traces are "broken" (no electricity flow):
-
Set your multimeter to "continuity mode" (it beeps when electricity flows).
-
Touch one probe to the start of a trace (e.g., near a connector) and the other to the end.
-
If it doesn’t beep: The trace is broken. If it does beep: The trace is good.
Example: A beginner’s robot’s rigid-flex PCB wasn’t powering on. They tested the power trace (from battery connector to chip) with a multimeter—no beep meant the trace was broken.
Gently bend the flexible layer (10-15°) while checking the device:
-
If the device works when bent one way but not another: The flexible layer has a "break that only shows when bent" (common in foldable phone rigid-flex PCBs).
-
Don’t bend more than 20°—you’ll make cracks worse!
Example: A beginner’s foldable tablet’s screen flickered. Bending the flexible layer slightly stopped the flicker—this meant the layer had a partial crack.
Gently wiggle the connector (on the rigid section) while the device is on:
-
If the device glitches (e.g., screen cuts out, sensor stops working): The connector is loose.
Example: A beginner’s car backup camera (powered by a rigid-flex PCB) had a fuzzy image. Wiggling the PCB’s connector fixed the image—loose connector was the issue.
Once you’ve found the problem, use these simple fixes. Remember: Start small—don’t try to repair tiny traces first (practice on larger ones!).
Loose connectors are the easiest to fix—no soldering needed (sometimes):
-
If pins are straight: Gently push the connector back into its socket (use tweezers to hold it steady). For example, a smartwatch’s screen connector can be re-seated by pushing it firmly.
-
If pins are bent: Use tweezers to straighten bent pins (be gentle—pins break easily). Then push the connector back in.
Example: A beginner’s laptop webcam (rigid-flex PCB) wasn’t working. They saw a bent pin in the connector, straightened it with tweezers, and pushed the connector back—webcam worked!
For tiny cracks (not full breaks), use "conductive glue" (a glue that carries electricity):
-
Clean the crack with isopropyl alcohol and a cotton swab.
-
Apply a tiny drop of conductive glue (e.g., MG Chemicals 8331) over the crack.
-
Let it dry for 30 minutes (follow glue instructions).
Example: The beginner with the earbud’s cracked flexible layer used conductive glue—after drying, the earbud played sound again.
For short, thick traces (easy to reach), use a soldering iron:
-
Clean the area with isopropyl alcohol.
-
Heat the soldering iron to 280°C (low enough to avoid damaging flexible layers).
-
Apply a tiny amount of solder over the broken trace (connect the two ends).
-
Let it cool for 10 minutes—test with a multimeter (continuity mode) to confirm it works.
Pro Tip: Don’t try this on tiny traces (0.1mm or thinner) as a beginner—stick to traces 0.2mm+ wide.
Example: The beginner with the robot’s broken power trace soldered a small amount of solder over the break. The multimeter beeped—trace was fixed, and the robot powered on.
After repairing, do these 3 checks to avoid re-failure:
-
Re-test Continuity: Use the multimeter to confirm traces/connectors still work.
-
Bend Test Again: Gently bend the flexible layer 5-10 times—if the device still works, the repair is strong.
-
Clean the PCB: Wipe the area with isopropyl alcohol to remove solder flux or glue residue—residue can attract dirt.
Example: After fixing the earbud’s flexible layer, the beginner re-tested continuity (beeped), bent the layer (sound stayed on), and cleaned the PCB—earbud worked for 6 months!
Even pros make mistakes—here’s how to skip the most common ones:
-
Using Too Much Heat: A 400°C soldering iron will melt flexible layers. Stick to 250-300°C.
-
Bending Too Hard: Bending flexible layers 90° will create new cracks. Never bend more than 20°.
-
Ignoring Static: Static from your hands can fry chips. Touch a metal surface (e.g., a table leg) before handling the PCB to discharge static.
-
Rushing Inspection: Skipping the continuity test might mean you miss a hidden break. Always test before repairing.
You don’t need years of experience to repair or inspect a rigid-flex PCB. With a basic toolkit, a slow, careful approach, and the steps above, you can fix common issues: loose connectors, small cracks, and broken traces.
The key is to start simple: Practice on cheap, used PCBs first, focus on visible problems (not tiny traces), and test every step. A beginner once told me they fixed their drone’s rigid-flex PCB (which a repair shop quoted $50 for) with a $15 magnifying glass and $20 multimeter—proof that anyone can do this.
Next time your smartwatch, drone, or earbud stops working (and you suspect a rigid-flex PCB issue), don’t panic. Grab your toolkit, follow the inspection steps, and try a simple repair. You might be surprised at how easy it is—and how much money you’ll save.
