What Exactly is a Stencil Circuit Board?

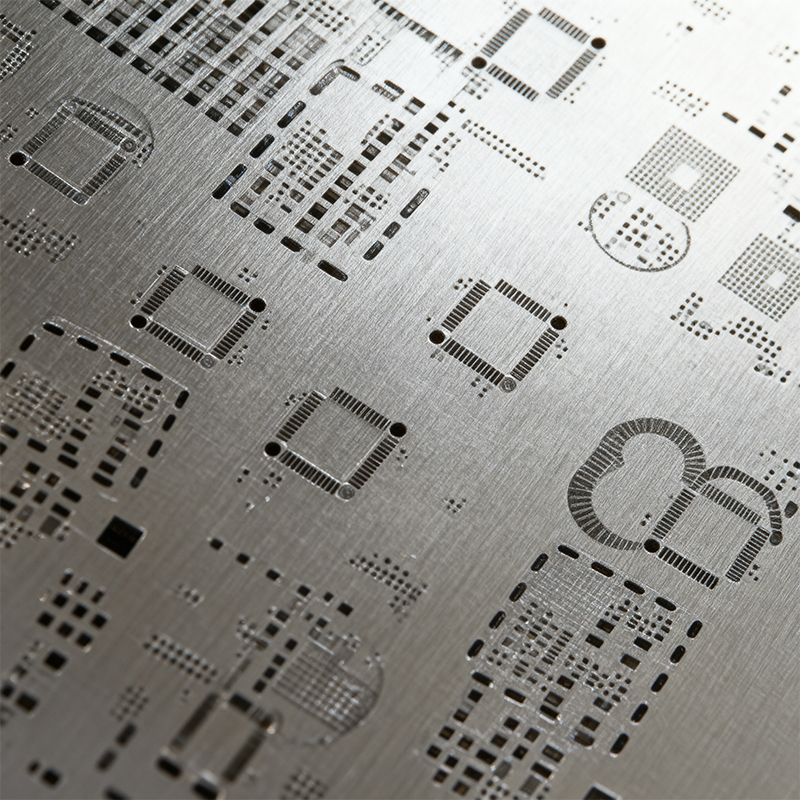

Let’s clarify the terminology first: while "stencil circuit board" is a common search phrase, it typically refers to the solder paste stencil used in PCB assembly. A stencil is not the circuit board itself, but a precision tool—usually a thin sheet of laser-cut stainless steel or nickel—that enables accurate solder paste deposition onto a circuit board's pads during Surface Mount Technology (SMT) assembly.

Think of it as a sophisticated, reusable template that ensures the right amount of solder paste is applied in exactly the right places before components are placed. Its precision directly determines solder joint quality, directly impacting your PCB’s reliability and performance.

The Critical Role of Solder Paste Stencils in SMT Assembly

Why does this seemingly simple tool deserve so much attention? Because in modern electronics manufacturing, the stencil sits at the very beginning of the SMT process chain, and any defect introduced here propagates through every subsequent step.

Key Functions:

• Volume Control: Dictates the precise amount of solder paste deposited on each pad.

• Positional Accuracy: Ensures paste aligns perfectly with the PCB's footprint.

• Process Consistency: Enables repeatable, high-yield production across thousands of boards.

• Yield Foundation: A high-quality stencil directly reduces defects like bridging, insufficient solder, or tombstoning.


Types of Solder Paste Stencils: Materials and Technologies

Choosing the right stencil is a technical decision. Here’s a breakdown of the most common types:

1. Laser-Cut Stainless Steel Stencils
The industry workhorse, made by using a laser to vaporize material from a stainless steel sheet.

• Pros: Excellent durability, good precision, cost-effective for most applications.

• Cons: Laser heat can create micro-burns, leading to slightly rougher aperture walls that may affect paste release.

• Best for: High-volume production of standard SMT boards.

2. Electroformed Nickel Stencils
Created through an additive plating process, forming nickel walls around a mandrel.

• Pros: Superior, smooth aperture walls for excellent paste release; ideal for ultra-fine-pitch components (<0.4mm).

• Cons: Higher cost; longer lead time; less durable than stainless steel.

• Best for: Advanced applications with micro-BGAs, 01005 components, or strict volume requirements.

3. Hybrid Stencils (Step-Stencils)
Feature varying thicknesses across the same foil, often achieved through chemical etching or multiple layers.

• Pros: Allows different solder volumes on the same board (e.g., more paste for large connectors, less for fine-pitch ICs).

• Cons: More complex and expensive to manufacture.

• Best for: Mixed-technology boards with a wide variety of component sizes.

4. Nano-Coated Stencils
Standard laser-cut stencils treated with a ultra-smooth, non-stick coating (e.g., nickel Teflon).

• Pros: Dramatically improves paste release, reducing wiping frequency and downtime.

• Cons: Coating can wear over time with aggressive cleaning.

• Best for: High-volume lines aiming to maximize uptime and paste efficiency.

Key Design and Specification Parameters

A stencil is defined by more than just its material. To specify or evaluate one, you need to understand these critical parameters:

The Area Ratio Rule: This is the golden rule for stencil design. For reliable paste transfer, the Area Ratio should ideally be >0.66. For very small apertures, designers may need to slightly enlarge the aperture vs. the pad or opt for a thinner stencil foil.

Common Stencil-Related Challenges and Practical Solutions

Even with a perfect stencil, issues arise. Here’s how to troubleshoot:

Challenge 1: Inconsistent Paste Volume

• Symptoms: Varying solder joint heights, some opens, some bridges.

• Likely Causes: Worn or clogged stencil, inadequate stencil cleaning, poor printer setup.

• Fix: Implement regular, documented cleaning cycles. Verify printer settings (pressure, speed, separation). Inspect stencil underside for damage or debris.

Challenge 2: Poor Paste Release for Fine-Pitch Components

• Symptoms: Sparse or missing paste on small pads.

• Likely Causes: Aperture walls are too rough, area ratio is too low, paste rheology is wrong.

• Fix: Use electroformed or nano-coated stencils for fine-pitch. Review aperture design with your assembler. Consider a different solder paste formulation.

Challenge 3: Solder Balling

• Symptoms: Tiny solder balls scattered around pads after reflow.

• Likely Causes: Stencil is too thick for the application, causing excessive paste. Poor stencil-to-board gasketting leads to paste bleeding.

• Fix: Review stencil thickness choice. Ensure proper under-board support during printing.

The Proactive Approach: The best solution is partnering with an assembler who treats stencils as a critical process variable, not a commodity. They should analyze your design and recommend the optimal stencil strategy before it's manufactured.

From Design to Print: How Kaboer Integrates Stencil Expertise

At Kaboer, we know that success in SMT assembly starts long before the first component is placed—it starts with the perfect print. Our approach in Shenzhen, China, integrates stencil design and management into our full turnkey PCBA service.

Our Stencil Process:

1. DFM with Stencil Focus: Our engineering review doesn’t just check the board; we analyze the pad geometry to predict stencil performance. We’ll flag areas with risky area ratios and suggest pad or stencil design modifications to ensure a robust process.

2. In-House Stencil Management: For our customers, we often handle stencil specification, procurement, and qualification as part of the project. We maintain specifications for different product types (standard, fine-pitch, mixed-tech) to eliminate guesswork.

3. Process Validation: We don’t just load a new stencil and run. We perform print tests, measure paste volume with 3D SPI (Solder Paste Inspection), and fine-tune the printer settings to achieve a Certified Print Process for your specific board.

4. Lifecycle Management: We monitor stencil performance over time, tracking cleaning cycles and print quality to recommend re-coating or replacement before it impacts your yield.

For manufacturers looking to outsource, this level of detail matters. It means you’re not just sending Gerber files to a factory; you’re leveraging an engineer’s mindset that proactively manages the variables—starting with the stencil circuit board tool itself—to ensure a smooth, high-yield production run.

Making the Right Choice: A Quick Checklist

When sourcing PCBA services, ask your potential partner these stencil-related questions:

• Do you provide stencil design recommendations as part of your DFM?

• What stencil technologies do you typically use for boards with 0.5mm pitch components? 0.4mm?

• How do you validate and document the printing process for a new product?

• What is your stencil maintenance and inspection procedure?

The answers will reveal whether they view the stencil as a precision instrument or just a piece of metal.

Conclusion: Don’t Underestimate the Template
