If you’ve ever looked inside a modern electronic gadget – a smartphone, a smartwatch, or even a car key – you’ve seen surface mount devices. Those tiny little black rectangles, silver caps, and barely-visible components that sit flat on the circuit board. They’re everywhere.

But what exactly is a surface mount device? Why did it replace the older “through-hole” components? And if you’re designing a product with flexible PCBs, rigid-flex, or high-frequency HDI boards, what should you know about SMD assembly?

Let’s walk through it in plain English. No fluff. Just what matters for a manufacturer like you.

What Is a Surface Mount Device (SMD)?

Put simply, a surface mount device is an electronic component designed to be soldered directly onto the surface of a printed circuit board (PCB). Unlike old-school components that had long metal leads poked through holes, SMDs sit on top of the board and get soldered onto copper pads.

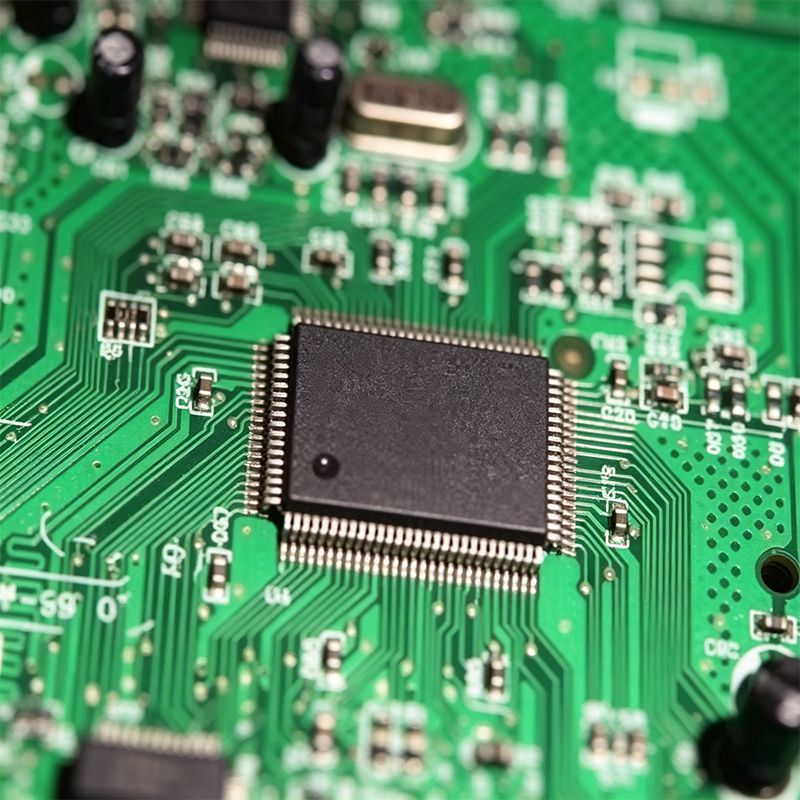

You’ve seen them: resistors the size of a grain of sand, capacitors that look like tiny brown bricks, and chips with dozens of little legs sticking out sideways.

Common examples:

• Chip resistors (like 0402, 0603, 0805)

• Ceramic capacitors (MLCCs)

• Small transistors and diodes

• ICs (chips) in SOIC, QFP, or BGA packages

• LEDs

SMD vs Through-Hole – What’s the Difference?

Before SMD became the standard, most components were through-hole. You stuck their wires through drilled holes and soldered them on the other side. That worked fine for old radios and bulky equipment. But today’s products are smaller, faster, and cheaper – and through-hole can’t keep up.

Here’s a quick comparison:

The bottom line: SMD is the backbone of modern electronics manufacturing.

Why SMD Changed Everything

When SMD came along in the 1980s, it allowed engineers to shrink products dramatically. A cell phone from 1990 was the size of a brick. Today’s phone has ten times the components in a much smaller space – thanks to SMD.

Benefits you’ll care about:

• Smaller devices – You can pack more function into less space.

• Faster assembly – Pick-and-place machines can mount 20,000+ SMD parts per hour.

• Better high-frequency performance – No long leads that act like antennas. Signals stay clean.

• Lower manufacturing cost – Less material, faster assembly, fewer drilling steps.

• Double-sided assembly – You can put components on both sides of the board.

The Challenge – Working With SMD on Advanced Boards

SMD is great, but it’s not always simple – especially when your board isn’t a standard rigid FR4 slab.

Flexible PCBs

SMD components on a board that bends? That’s tricky. Solder joints are brittle. If you bend a standard SMD assembly, the solder cracks. We solve this by using flexible adhesives, proper stiffener placement, and component orientation that aligns with the bend axis.

Rigid-Flex Boards

On a rigid-flex board, you have rigid sections (where SMD components live) and flexible tails (where only pads and traces go). The challenge is keeping the SMD placement accurate across the rigid sections, since the board as a whole may warp slightly. We use custom tooling to hold everything flat during assembly.

HDI High-Frequency Boards

These boards have microvias, ultra-fine lines (down to 0.075mm), and tightly packed SMD pads – sometimes with 0.4mm pitch BGAs. Standard assembly machines can’t reliably place these. Our machines have high-resolution alignment systems and we use 3D solder paste inspection to catch defects before reflow.

Our SMD Assembly Process – The Short Version

We don’t just slap components on a board. Here’s what we do, step by step:

1. Solder paste printing – A stencil applies paste exactly where SMD pads are. For fine-pitch components, we use electroformed stencils and check paste volume with a 3D SPI machine.

2. Pick-and-place – High-speed machines place every SMD component from 01005 (tiny) up to large BGAs. Placement accuracy is within ±0.025mm.

3. Reflow soldering – The board goes through a precisely controlled oven. The paste melts and solidifies, forming perfect joints.

4. AOI (Automated Optical Inspection) – Cameras check each component: missing parts, polarity, bridges, insufficient solder.

5. X-ray for hidden joints – For BGA or QFN components where you can’t see the pins, we use X-ray inspection.

6. Testing – ICT (in-circuit test) or functional test to make sure the board actually works.

For flex and rigid-flex, we add extra steps – like pre-baking flex boards to remove moisture, and using vacuum support to keep them flat during printing.

What About Through-Hole? Do We Still Need It?

Yes, some parts still need through-hole – big connectors, transformers, heavy relays, or components that take mechanical stress. We do both. We can mix SMD and through-hole on the same board (that’s called a mixed assembly). But for 90% of modern electronics, SMD is the way to go.

Why You Should Let Us Handle Your SMD Assembly

We’re not a giant factory that only cares about volume. We’re a custom shop that cares about getting it right – especially for challenging boards like flex, rigid-flex, and HDI.

• We assemble any SMD package – from humble resistors to 0.4mm pitch BGAs.

• We handle flex and rigid-flex – without cracking solder joints.

• We test every board – not just a sample.

• We keep small-batch affordable – so you can prototype with real SMD assemblies, not just hand-soldered mess.

Ready to Move Your Design to Production?

Whether you have a rigid board, a flexible circuit, or a complex rigid-flex hybrid, we can populate it with SMD components quickly and reliably. Send us your BOM and Gerber files. We’ll give you a clear quote and a timeline.
