You've definitely had this happen. A circuit board passes every test. It works perfectly. You ship it to your customer. A few weeks later, it fails. You get it back and check — all the joints look perfectly fine. What went wrong?

The problem was hiding in plain sight. Its name is a cold solder joint. It's one of the most common — and most deceptive — soldering defects in electronics manufacturing.

In this guide, I'll explain what a cold solder joint is, what it looks like, how it forms, how to detect it, and how to fix it. Plain English, no fluff.

1. What Exactly Is a Cold Solder Joint?

A cold solder joint is simply a joint where the solder did not fully melt before it solidified. It looks like it's connected, but the solder is just "sitting" on top of the pad rather than actually bonding with it.

Think of it this way: a good solder joint is like gluing two pieces of wood together — the glue soaks into the wood and dries rock solid. A cold solder joint is like spreading glue on the surface, touching it before it dries — it looks attached, but one good bump and it falls apart.

The scary part? Cold solder joints are masters of disguise. They might conduct electricity at first and pass your tests, but the connection is weak and brittle. After a few weeks of vibration or temperature changes, they finally give out.

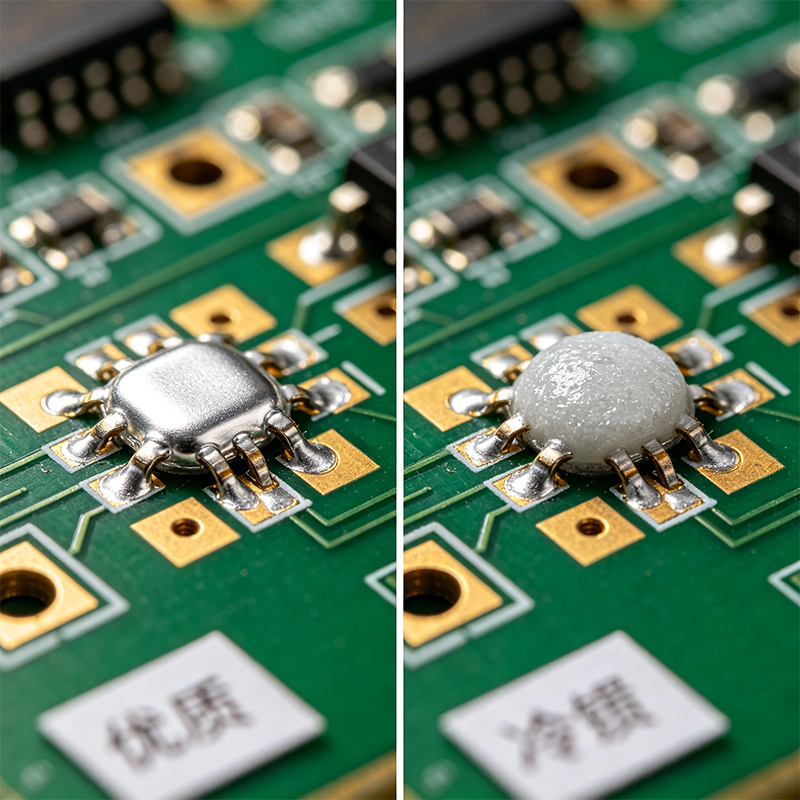

2. What Does a Cold Solder Joint Look Like?

Identifying cold solder joints is all about looking closely — with a magnifying glass or microscope. Here's how to tell a cold joint from a good one:

A good solder joint looks like:

• Smooth and shiny — like a little mirror

• Volcano-shaped — concave sides, solder smoothly feathers onto the pad

• Smooth edges — the transition from solder to pad is seamless

A cold solder joint looks like:

• Dull, grainy, and rough — like sandpaper, no metallic shine

• Ball-shaped — solder is balled up on the pad, edges are abrupt

• Gaps or micro-cracks — you might see a gap between the solder and the lead

Important: Lead-free solders are naturally duller than leaded solder. So don't rely on color alone — look for graininess and a "dry" appearance.

3. How Do Cold Solder Joints Form?

The root cause of cold solder joints is simple: not enough heat. Here are the specific ways it happens:

1. Temperature too low

The soldering temperature never reached the melting point of the solder. Maybe the iron was set too low, or the reflow oven's peak temperature wasn't high enough.

2. Not enough time

The temperature was right, but the heat didn't last long enough for the solder to fully melt.

3. Big components steal the heat

Large components (big inductors, heat sinks) soak up heat like a sponge, leaving nearby joints too cold.

4. The joint moved while cooling

If you bump the board or component while the solder is still molten, the solder solidifies with a rough, grainy surface. This is called a "disturbed joint."

5. Dirty or oxidized surfaces

Oxides or contaminants on the pad or component lead prevent the solder from wetting the surface.

4. Why Are Cold Solder Joints So Dangerous?

The deadliest thing about cold solder joints isn't that they fail — it's that they fool you into thinking everything is fine.

Trap #1: They pass the test

A board with a cold solder joint can pass power‑on testing. The joint still conducts — just with high resistance. By the time it fails, the product is already in your customer's hands.

Trap #2: They fail intermittently

When the device heats up, the board expands slightly. Thermal expansion can pull a cold joint apart. Then it cools down and reconnects. These "comes and goes" failures are an absolute nightmare to debug.

Trap #3: They hate vibration

In cars, drones, and aerospace equipment, vibration is constant. Cold solder joints are brittle and crack under fatigue.

5. How to Detect Cold Solder Joints

Cold solder joints are sneaky, but not invisible:

1. Visual inspection (with magnification)

Look at the joint under a magnifying glass or microscope — dull? Grainy? Ball‑shaped?

2. The tweezer test

Gently poke the joint with tweezers. If it cracks or moves, it's cold.

3. AOI (Automated Optical Inspection)

AOI machines use high‑resolution cameras to check joint shape and wetting angle.

4. X‑ray inspection

For hidden joints (like BGAs), X‑ray is the only way to check for voids inside the joint.

5. Electrical testing

Measure resistance — cold joints have much higher contact resistance.

6. How to Fix a Cold Solder Joint

If you find a cold solder joint, fixing it is straightforward:

Method 1: Re‑heat it

Apply the soldering iron to the joint and let the solder melt and flow again. Adding a little fresh flux helps.

Method 2: Add fresh solder

While re‑heating, add a tiny bit of new solder to improve flow.

Method 3: Remove and re‑do

If there's too much solder, use solder wick or a solder sucker to remove the old solder, then solder it fresh.

Important: After rework, re‑inspect the joint. It should look smooth and shiny.

7. How to Prevent Cold Solder Joints

Prevention is always better than repair. Follow these rules:

1. Use the right temperature

Set your iron at least 15°C above the solder's melting point. For reflow, follow the solder paste manufacturer's profile.

2. Give it enough time

Make sure the solder stays above its melting point long enough to fully melt.

3. Watch out for big components

If your board has large heat‑sucking components, compensate with higher temperature or longer time.

4. Don't move the joint while it's molten

No bumping, no moving — let it cool in peace.

5. Keep surfaces clean

Pads and leads must be free of oxides and contaminants.

6. Use the right flux

Flux helps solder wet the surface and prevents cold joints.

8. Summary

A cold solder joint is a joint where the solder didn't fully melt before solidifying. It looks dull and grainy, balled up on the pad instead of flowing smoothly. It might pass your tests, but it's weak and brittle — and it will fail when you least expect it.
