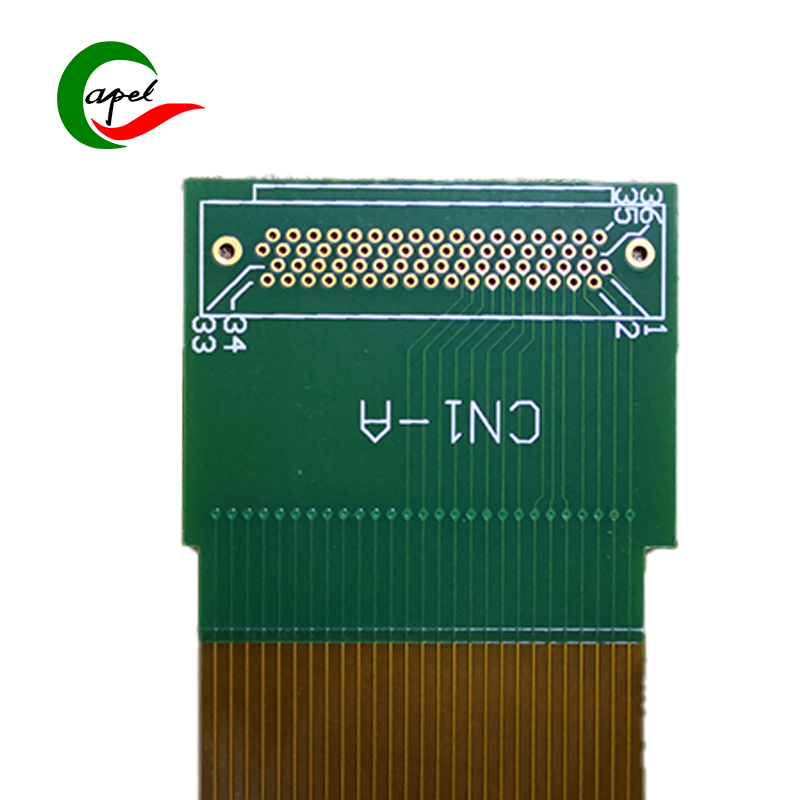

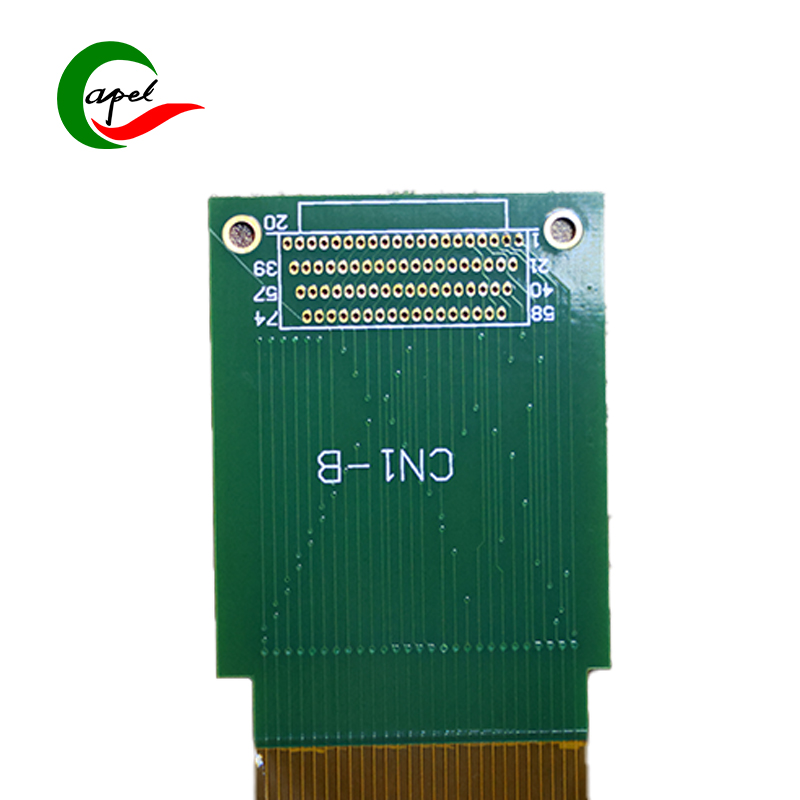

Caboer’s Double-Layer Rigid-Flex Board for Test Equipment is tailor-made for electronic component testing modules, laboratory portable instruments, and industrial online quality inspection terminals. It precisely meets the core demands of testing scenarios—data accuracy, resistance to frequent plugging, compact adaptation, and long-term durability—delivering cost-effective, robust performance as a hassle-free choice for test equipment R&D, and boosting product competitiveness!

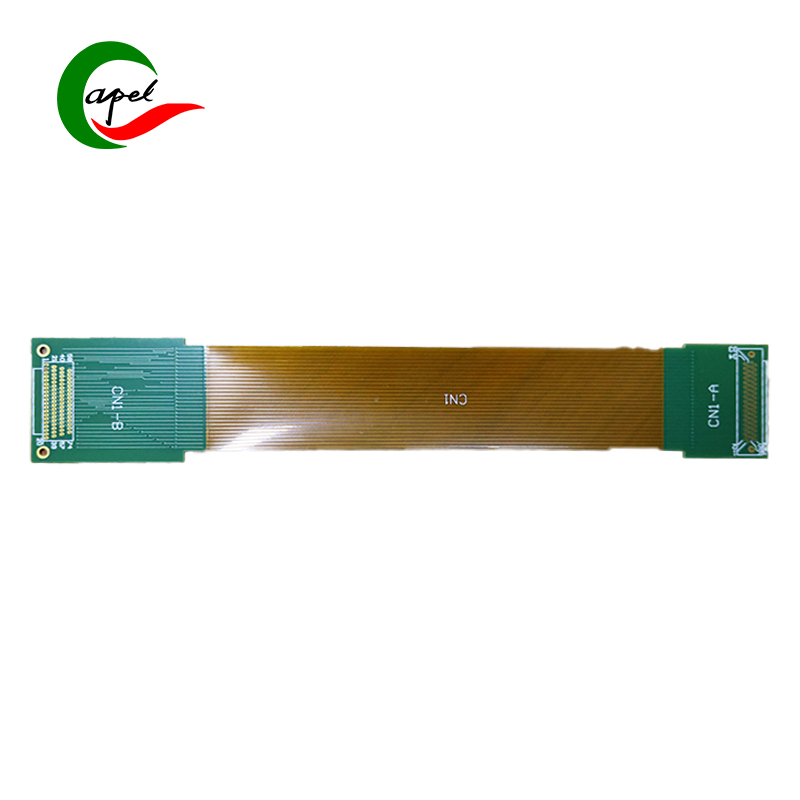

Adopting a double-layer rigid-flex synergy structure, it perfectly balances adaptability and reliability: the 0.12mm ultra-thin flexible layer offers exceptional bending toughness, flexibly fitting narrow cavities, complex wiring paths, and modular layouts inside test equipment. It easily avoids wiring interference without compromising device portability or operational flexibility; the 1.6mm thickened rigid layer provides outstanding structural strength, stably supporting core components such as test chips, data acquisition modules, and high-frequency connectors. This achieves efficient integration of "flexible adaptation to compact spaces + rigid robust load-bearing". With precise dimensions of 34.8*20mm, the compact layout saves valuable space, perfectly aligning with the design needs of portable and miniaturized test equipment while freeing up room for other functional modules.

Key advantages directly address testing scenario pain points, adding tangible value: ① Full-board immersion gold finish delivers ultra-low contact resistance, superior oxidation resistance, and wear resistance from frequent plugging. It endures high-frequency insertion/extraction and long-term use in test equipment, ensuring high-speed, distortion-free signal transmission, minimizing data errors at the source, and enhancing the credibility of test results; ② Solder mask with white characters + through-hole design features clear markings, facilitating automated module assembly, rapid debugging, and post-maintenance. This significantly improves production efficiency and operational convenience, reducing bulk application costs; ③ Double-layer scientific wiring layout rationally separates signal and power paths, effectively suppressing electromagnetic interference (EMI). Even in complex testing environments, it ensures stable transmission of weak signals, adapting to the full-process collaboration of "signal collection - data processing - result output" and meeting high-precision testing requirements.

Backed by Caboer’s mature customization capabilities and strict quality control system, this double-layer rigid-flex board can be tailored to test equipment’s specific needs—adjusting interface types and wiring routes. Paired with rapid prototyping and efficient SMT assembly services, it helps customers shorten R&D cycles and accelerate time-to-market. Whether for laboratory precision testing, industrial production line quality inspection, or electronic component factory testing, it serves as the "core hub" of test equipment with stable performance, helping customers reduce after-sales risks and enhance brand reputation!
